56015 - Toro 25" Standard Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) TRANSMISSION ASSEMBLY Parts Diagram

25" Standard Rear-Engine Riding Mower

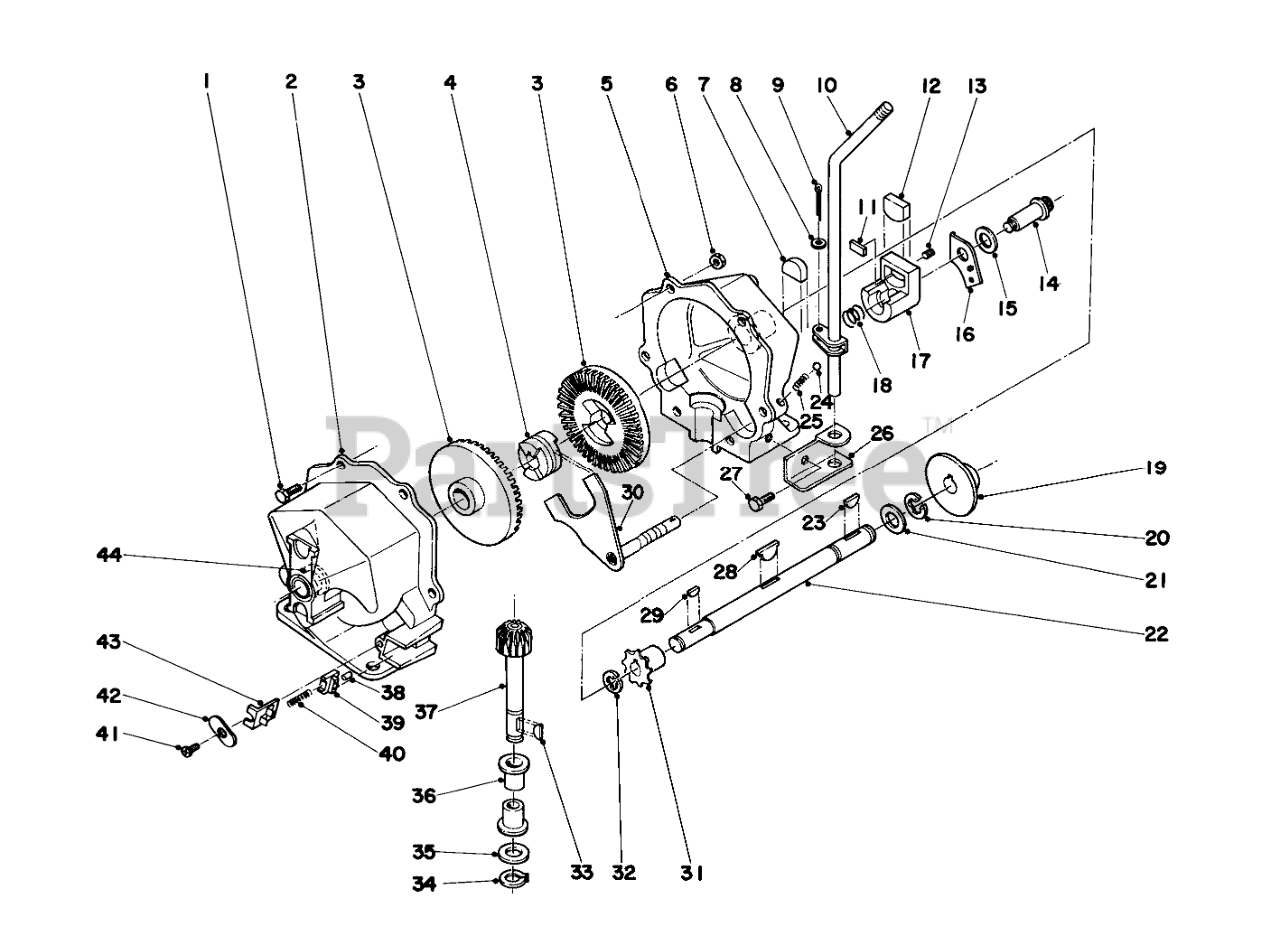

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Toro 2119-578

Bolt Hex Head

$

$

Currently unavailable

2

Toro 2119-610

Housing (Incl. Ref. #44)

$

$

Currently unavailable

3

Toro 2119-122

Bevel Gear

$

$

Not available

4

Toro 2119-461

Clutch Collar
(Superseded to 2119-570)

$167.99

$

Usually ships in 3-6 days

0

5

Toro 2119-609

Housing (Incl. Ref. #44)

$

$

Currently unavailable

6

Toro 2119-568

Locknut

$

$

Currently unavailable

7

Toro 2119-563

FRICTION PUCK

$

$

Not available

8

Toro 2119-574

Plain Washer

$

$

Currently unavailable

9

Toro 2119-573

Cotter Pin

$

$

Currently unavailable

10

Toro 2119-572

Shift Lever

$

$

Currently unavailable

11

Toro 2119-608

Spacer

$

$

Not available

12

Toro 2119-601

FRICTION PUCK

$

$

Not available

13

Toro 2119-588

Set Screw

$

$

Not available

14

Toro 2119-558

Shoulder Bolt

$

$

Not available

15

Toro 2119-589

Washer Kit

$

$

Not available

16

Toro 2119-559

Actuating Lever

$

$

Not available

17

Toro 2119-594

Brake Jaw

$

$

Not available

18

Toro 2119-564

Compression Spring

$

$

Not available

19

Toro 2119-562

BRAKE DISC

$

$

Not available

20

Toro 2119-550

RETAINING RING

$

$

Not available

21

Toro 2119-626

Washer Kit

$

$

Not available

22

Toro 2119-552

Output Shaft

$

$

Not available

23

Toro 2119-481

Woodruff Key

$

$

Not available

24

Toro 2119-565

Ball Detent

$

$

Not available

25

Toro 2119-595

Detent Spring

$

$

Currently unavailable

26

Toro 2119-575

Shift Lever Bracket

$

$

Not available

27

Toro 2119-576

Hex Head Bolt

$

$

Not available

28

Toro 2119-373

Hi Pro Key

$

$

Currently unavailable

29

Toro 2119-479

Woodruff Key

$

$

Not available

30

Toro 2119-597

Detent Shaft

$

$

Currently unavailable

31

Toro 2119-556

Sprocket

$

$

Not available

32

Toro 2119-606

Retaining Ring

$

$

Not available

Toro 2119-624

Input Shaft Assem. Kit (Incl. Ref. Nos. 33-37)

$

$

Currently unavailable

33

Woodruff Key

$

$

Not available

34

RING-Retaining

$

$

Not available

35

Plain Washer

$

$

Not available

36

Flange Bearing

$

$

Not available

37

Input Shaft

$

$

Not available

Toro 2119-598

Switch Assem. Kit (Incl. Ref. 38-40 & 43)

$

$

Not available

38

Actuating Pin

$

$

Not available

39

Carrier Contact Assem.

$

$

Not available

40

Compression Spring

$

$

Not available

41

Toro 2119-584

Self Tapping Screw

$

$

Currently unavailable

42

Toro 2119-599

Terminal Retainer Board

$

$

Currently unavailable

43

Terminal Board

$

$

Not available

44

Toro 2119-566

Bearing Flange

$

$

Not available

Toro 2119-603

Brake Service Kit (Incl. Ref. Nos. 7. 11-12 & 17)

Note: As Required

$

$

Not available
