56027 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1974) BODY AND SEAT ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

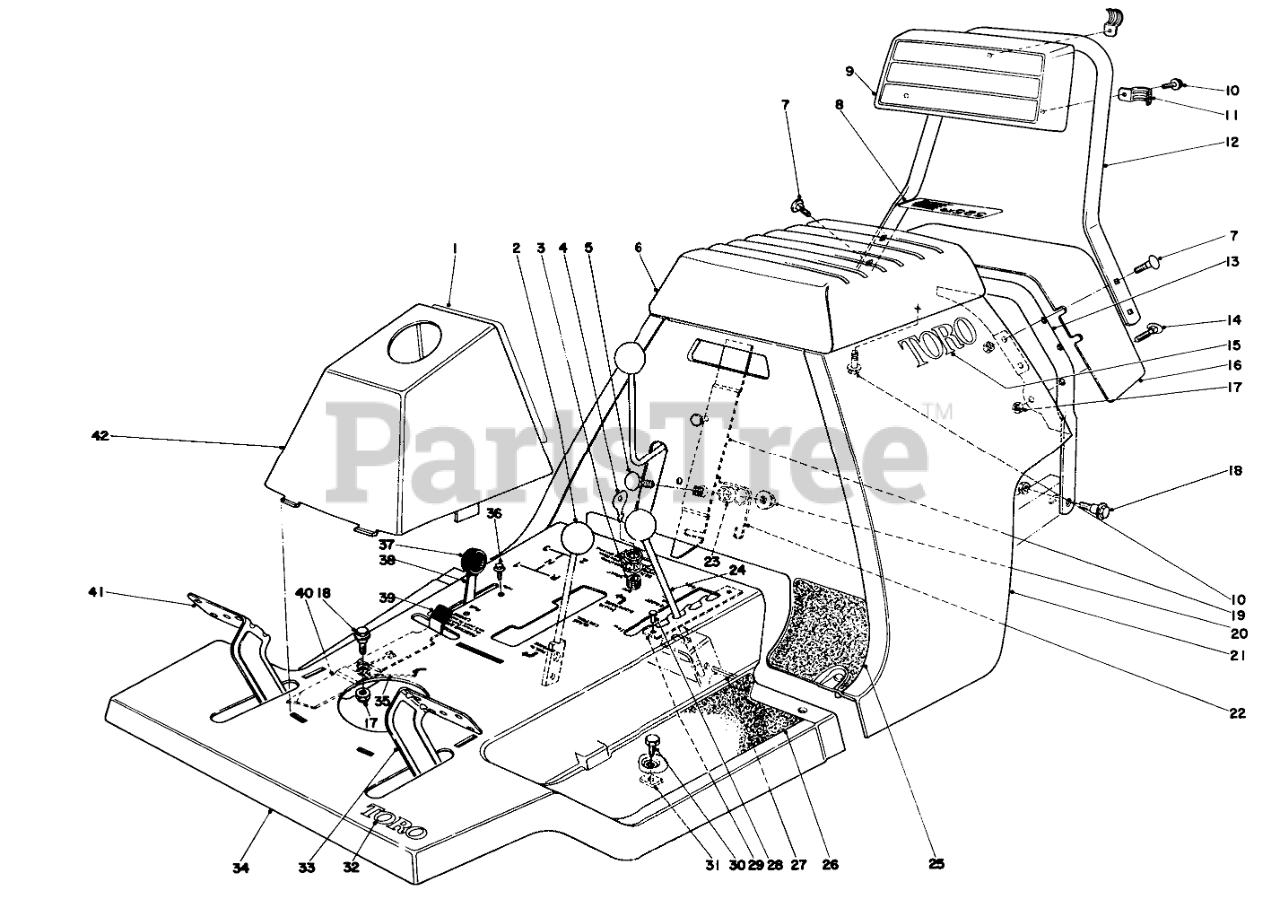

BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 19-2020

Decal Tower

$

$

Not available

2

Toro 233-22

KNOB-CONTROL

$22.99

$

Usually ships in 3-6 days

0

3

Toro 19-2450

ON-OFF SWITCH 21-8-468

$

$

Not available

Toro 23-0660

SWITCH-STARTER

Note: Not illustrated

$22.99

$

Usually ships in 3-6 days

0

4

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

5

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

6

Toro 12-5760

Seat

$

$

Not available

7

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 21-9340

Spring-Shoe Return, R.H.
(Superseded to 21-9430)

$20.99

$

In Stock, only 1 left!

0

Toro 21-9350

Decal, Rear Ext. (Model 56027 only)

Note: Not illustrated

$

$

Currently unavailable

9

Toro 17-1360

Backrest

$

$

Not available

10

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

11

Toro 2412-40

CLAMP-CONDUIT

$8.99

$

Usually ships in 3-6 days

0

12

Toro 18-8200

Handle Upper

$

$

Not available

13

Toro 17-9990

Handle Lower

$

$

Not available

14

Toro 6-6330

HANDLE SCREW

$

$

Not available

15

Toro 12-9100

Decal
(Superseded to 20-4690)

$7.99

$

Usually ships in 3-6 days

0

16

Toro 18-8270

Extension-Rear Body

$

$

Currently unavailable

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

18

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

19

Toro 19-2400

Handle Latch

$

$

Not available

20

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

21

Toro 19-2070

Rear Body

$

$

Not available

22

Toro 19-2390

Latch Return Spring

$

$

Not available

23

Toro 19-2410

Spacer

$

$

Not available

24

Toro 17-9630

Height of Cut Lever

$

$

Not available

25

Toro 21-6510

Heel Pad L.H.

$

$

Not available

Toro 21-6520

Heel Pad R.H.

Note: Not illustrated

$

$

Not available

26

Toro 21-6490

Foot Tread L.H.

$

$

Currently unavailable

Toro 21-6500

Foot Tread R.H.

Note: Not illustrated

$

$

Not available

27

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3290-365

Rivet

$

$

Currently unavailable

29

Toro 17-9610

Height Adjustment Plate

$

$

Not available

30

Toro 32104-110

SCREW-HH

$

$

Not available

31

Toro 3290-347

NUT-TINNERMAN

$6.49

$

Usually ships in 3-6 days

0

32

Toro 12-9140

DECAL

$

$

Currently unavailable

33

Toro 19-1860

Clutch Pedal

$

$

Not available

34

Toro 21-4680

Front Body (Incl. Ref. #28 & 29)

$

$

Not available

35

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

36

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

37

Toro 233-35

KNOB

$9.49

$

Usually ships in 3-6 days

0

38

Toro 21-4560

Throttle Control (Incl. Ref. #37)

$

$

Not available

39

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

40

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

41

Toro 19-1850

Brake Pedal

$

$

Not available

42

Toro 12-6290

Tower
(Superseded to 55-7103)

$

$

Not available

Toro 21-4530

Loose Parts Kit (Model 56022 only)

Note: Not illustrated

$

$

Currently unavailable

Toro 21-4540

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$160.99

$

Usually ships in 3-6 days

0

Toro 19-2800

Grass Bagging Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 17-4870

Trailer Sweeper 26"

Note: Not illustrated

$

$

Currently unavailable

Toro 17-4850

Seeder-Spreader

Note: Not illustrated

$

$

Currently unavailable

Toro 17-4860

Dump Cart

Note: Not illustrated

$

$

Currently unavailable
