56177 (12-32) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) BRAKE & CLUTCH ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

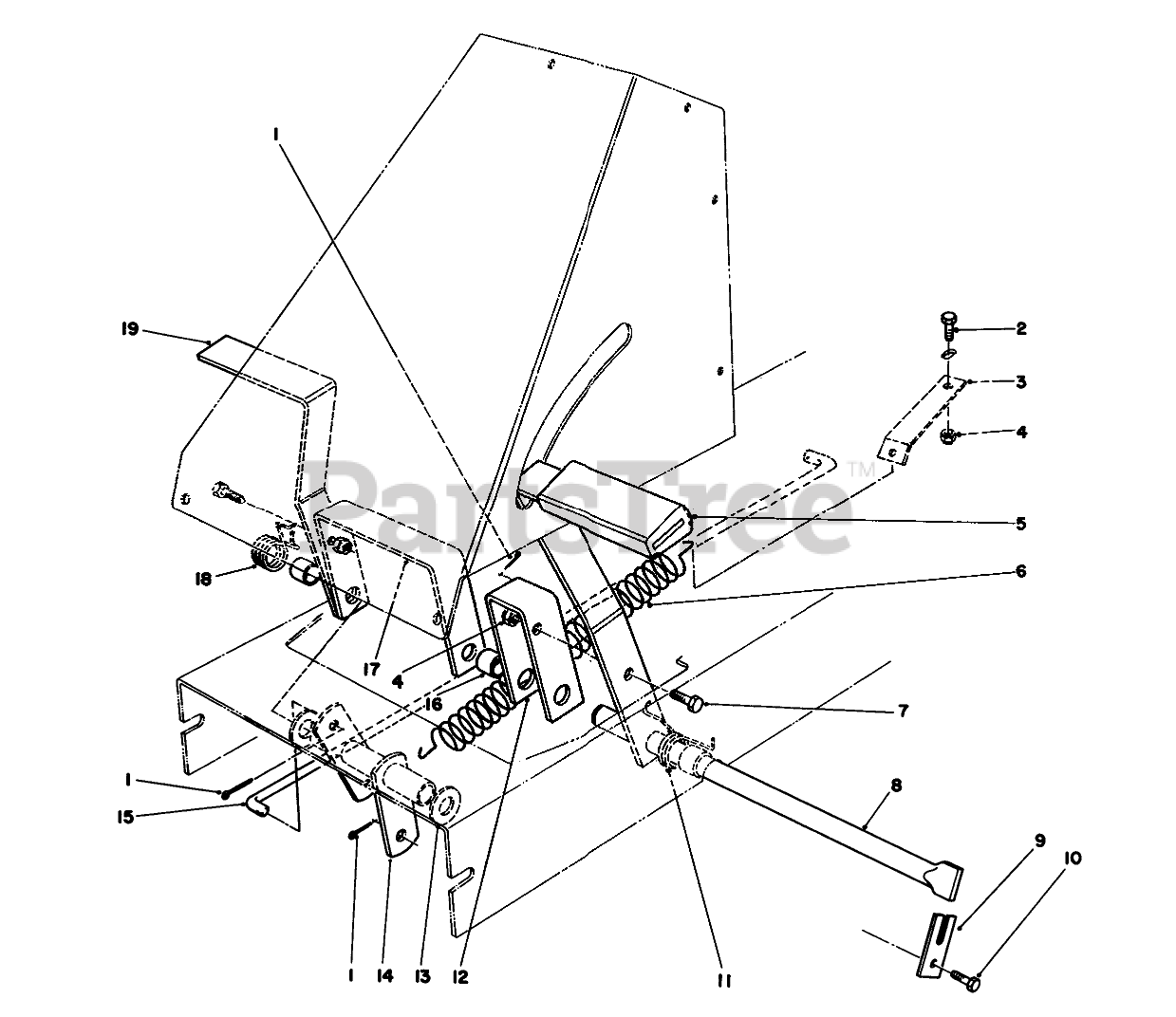

BRAKE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 56-7240

BRKT-SPRING RET

$9.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 65-2920

PAD-PEDAL

$33.99

$

Usually ships in 3-6 days

0

6

Toro 62-3930

SPRING-EXTENSION

$55.99

$

Usually ships in 3-6 days

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 47-0770

SHAFT-PEDAL PIVOT

$67.99

$

Usually ships in 3-6 days

0

9

Toro 47-0780

RETAINER-SHAFT

$

$

Not available

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 56-7070

SPRING-TORS CLUTCH

$32.99

$

Usually ships in 3-6 days

0

12

Toro 47-0560

Bracket-Clutch Pedal
(Superseded to 47-0560-03)

$

$

Not available

13

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

14

Toro 56-7650

Pivot Tube
(Superseded to 56-7650-03)

$

$

Not available

15

Toro 56-7570

ROD-ENGAGE

$32.99

$

Usually ships in 3-6 days

0

16

Toro 47-0570

SPACER-PEDAL

$

$

Not available

17

Toro 47-0550

Bracket-Brake Pedal
(Superseded to 47-0550-03)

$

$

Not available

18

Toro 56-7080

SPRING-TORS BRAKE

$23.99

$

Usually ships in 3-6 days

0

19

Toro 47-0540

Pedal
(Superseded to 47-0540-03)

$

$

Not available
