57101 - Toro 25" Lawn Tractor (SN: 008000001 - 008999999) (1968) HOOD GROUP Parts Diagram

25" Lawn Tractor

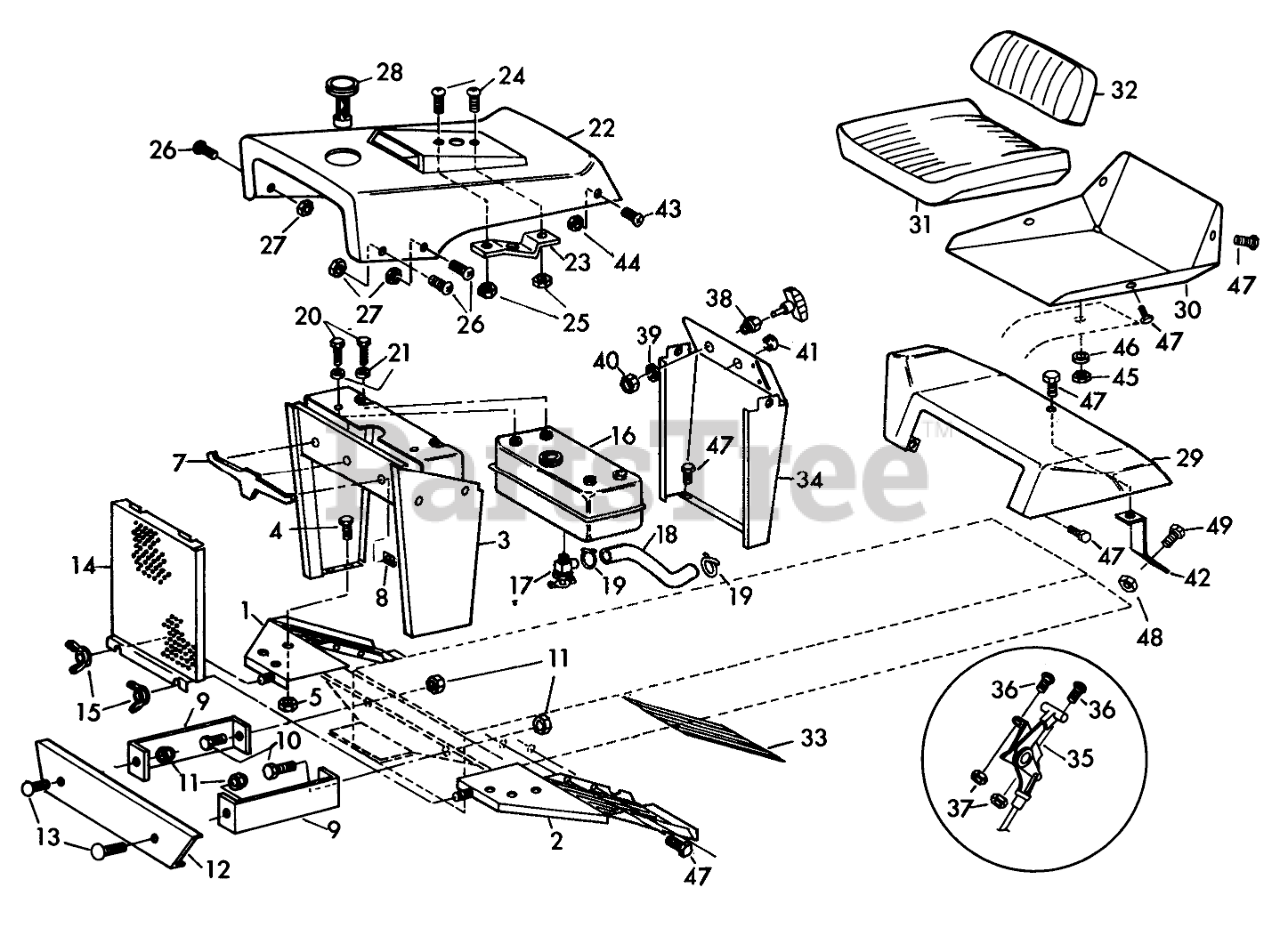

HOOD GROUP Parts Diagram

  • Title

1

Toro 7-3453

Right Front Fender

$

$

Currently unavailable

2

Toro 7-3454

Left Front Fender

$

$

Currently unavailable

3

Toro 7-3431

Front Hood Support

$

$

Currently unavailable

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

5

32152-4(s

Nut

$

$

Not available

6

Toro 321-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 7-3441

Bullshead

$

$

Currently unavailable

8

3290-275(s

Nut

$

$

Not available

9

Toro 7-3417

Bracket

$

$

Currently unavailable

10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 32152-1(s

Nut

$

$

Currently unavailable

12

Toro 7-3304

Bumper

$

$

Currently unavailable

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 7-3426

Grille

$

$

Currently unavailable

15

Toro 32103-18(s

Wing Nut

$

$

Currently unavailable

16

Toro 7-3516

Gas Tank

$

$

Currently unavailable

17

304-88(s

Shut Off Valve

$

$

Not available

18

Toro 7-0476

Gas Hose

$

$

Currently unavailable

19

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

20

Toro 321-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

21

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 7-3455

Hood

$

$

Currently unavailable

23

Toro 7-3215

Bracket

$

$

Currently unavailable

24

3258-158(S

Screw

$

$

Not available

25

32152-4(s

Nut

$

$

Not available

26

Toro 3274-32(s

Screw

$

$

Currently unavailable

27

Toro 32152-1(s

Nut

$

$

Currently unavailable

28

Toro 7-0214

Gas Gage

$

$

Currently unavailable

29

Toro 7-3318

Rear Fender

$

$

Currently unavailable

30

Toro 7-3234

Seat Frame

$

$

Currently unavailable

31

Toro 7-3350

Bottom Seat Cushion

$

$

Currently unavailable

32

Toro 7-3348

Back Cushion

$

$

Currently unavailable

33

Toro 7-3463

Foot Pad

$

$

Currently unavailable

34

Toro 7-3628

Rear Hood Support

$

$

Currently unavailable

35

Toro 7-0502

Throttle Control

$

$

Currently unavailable

36

32122-43(S

Screw

$

$

Not available

37

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

38

Toro 7-0245

Recoil Fitting

$

$

Currently unavailable

39

Toro 3255-3(s

Washer

$

$

Currently unavailable

40

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 13

0

41

Toro 2410-21(s

Plug Button

$

$

Currently unavailable

42

Toro 7-3470

Fender Support Bracket

$

$

Currently unavailable

43

Toro 3274-32(s

Screw

$

$

Currently unavailable

44

Toro 32152-1(s

Nut

$

$

Currently unavailable

45

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

46

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

47

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available
