57357 (11-44) - Toro Lawn Tractor (SN: 003000001 - 003999999) (1983) REAR BODY & SEAT ASSEMBLY Parts Diagram

Lawn Tractor

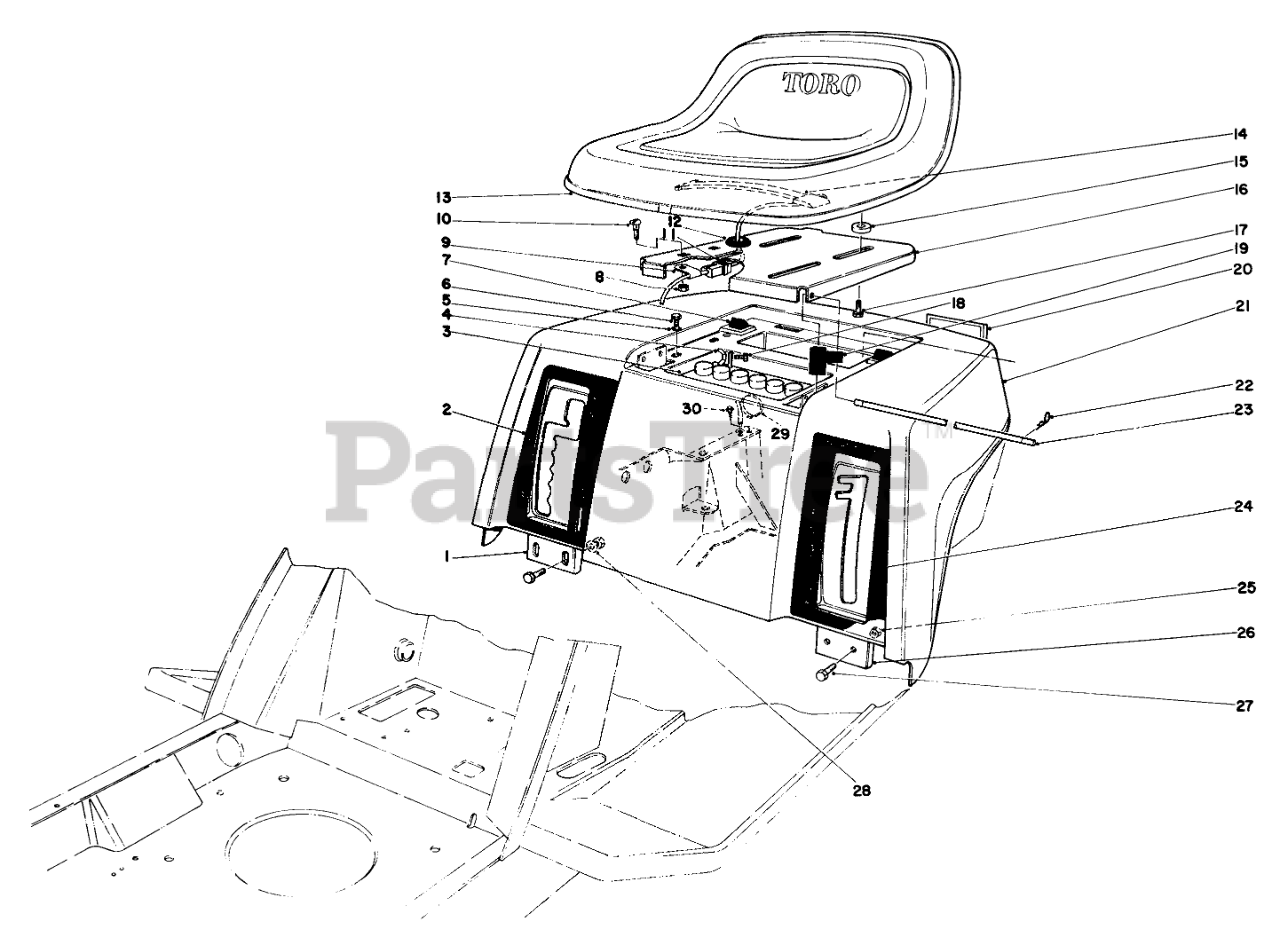

REAR BODY & SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 28-0370

DETENT PLATE B

$

$

Not available

2

Toro 36-2940

Decal Transmission

$

$

Not available

3

Toro 29-9870

Battery

$

$

Currently unavailable

4

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

5

Toro 5-1350

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

7

Toro 28-9440

SEAT BUMPER

$

$

Not available

8

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

9

Toro 2412-66

CLAMP

$

$

Not available

10

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Female Connector

$

$

Not available

12

Toro 237-100

GROMMET

$11.99

$

Usually ships in 3-6 days

0

13

Toro 38-0840

SEAT

$

$

Not available

14

Toro 38-1420

SWITCH-SEAT

$

$

Not available

15

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

16

Toro 36-1490

SEAT SUPPORT R

$

$

Not available

17

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 14

0

19

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

20

Toro 218-491

REFLECTOR

$

$

Not available

21

Toro 8-3229

Rear Body (Incl. Ref. #2 & 24)

$

$

Not available

22

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

23

Toro 28-2400

PIVOT-SEAT

$53.99

$

Usually ships in 3-6 days

0

24

Toro 36-2950

Decal Height of Cut

$

$

Not available

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

26

Toro 36-1950

Quadrant Height of Cut

$

$

Not available

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

30

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
