57360 (11-32) - Toro Lawn Tractor (SN: 005000001 - 005999999) (1985) AUGER ASSEMBLY 36" SNOWTHROWER ATTACHMENT MODEL NO. 59160 (OPTIONAL) Parts Diagram

Lawn Tractor

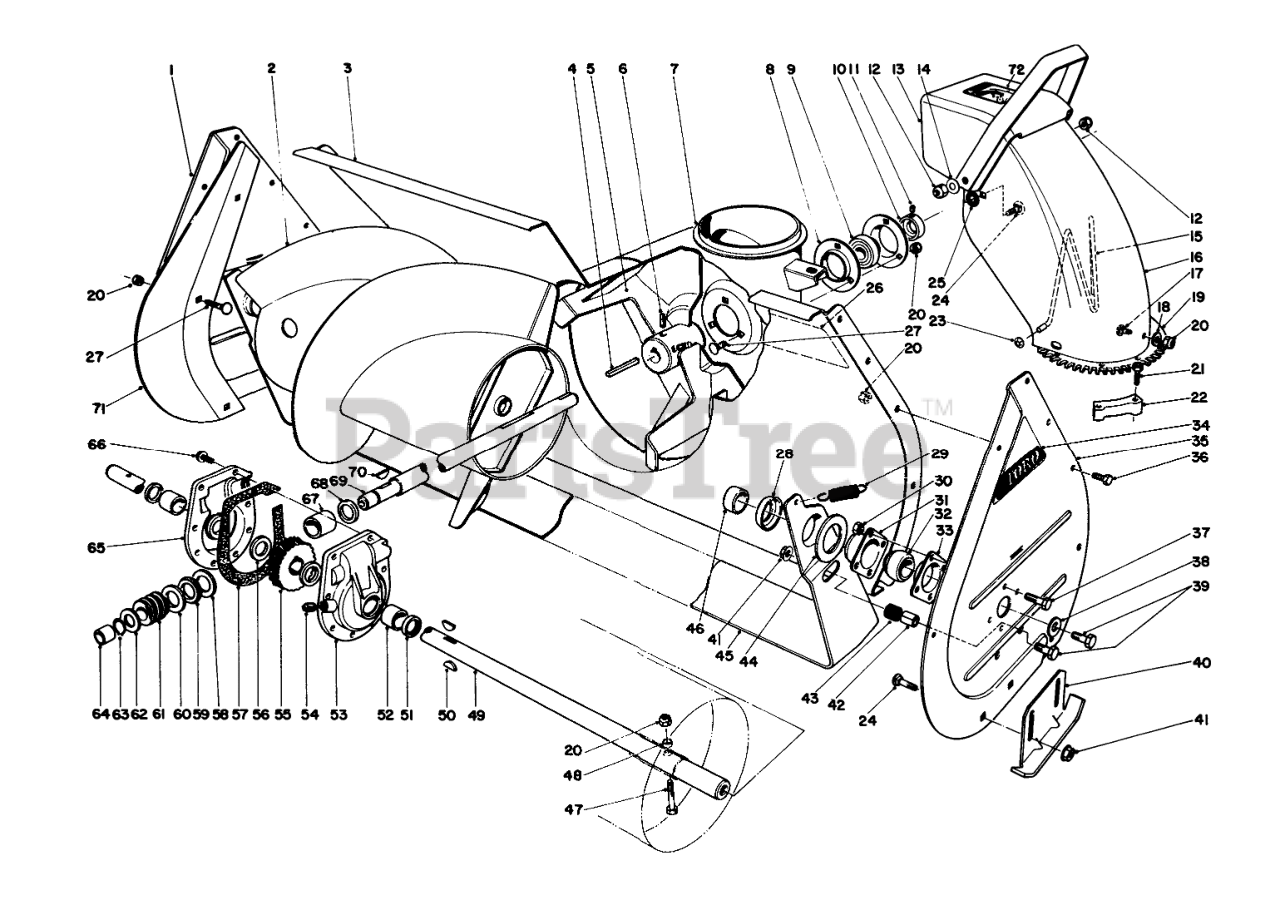

AUGER ASSEMBLY 36" SNOWTHROWER ATTACHMENT MODEL NO. 59160 (OPTIONAL) Parts Diagram

  • Title

1

Toro 39-6120

RH AUGER SIDE PLT R

$

$

Not available

2

Toro 26-6180

RH AUGER ASM - 32"

$836.99

$

Usually ships in 3-6 days

0

Toro 26-6190

LH AUGER WA 32" B

Note: Not illustrated

$836.99

$

Usually ships in 3-6 days

0

3

Toro 49-6960

Auger Housing

$

$

Not available

4

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

5

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$670.99

$

Usually ships in 3-6 days

0

6

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

7

Toro 25-5170

CHUTE RING

$

$

Not available

8

Toro 251-229

BRG FLANGE

$40.99

$

In Stock, only 1 left!

0

9

Toro 251-224

Bearing-Impeller (Incl. Ref. 10 & 11)

$58.99

$

Usually ships in 3-6 days

0

10

Toro 251-231

EXT LOCKING COLLAR

$33.99

$

In Stock, only 1 left!

0

11

Toro 3246-3

SCREW-HSH

$12.99

$

Usually ships in 3-6 days

0

12

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

13

Toro 11-7120

Deflector
(Superseded to 11-7120-01)

$117.99

$

Usually ships in 3-6 days

0

14

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

15

Toro 12-2040

WIRE-CHUTE

$

$

Not available

16

Toro 25-5440

Upper Chute
(Superseded to 92-6335-01)

$189.99

$

Usually ships in 3-6 days

0

17

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 19

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

22

Toro 25-5450

RETAINER-CHUTE

$36.99

$

In Stock, only 2 left!

0

23

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

24

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

25

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

26

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

27

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 26-6400

Positioner-Scraper

$

$

Not available

29

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 2 left!

0

30

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

31

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

32

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 11

0

33

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 3 left!

0

34

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

35

Toro 39-6130

LH AUGER SIDE PLT R

$

$

Not available

36

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

37

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

38

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

39

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Toro 20-2840

AUGER SKID WA R
(Superseded to 20-2840-01)

$41.99

$

In Stock, Qty 15

0

41

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

42

Toro 25-5140

SCRAPER STOP SPACER

$

$

Not available

43

Toro 25-5150

SCRAPER STOP CUSHION

$7.99

$

Usually ships in 3-6 days

0

44

Toro 20-0300

SCRAPER BLADE SPACER

$8.99

$

Usually ships in 3-6 days

0

45

Toro 19-9160

SCRAPER BLADE 32" R

$278.99

$

Usually ships in 3-6 days

0

46

Toro 26-6390

AUGER SPACER

$

$

Not available

47

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

48

Toro 25-5090

SPACER-HUB, AUGER

$10.99

$

In Stock, Qty 8

0

49

Toro 11-7010

32 AUGER SHAFT

$

$

Not available

50

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

51

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

52

Toro 256-237

BUSHING

$15.99

$

In Stock, only 2 left!

0

53

Toro 37-8860

Gear Case Bushing Assy.-L.H. (Incl. Ref. #51, 52)
(Superseded to 14-2459)

$151.99

$

Usually ships in 3-6 days

0

54

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

55

Toro 5-7180

GEAR-WORM, 27T

$158.99

$

In Stock, only 2 left!

0

56

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

57

Toro 51-0460

GASKET-CASE, GEAR

$7.99

$

In Stock, Qty 9

0

58

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

59

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

60

Toro 252-77

THRUST-WASHER

$10.99

$

In Stock, only 2 left!

0

61

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

62

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

63

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

64

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

65

Toro 37-8850

Gear Case Bushing Assy.-R.H. (Incl. Ref. #51, 52)
(Superseded to 14-2449)

$151.99

$

Usually ships in 3-6 days

0

66

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

67

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

68

Toro 237-87

RING-QUAD

$6.99

$

In Stock, only 2 left!

0

69

Toro 19-8540

SHAFT-IMPELLER

$353.99

$

Usually ships in 3-6 days

0

70

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

71

Toro 49-6620

Auger Housing Extension R.H.

$

$

Not available

Toro 49-6630

Auger Housing Extension L.H.

Note: Not illustrated

$

$

Not available

72

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

Toro 25-5280

Gear Case Assembly Complete

Note: Not illustrated

$

$

Not available
