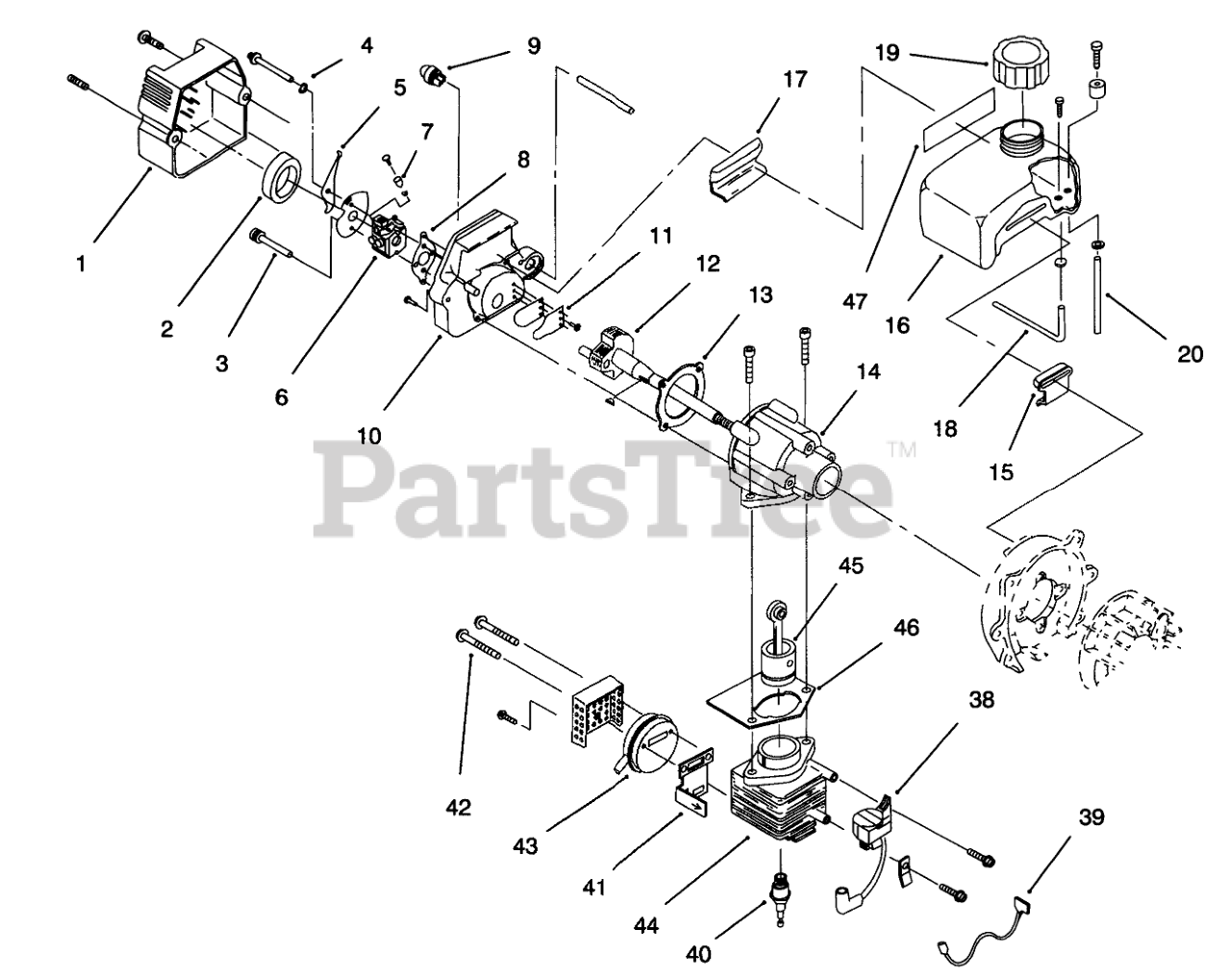

58356 - Toro Garden Cultivator (SN: 069000001 - 069999999) (1996) CARBURETOR, CYLINDER, CRANKCASE & FUEL TANK ASSEMBLIES Parts Diagram

Garden Cultivator

CARBURETOR, CYLINDER, CRANKCASE & FUEL TANK ASSEMBLIES Parts Diagram

  • Title

1

Toro 180349

Carburetor/Air Cleaner Asm. (Incl. Ref. #2)

$

$

Not available

2

Toro 180350

FILTER - AIR CLEANER

$14.99

$

In Stock, only 1 left!

0

3

Toro 180351

ASSEMBLY - MOUNTING BOLT

$

$

Not available

4

Toro 180352

WASHER - WAVEY

$

$

Not available

5

Toro 180353

LEVER - CHOKE & PLATE

$19.99

$

Usually ships in 3-6 days

0

6

Toro 180527

Carburetor
(Superseded to 181621)

$

$

Not available

7

Toro 682048

THROTTLE ADJ ASM

$10.99

$

Usually ships in 3-6 days

0

7

Toro 180092

ASM - THROTTLE ADJUSTMENT

$

$

Not available

8

Toro 610675

CARBURETOR GASKET(10 PER PACK)

$6.99

$

In Stock, only 1 left!

0

9

Toro 683974

PRIMER & HOSE ASM

$

$

Not available

10

Toro 180354

Carburetor Mount Asm. (Incl. Ref. #11-13)
(Superseded to 182063)

$

$

Not available

11

Toro 147573

ASSEMBLY - REED

$

$

Not available

12

Toro 181498

ASM - POWER SHAFT

$

$

Not available

13

Toro 612115

CARB MT GASKET (10-PK)

$

$

Not available

14

Toro 180026

Crankcase Service Asm. (Incl. Ref. #12)

$

$

Not available

15

Toro 145308

FRONT MOUNTING PAD

$

$

Not available

16

Toro 181581

Fuel Tank Asm. (Incl. Ref. #21-23)
(Superseded to 180046)

$

$

Not available

17

Toro 612134

REAR MOUNTING PAD

$

$

Not available

18

Toro 683976

FUEL RETURN LINE ASM

$26.99

$

Usually ships in 3-6 days

0

19

Toro 180000

FUEL TANK CAP

$

$

Not available

20

Toro 682039

FUEL LINE ASM

$

$

Not available

38

Toro 683390

Module Asm.
(Superseded to 181937)

$157.99

$

Usually ships in 3-6 days

0

39

Toro 181580

LEAD - WIRE

$

$

Not available

40

Toro 610311

SPARK PLUG

$3.49

$

In Stock, only 1 left!

0

41

Toro 180980

GASKET - EXHAUST

$7.49

$

In Stock, only 1 left!

0

42

Toro 181571

ASM - MUFFLER MTG BOLT

$

$

Not available

43

Toro 181572

Muffler Asm.
(Superseded to 181984)

$

$

Not available

44

Toro 180063

ASSEMBLY - CYLINDER
(Superseded to 181622)

$

$

Not available

45

Toro 684449

PISTON & ROD ASM
(Superseded to 753-04367)

$192.99

$

Usually ships in 3-6 days

0

46

Toro 610674

CYLINDER GASKET

$

$

Not available

47

Toro 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

Toro 153308

Kit-Carb. Repair, Walbro
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 180090

KIT - CARBUERTOR REPAIR

Note: Not illustrated

$

$

Not available

Toro 181069

GASKET-DIAPHRAGM REPAIR

Note: Not illustrated

$

$

Not available

Toro 180091

GASKET-DIAPHRAGM REPAIR

Note: Not illustrated

$

$

Not available

Toro 180027

Short Block Asm. (Inc. Ref. #12, 14, 44-46)

Note: Not illustrated

$

$

Not available
