58356 - Toro Garden Cultivator (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY Parts Diagram

Garden Cultivator

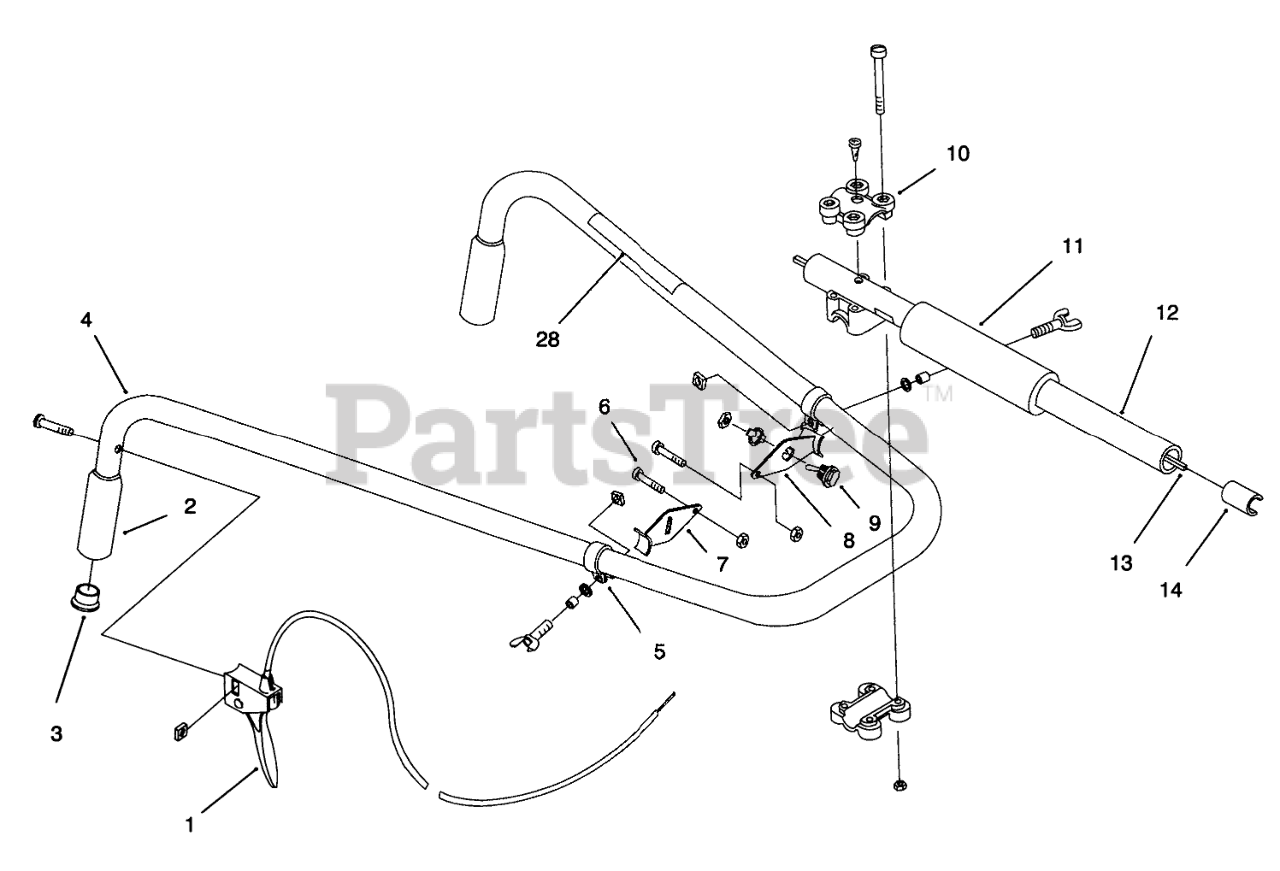

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 181573

ASM - THROTTLE

$

$

Not available

2

Toro 612831

HANDLE NITRILE GRIP

$24.99

$

Usually ships in 3-6 days

0

3

Toro 612021

TUBE CLOSURE

$

$

Not available

4

Toro 180943

DRIVE SHAFT ASM

$

$

Not available

5

Toro 181503

ASSEMBLY - CLAMP

$

$

Not available

6

Toro 147501

HARDWARE-ENGINE MTG BRKT

$

$

Not available

7

Toro 181574

BRACKET- RH ENGINE MTG

$53.99

$

Usually ships in 3-6 days

0

8

Toro 181504

BRACKET - LH ENGINE MOUNT

$

$

Not available

9

Toro 682035

SWITCH ASM

$

$

Not available

10

Toro 683295

HANDLE BRACKET ASM

$62.99

$

Usually ships in 3-6 days

0

11

Toro 181575

GRIP

$

$

Not available

12

Toro 181576

Drive Shaft Housing Asm.
(Superseded to 180943)

$

$

Not available

13

Toro 181577

SHAFT - FLEXIBLE DRIVE

$

$

Not available

14

Toro 181578

SLEEVE - RETAINER

$

$

Not available

28

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available
