59111 - Toro Easy Empty Grass Catcher (SN: 008000001 - 008999999) (1988) TRANSMISSION MODEL 770A Parts Diagram

Easy Empty Grass Catcher

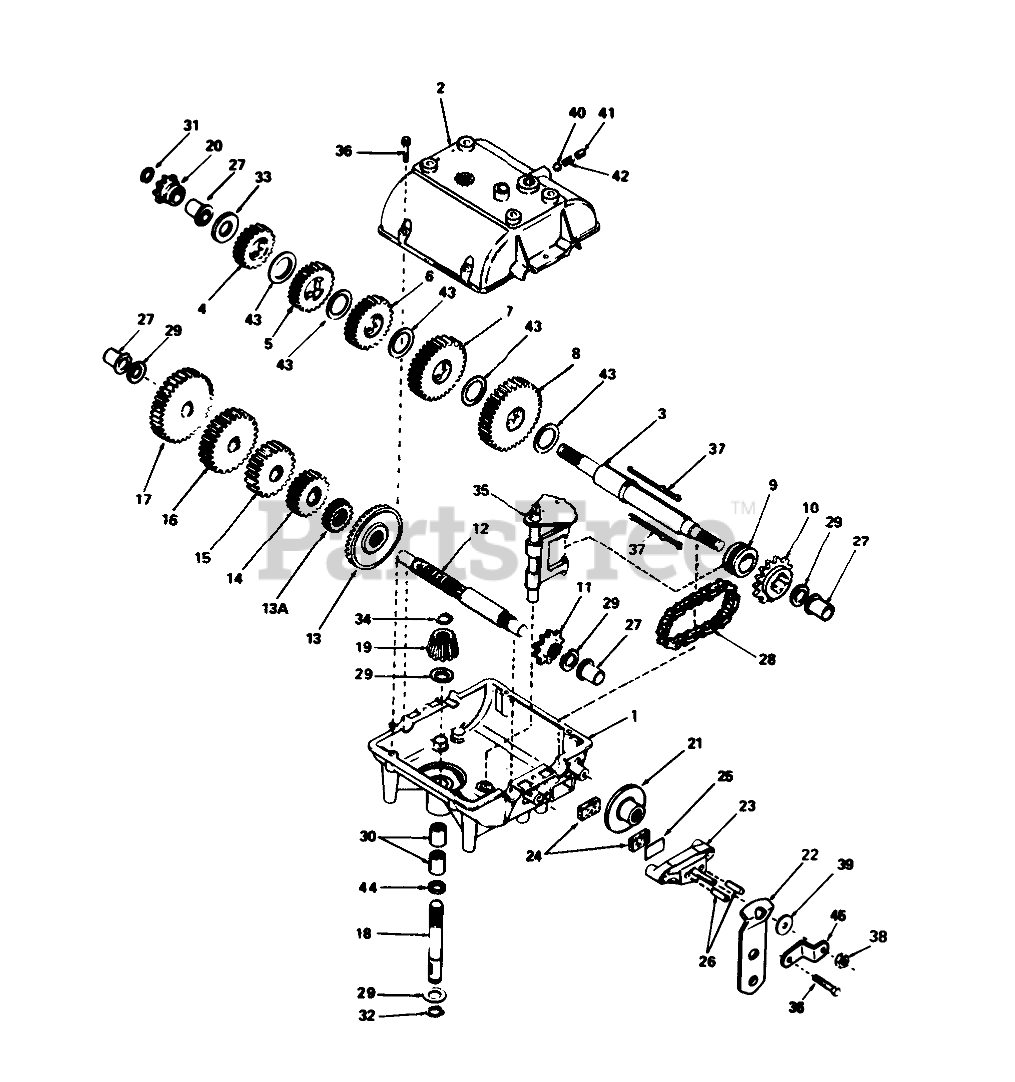

TRANSMISSION MODEL 770A Parts Diagram

  • Title
1

Toro 770061

Case-Transmission

$

$

Currently unavailable

2

Toro 772083

Cover-Transmission

$

$

Currently unavailable

3

Toro 776161

Shaft-Output & Brake

$

$

Currently unavailable

4

Toro 778121A

Gear-Spur 20 teeth

$

$

Currently unavailable

5

Toro 778122A

Gear-Spur (22 teeth)

$

$

Currently unavailable

6

Toro 778123A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

7

Toro 778124A

Gear-Spur, 30 Teeth

$

$

Currently unavailable

8

Toro 778125

Gear-Spur, 35 Teeth

$

$

Currently unavailable

9

Toro 784266

Collar-Shift

$

$

Currently unavailable

10

Toro 786083

Sprocket-18 Teeth

$

$

Currently unavailable

11

Toro 786082

Sprocket-9 Teeth

$

$

Currently unavailable

12

Toro 776134

Countershaft

$

$

Currently unavailable

13

Toro 778137A

Gear-Bevel (42Teeth)

$

$

Currently unavailable

13A

Toro 778136

Gear-Spur 15 Teeth

$

$

Currently unavailable

14

Toro 778126A

Gear-Spur, 20 Teeth

$

$

Currently unavailable

15

Toro 778127A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

16

Toro 778128A

Gear-Spur (28 teeth)

$

$

Currently unavailable

17

Toro 778129A

Gear-Spur (30 teeth)

$

$

Currently unavailable

18

Toro 776135

Shaft-Input

$

$

Currently unavailable

19

Toro 778113A

Bevel Pinion-Input

$

$

Currently unavailable

20

Toro 786048

Sprocket (8 teeth)

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Toro 790013

Lever-Brake

$

$

Currently unavailable

23

Toro 790025

Nozzle-Carburetor

$

$

Currently unavailable

24

Toro 790006

Brake Pad

$

$

Currently unavailable

25

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

26

Toro 786026

Dowel Pin

$

$

Currently unavailable

27

Toro 780105A

Bushing-Flange

$

$

Currently unavailable

28

Toro 786081

Chain-Roller #41

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

30

Toro 780086

Bearing-Needle

$

$

Currently unavailable

31

Toro 792072

Piston Asm (.020 O S)

$

$

Currently unavailable

32

Toro 792035

Ring-Snap

$

$

Currently unavailable

33

Toro 780109

Washer

$

$

Currently unavailable

34

Toro 788040

Ring-Retainer

$

$

Currently unavailable

35

Toro 784267

Rod and Fork ASM

$

$

Currently unavailable

36

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

37

$

$

Currently unavailable

38

Toro 792075

Locknut

$

$

Currently unavailable

39

Toro 792076

Washer

$

$

Currently unavailable

40

Toro 792077

Ball-Steel

$

$

Currently unavailable

41

Toro 792078

Screw-Set

$

$

Currently unavailable

42

Toro 792079

Spring

$

$

Currently unavailable

43

Toro 780108

Washer

$

$

Currently unavailable

44

Toro 792001

O Ring

$

$

Currently unavailable

45

Toro 786086

Bracket

$

$

Currently unavailable
