59111 - Toro Easy Empty Grass Catcher (SN: 009000001 - 009999999) (1989) FRONT TOWER ASSEMBLY Parts Diagram

Easy Empty Grass Catcher

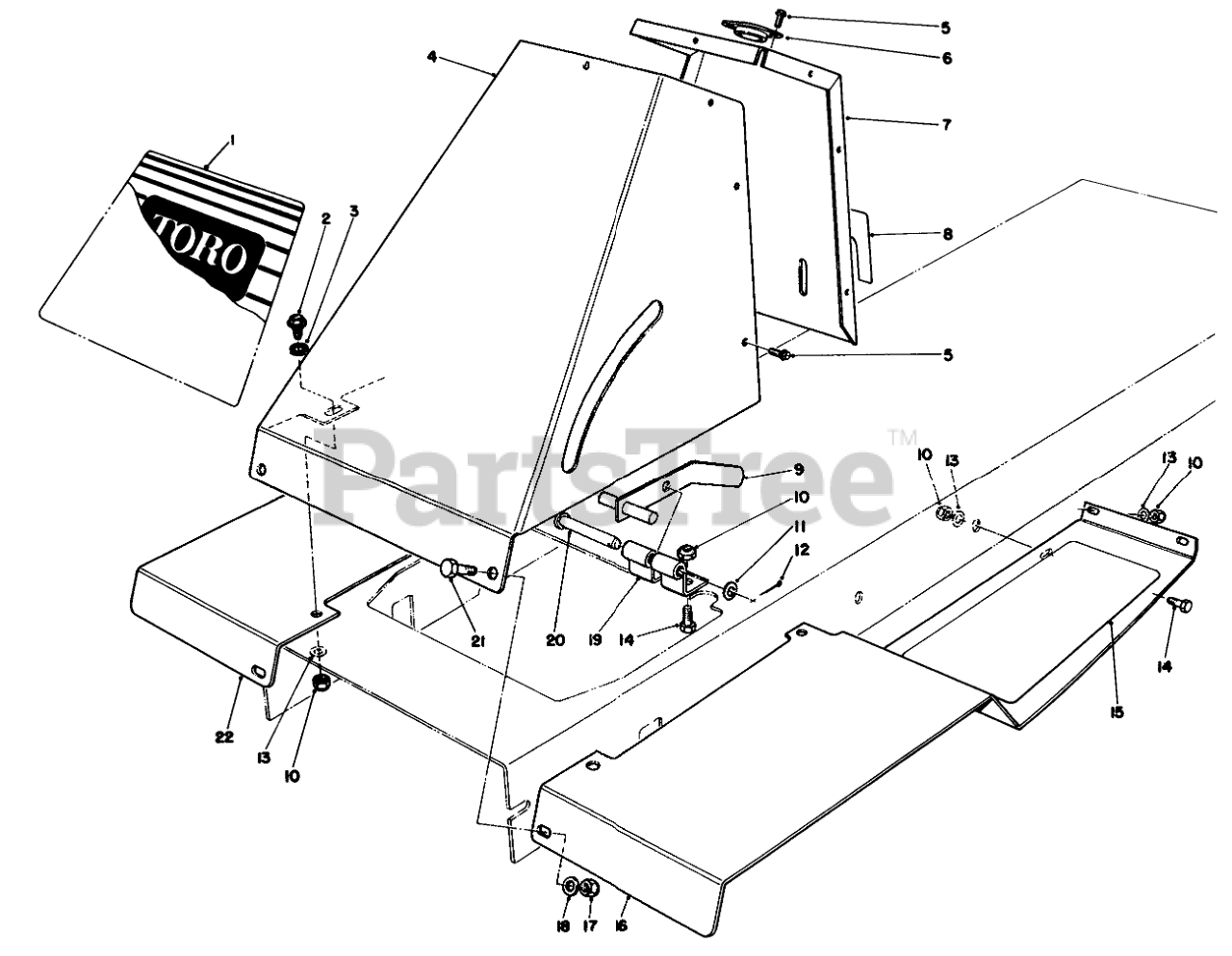

FRONT TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 66-6700

Decal-Toro 8-32

$

$

Not available

2

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

3

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

4

Toro 56-7130

Tower-Front
(Superseded to 56-7130-01)

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 56-7170

GUIDE-STRG SHAFT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 56-7140

Tower-Rear
(Superseded to 56-7140-03)

$

$

Not available

8

Toro 56-7810

PARK BRAKE DECAL

$

$

Not available

9

Toro 47-1290

PARKING BRAKE WA B

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 47-1440

FOOT TREAD L.H.

$

$

Not available

16

Toro 47-0940

Footrest-LH
(Superseded to 47-0940-01)

$

$

Not available

17

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 47-2060

Bracket-Parking Brake
(Superseded to 47-2060-03)

$

$

Not available

20

Toro 283-52

PIN-CLEVIS

$12.99

$

In Stock, only 1 left!

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

22

Toro 47-0930

Footrest-RH.
(Superseded to 47-0930-01)

$

$

Not available

Toro 12-8809

Loose Parts

$

$

Not available
