59152 - Toro 52" Side-Discharge Mower Deck, no frame, ProLine 118 CARRIER FRAME Parts Diagram

52" Side-Discharge Mower Deck, no frame, ProLine 118

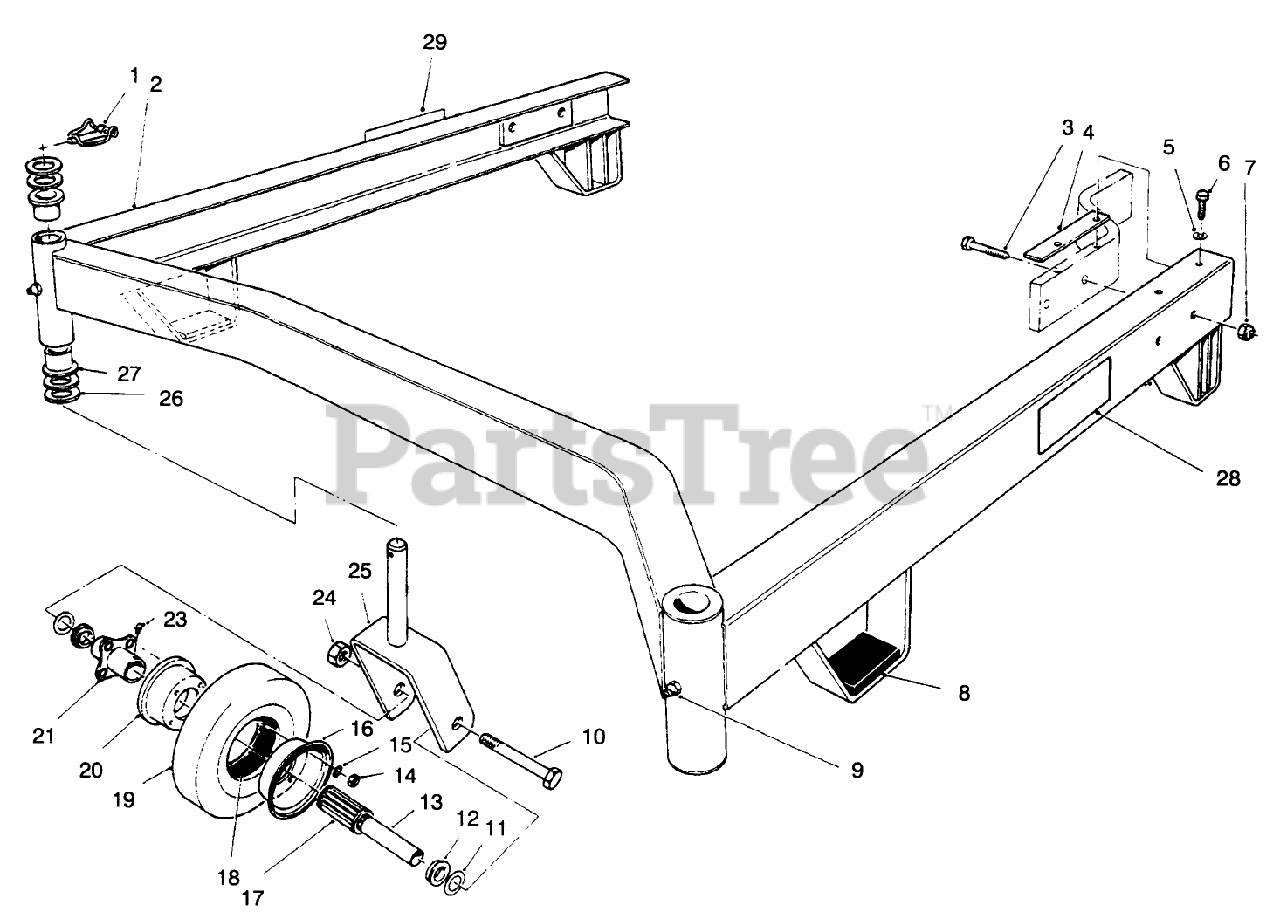

CARRIER FRAME Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 55-4630

Suspension Assembly-52" (Incl. Ref. #9, & 27)
(Superseded to 94-4165)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 62-6980

SHIM-CARRIER

$15.99

$

Usually ships in 3-6 days

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

7

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 20+

0

8

Toro 74-0340

CUSHION-RUBBER

$4.99

$

In Stock, only 4 left!

0

9

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 18

0

10

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 2 left!

0

11

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 62-5580

BEARING-OUTSIDE

$6.99

$

In Stock, Qty 20+

0

13

Toro 68-8980

SPANNER-TIRE

$8.99

$

In Stock, Qty 16

0

14

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, only 2 left!

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 68-8930

MALE WHEEL HALF

$21.99

$

In Stock, only 1 left!

0

17

Toro 62-5570

BEARING-ROLLER

$20.99

$

Usually ships in 3-6 days

0

18

Toro 68-8950

TUBE-INNER (W/VALVE)

$29.99

$

Usually ships in 3-6 days

0

19

Toro 68-8960

TIRE

$64.99

$

In Stock, only 1 left!

0

20

Toro 68-8920

FEMALE WHEEL HALF

$20.99

$

In Stock, only 1 left!

0

21

Toro 68-8940

HUB-CENTER

$30.99

$

In Stock, only 2 left!

0

23

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

24

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

25

Toro 68-8900

Castor Fork
(Superseded to 68-8900-01)

$113.99

$

Usually ships in 3-6 days

0

26

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

27

Toro 28-9290

Bushing
(Superseded to 94-1291)

$10.99

$

In Stock, Qty 20+

0

28

Toro 74-0940

DECAL-HOC, RH

$

$

Not available

29

Toro 68-8360

DECAL-HOC, LH

$23.99

$

Usually ships in 3-6 days

0

Toro 13-3869

Caster Wheel Assembly (Incl. Ref. #11-21)
(Superseded to 68-8970)

$127.99

$

Usually ships in 3-6 days

0
