59155 - Toro Mulcher Kit for 32" Mower BRIGGS & STRATTON MODEL 191707-5676-01 (MODEL 57300) Parts Diagram

Mulcher Kit for 32" Mower

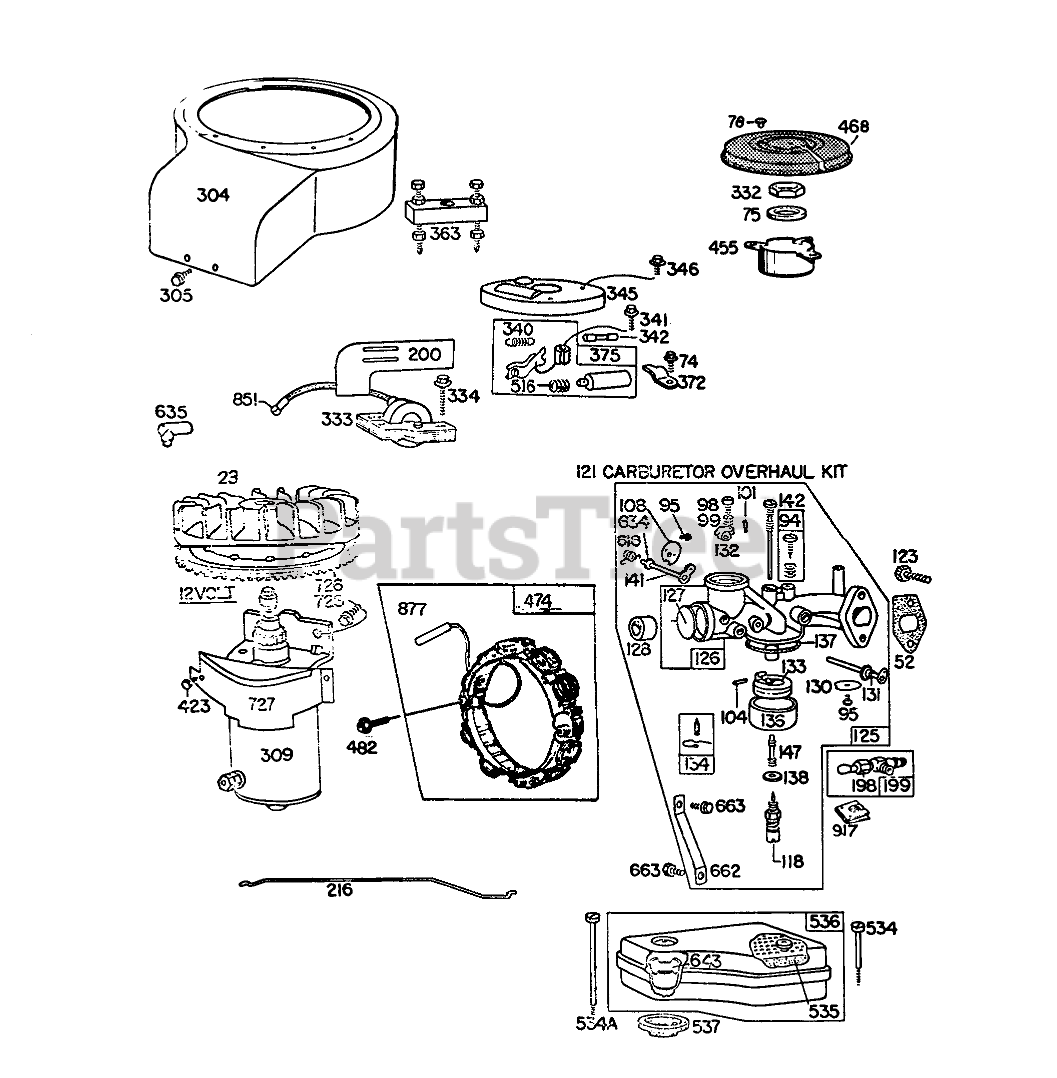

BRIGGS & STRATTON MODEL 191707-5676-01 (MODEL 57300) Parts Diagram

  • Title

23

Briggs & Stratton 391983

Flywheel and Ring Gear Assy.-Magneto. For use on engines WITH ALTERNATOR. (Includes aluminum ring gear). For use only with starter motors with Plastic Drive Gear.

$

$

Not available

52

Briggs & Stratton 270824

Gasket-Carb. Mtg.
(Superseded to 272554S)

$5.49

$

In Stock, Qty 20+

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

78

Briggs & Stratton 93805

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$3.99

$

In Stock, only 3 left!

0

108

Briggs & Stratton 222010

Valve

$7.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 391233

Valve-Needle
(Superseded to 396795)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$17.99

$

In Stock, only 4 left!

0

121

Briggs & Stratton 299852

Carburetor OverhauI Kit

$

$

Not available

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 390811

Carburetor Assembly
(Superseded to 491590)

$249.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 299851

Body Assy. Carburetor

$94.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211682

Venturi-Carburetor

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 221986

Valve-Throltle

$7.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 391512

Shaft & Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$13.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

$7.99

$

In Stock, Qty 16

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$3.49

$

In Stock, Qty 10

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$4.99

$

In Stock, Qty 11

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 230932

Screw-Nozzle

Note: Included in Carburetor Overhaul Kit-Part No. 299852

$

$

Not available

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$28.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 261117

Link-Choke

$6.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 391379

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

309

Motor-Starting (see page 36 for parts breakdown)

$

$

Not available

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 298968

Armature Assembly

$

$

Not available

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, only 1 left!

0

345

Briggs & Stratton 222117

Cover-Breaker Point

$5.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19165

Flywheel Puller

$25.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

Briggs & Stratton 299061

Ignition Kit Includes:
(Superseded to 294628)

$

$

Not available

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, only 1 left!

0

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

423

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Flush Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 392595

Alternator
(Superseded to 592829)

$102.99

$

In Stock, only 4 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93622

Screw Air Cleaner

$6.49

$

In Stock, only 2 left!

0

534A

Briggs & Stratton 93323

Screw-AirCleaner

$7.49

$

In Stock, only 3 left!

0

535

Briggs & Stratton 270528

Element-Air Cleaner
(Superseded to 270528S)

$15.99

$

Usually ships in 2-12 days

0

536

Briggs & Stratton 391399

Cleaner Assy.-Air Uses:
(Superseded to 390379)

$37.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 270539

Gasket-Air Cleaner

$8.99

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 261116

Spring Choke

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 4 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 17

0

643

Briggs & Stratton 222149

Cup-Air Cleaner

$4.49

$

Usually ships in 2-12 days

0

662

Briggs & Stratton 222027

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, Qty 5

0

726

Briggs & Stratton 392134

Gear-Ring (Aluminum) (Includes Mtg. Parts For use only with Starter Motors with Plastic Drive Gear)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 390233

Starter Pinion Cover
(Superseded to 395405)

$

$

Not available

728

Briggs & Stratton 93523

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393537

Connector-Wire, Tri Circuit

$

$

Not available

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

In Stock, only 1 left!

0
