59160 - Toro 36" Snow Thrower (SN: 004000001 - 004999999) (1984) CHUTE CONTROL ASSEMBLY Parts Diagram

36" Snow Thrower

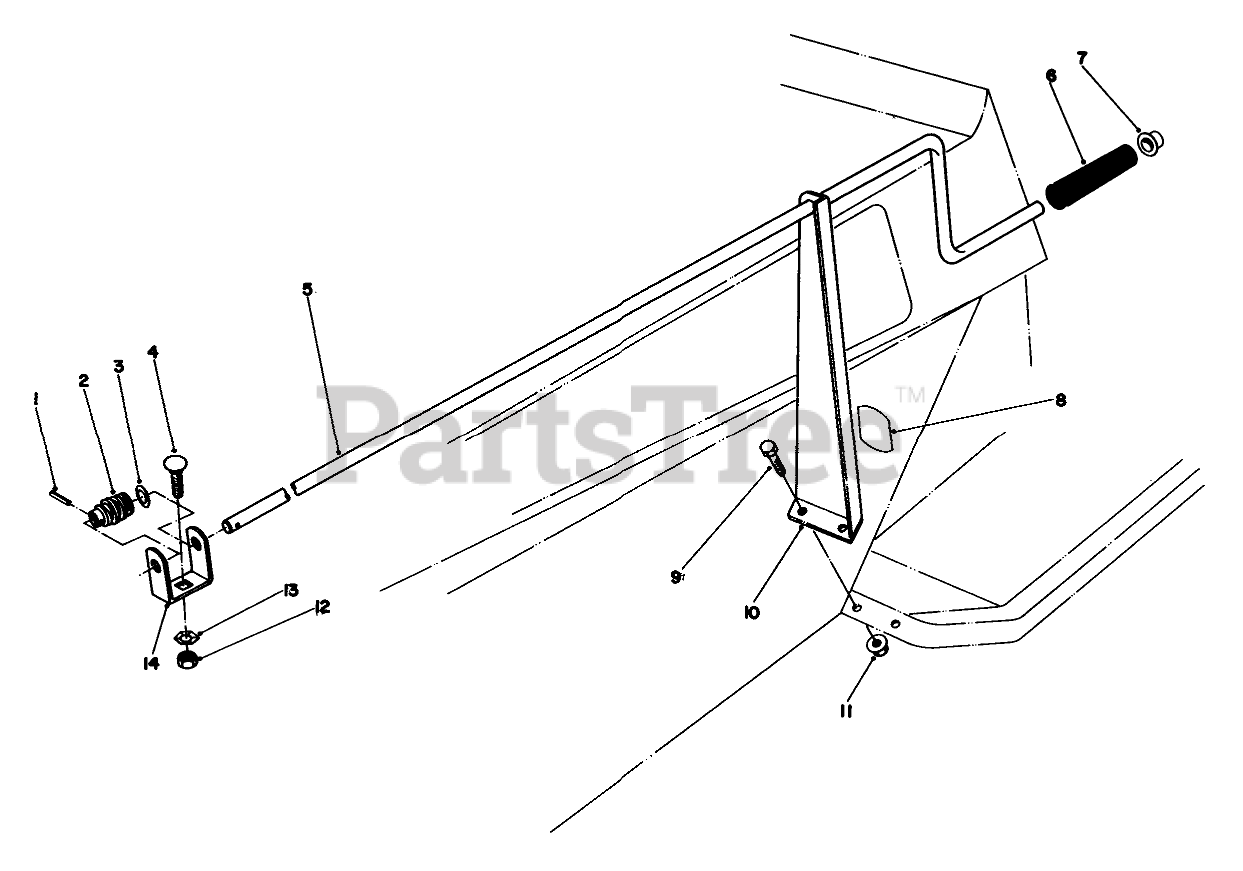

CHUTE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

2

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

3

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 12

0

5

Toro 41-8640

Chute Control Rod

$

$

Not available

6

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

7

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

8

Toro 29-6370

CHUTE DECAL

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 49-6730

CHUTE CONT BRKT B

$

$

Not available

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

14

Toro 49-6720

WORM BRKT B
(Superseded to 49-6720-03)

$24.99

$

Usually ships in 3-6 days

0
