61-16KS01 (C-160) - Toro Lawn Tractor (1976) 15.000 SEATS, DECALS, MISC. TRIM Parts Diagram

Lawn Tractor

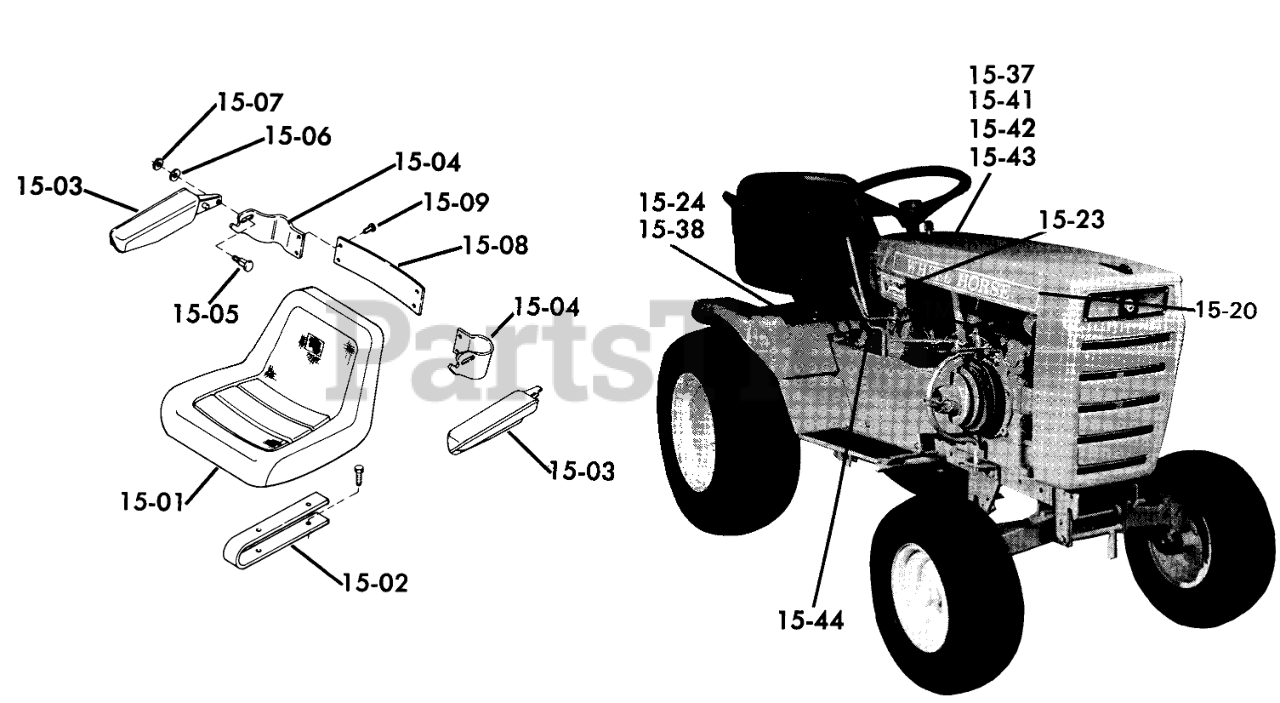

15.000 SEATS, DECALS, MISC. TRIM Parts Diagram

  • Title

15-01

Toro 105258

Seat
(Superseded to 100-6097)

$

$

Not available

15-02

Toro 105284

Seat Spring

$

$

Not available

15-02

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

15-02

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

15-02

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

15-02

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

15-03

Toro 105276

Arm R.H.

$

$

Not available

15-03

Toro 105277

Arm L.H.

$

$

Currently unavailable

15-04

Toro 105278

Bracket R.H.

$

$

Not available

15-04

Toro 105279

Bracket L.H.

$

$

Not available

15-05

Toro 105280

Bolt (Slide Pivot)

$

$

Not available

15-06

Toro 105281

Washer, Bellville

$

$

Not available

15-07

Toro 105282

Nut (Pivot)

$

$

Not available

15-08

Toro 105275

Bracket-Arm Brace

$

$

Not available

15-09

Toro 910865

Screw
(Superseded to 32122-14)

$2.49

$

In Stock, Qty 16

0

15-20

Toro 102831

Decal
(Superseded to 108851)

$33.99

$

Usually ships in 3-6 days

0

15-23

Toro 103897

DECAL C 160

$

$

Not available

15-24

Toro 103174

DECAL-WHEEL HORSE

$

$

Not available

15-37

Toro 103324

Lockwasher

$

$

Currently unavailable

15-38

Toro 103811

Decal-Maintenance

$

$

Not available

15-41

Toro 104074

DECAL PTO SPD. CONT

$

$

Not available

15-42

Toro 102948

DECAL-HAND LIFT

$

$

Not available

15-43

Toro 105261

Decal-Caution

$

$

Currently unavailable

15-44

Toro 105532

Decal-Parking Brake

$

$

Not available

15-44

Toro 6630

Decal

$

$

Currently unavailable

15-23

Toro 103895

Decal

$

$

Currently unavailable
