61-20RG01 (D-250) - Toro Lawn Tractor (1977) CYLINDER HEAD COVER AND INTAKE MANIFOLD Parts Diagram

Lawn Tractor

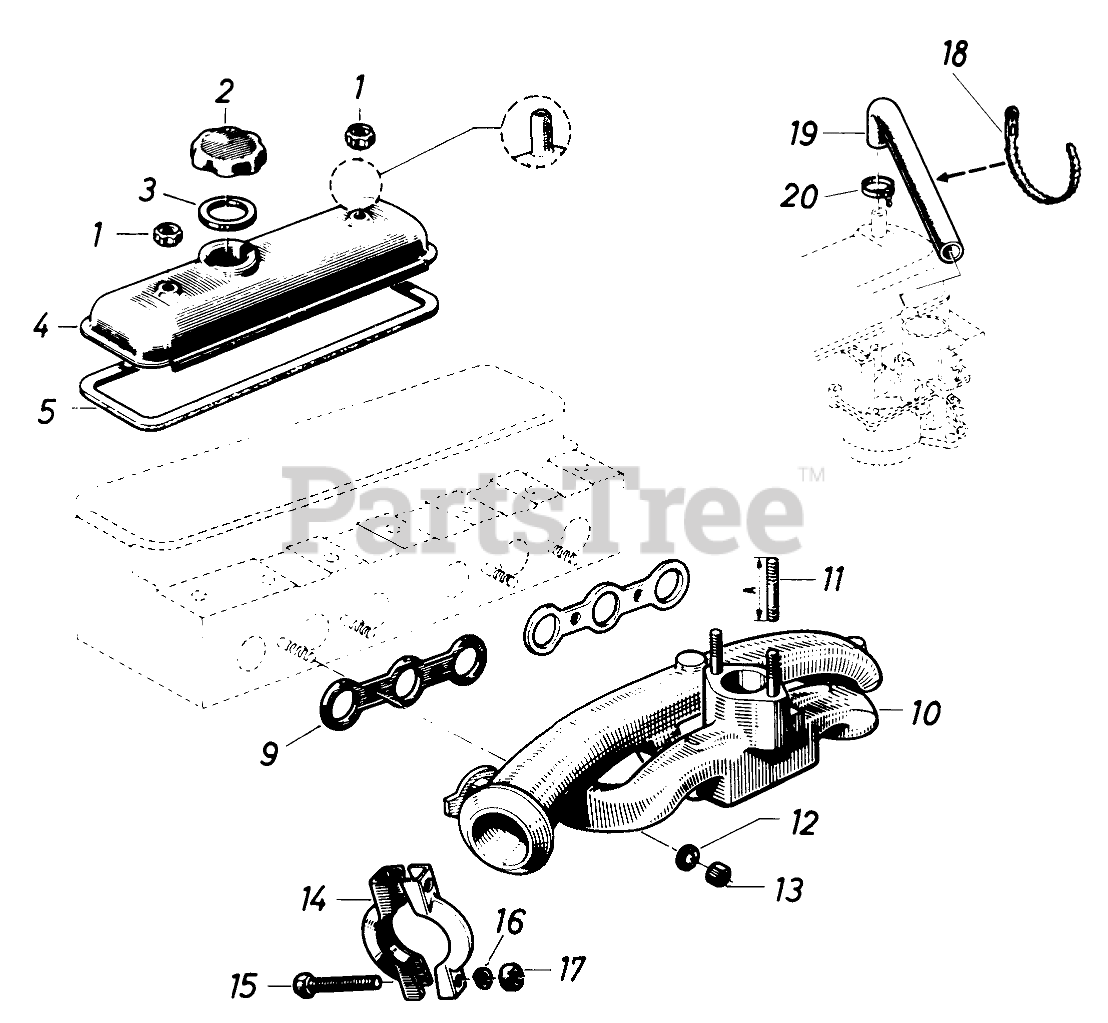

CYLINDER HEAD COVER AND INTAKE MANIFOLD Parts Diagram

  • Title

1

Toro 250613

Nut

$

$

Not available

2

Toro 250611

COVER

$

$

Not available

3

Toro 250612

Gasket

$

$

Not available

4

Toro 250614

Valve Cover

$

$

Not available

5

Toro 250615

Gasket

$

$

Not available

9

Toro 250617

Gasket

$

$

Not available

10

Toro 250524

Intake Manifold

$

$

Not available

11

Toro 250598

Stud

$

$

Not available

12

Toro 250618

Lock Washer

$

$

Not available

13

Toro 250619

Nut

$

$

Not available

14

Toro 250526

Clamp

$

$

Not available

15

Toro 250877

Screw

$

$

Not available

16

Toro 251356

Lock Washer

$

$

Currently unavailable

17

Toro 250878

Nut

$

$

Not available

18

Toro 250616

Fastening Strap

$

$

Not available

19

Toro 250609

Intake Hose

$

$

Not available

20

Toro 250610

Clamp

$

$

Not available
