61-20RG01 (D-250) - Toro Lawn Tractor (1977) FENDER AND SEAT ASSEMBLIES AND TOOL KIT Parts Diagram

Lawn Tractor

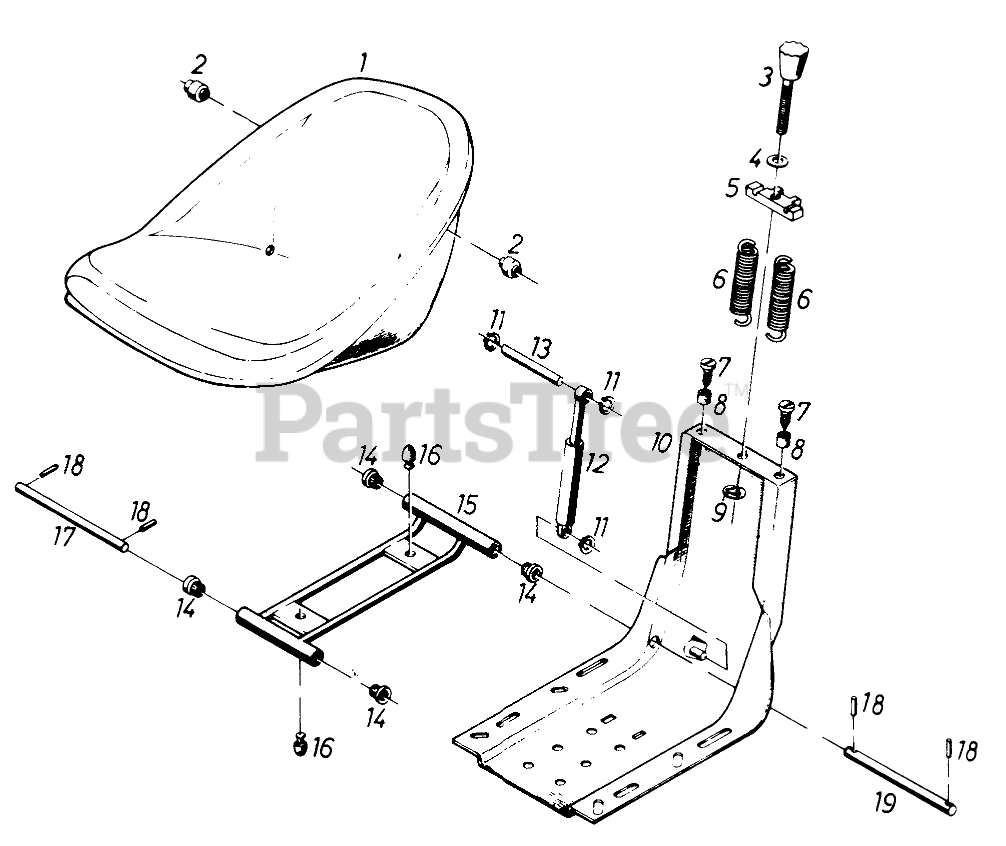

FENDER AND SEAT ASSEMBLIES AND TOOL KIT Parts Diagram

  • Title

Toro 251374

Seat and Seat Support Assy.

$

$

Currently unavailable

1

Toro 250352

Seat

$

$

Not available

2

Toro 250999

Roller

$

$

Not available

3

Toro 251005

Adjusting Spindle

$

$

Not available

4

Toro 250426

Washer

$

$

Not available

5

Toro 250998

Spring Support

$

$

Not available

6

Toro 251006

Tension Spring

$

$

Not available

7

Toro 250200

Screw

$

$

Not available

8

Toro 251002

Limiting Devise

$

$

Not available

9

Toro 250492

Grip Ring

$

$

Not available

10

Toro 250353

Seat Support

$

$

Not available

11

Toro 250492

Grip Ring

$

$

Not available

12

Toro 251003

Shock Absorber

$

$

Not available

13

Toro 251007

Spindle

$

$

Not available

14

Toro 251001

Bush

$

$

Not available

15

Toro 251008

Seat Carrier

$

$

Not available

16

Toro 251000

Limiting Devise

$

$

Not available

17

Toro 251373

Spindle

$

$

Not available

18

Toro 250461

Pin

$

$

Not available

19

Toro 251004

Spindle

$

$

Not available
