61-20RG01 (D-250) - Toro Lawn Tractor (1977) GENERATOR Parts Diagram

Lawn Tractor

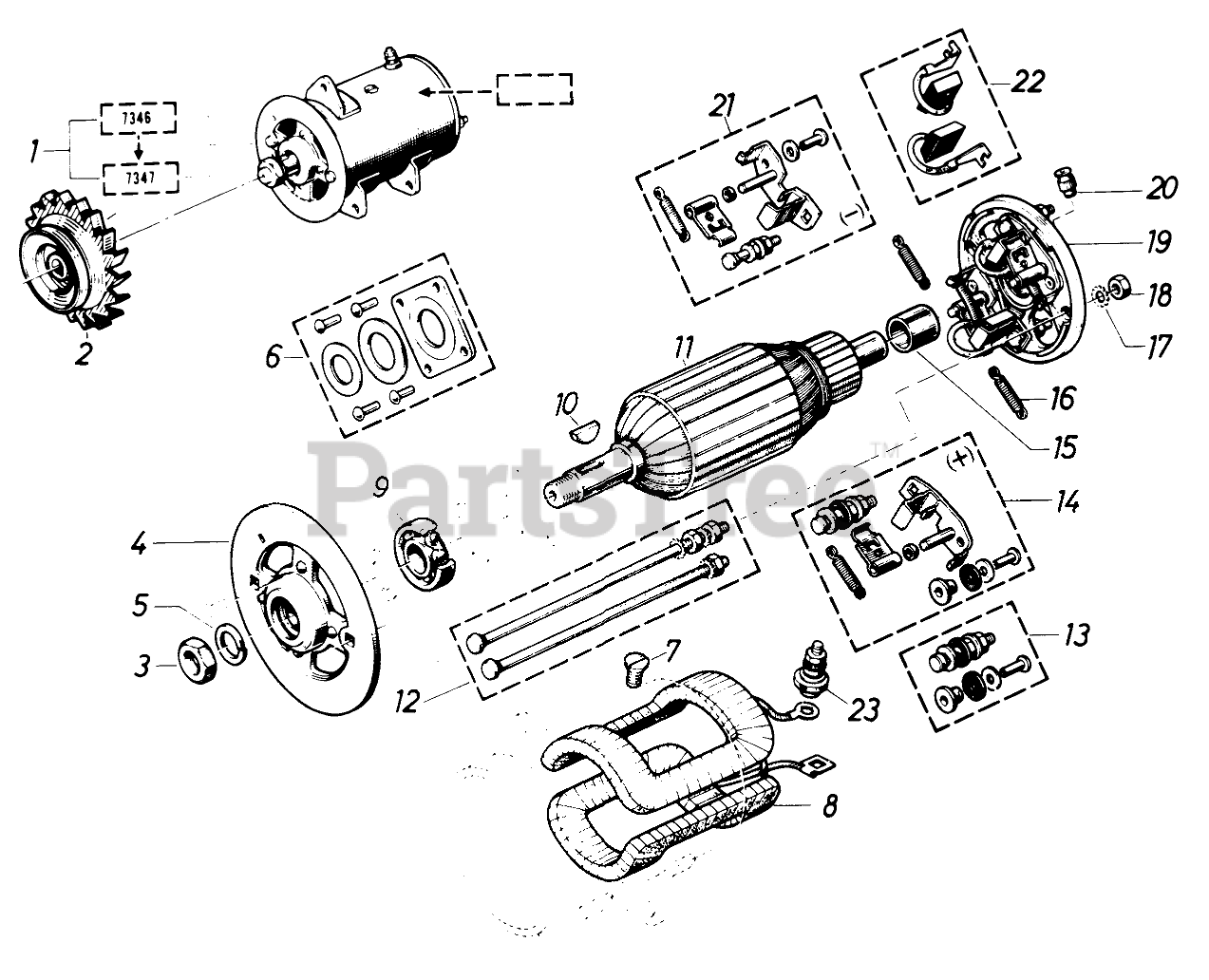

GENERATOR Parts Diagram

  • Title

1

Toro 250872

Generator

$

$

Not available

2

Toro 250723

Fan and Pulley Assy

$

$

Not available

3

Toro 250873

Nut

$

$

Not available

4

Toro 250724

Bearing Plate

$

$

Not available

5

Toro 250725

Spring Washer

$

$

Not available

6

Toro 250726

Set of Repair Spare Parts

$

$

Not available

7

Toro 250727

Screw

$

$

Not available

8

Toro 250728

Field Winding

$

$

Not available

9

Toro 250729

Ball Bearing

$

$

Not available

10

Toro 250730

Key

$

$

Not available

11

Toro 250874

Armature

$

$

Not available

12

Toro 250731

Screw Set

$

$

Not available

13

Toro 250875

Clamp

$

$

Not available

14

Toro 250876

Brush Parts Set

$

$

Not available

15

Toro 250879

Bushing

$

$

Not available

16

Toro 250880

Spring

$

$

Not available

17

Toro 250881

Lock Washer

$

$

Not available

18

Toro 250882

Nut

$

$

Not available

19

Toro 250883

Commutator End Plate Assy.

$

$

Not available

20

Toro 250884

Nipple

$

$

Not available

21

Toro 250885

Brush Parts Set

$

$

Not available

22

Toro 250886

Brush Set

$

$

Not available

23

Toro 250732

Clamp

$

$

Not available
