61-20RG01 (D-250) - Toro Lawn Tractor (1977) STEERING GEAR, PITMAN ARM AND BRACKET Parts Diagram

Lawn Tractor

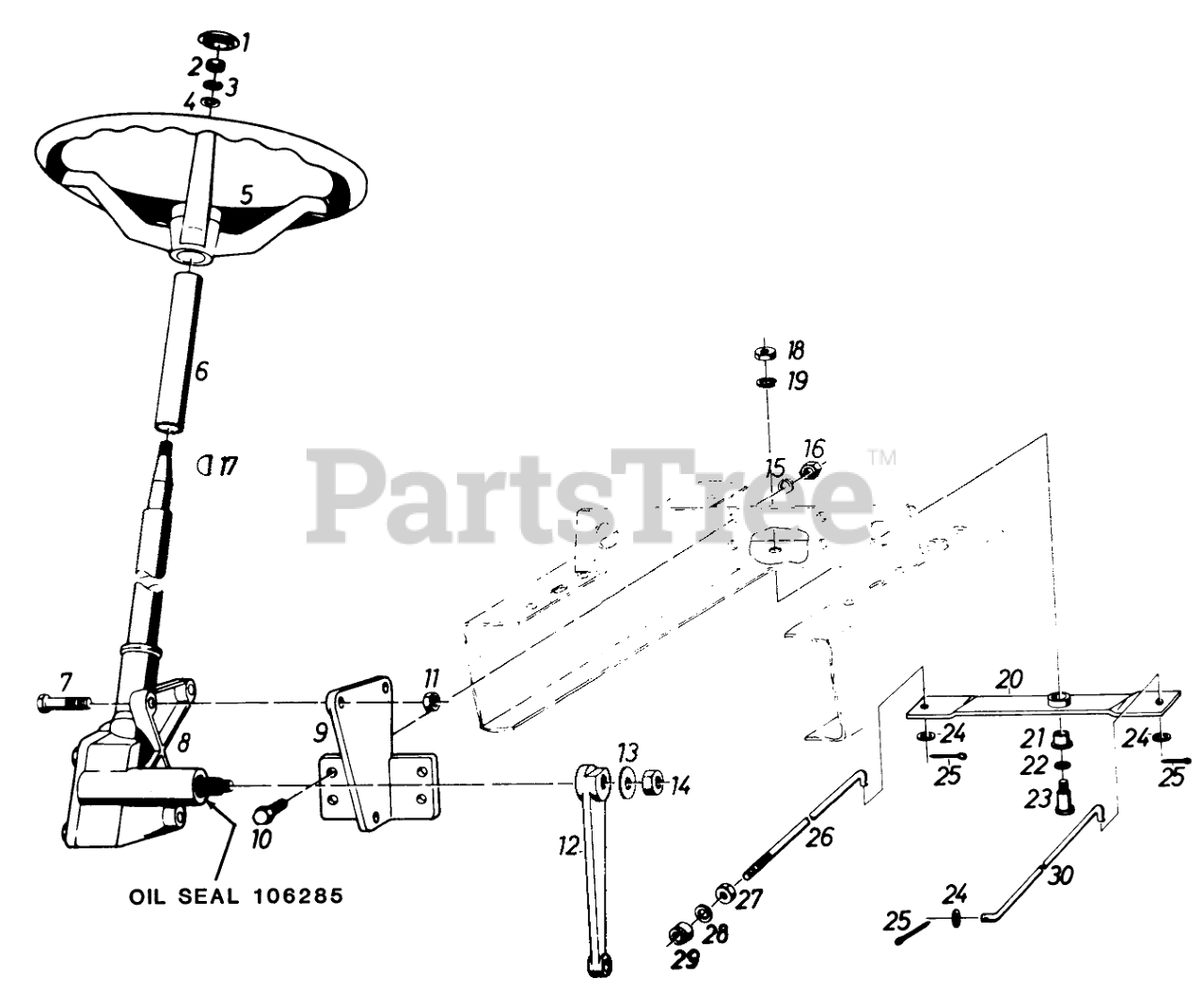

STEERING GEAR, PITMAN ARM AND BRACKET Parts Diagram

  • Title

1

Toro 250095

Cover Cap

$

$

Not available

2

Toro 250380

Nut

$

$

Not available

3

Toro 250459

Lockwasher

$

$

Not available

4

Toro 250423

Washer

$

$

Not available

5

Toro 250096

Steering Wheel

$

$

Not available

6

Toro 250313

Tube

$

$

Not available

7

Toro 250171

Screw

$

$

Not available

8

Toro 250318

Cam-Gears-Steering

$

$

Not available

9

Toro 250312

Steering Bearing

$

$

Not available

10

Toro 251411

Screw

$

$

Currently unavailable

11

Toro 250386

Nut

$

$

Not available

12

Toro 250308

Steering Arm

$

$

Not available

13

Toro 250010

Lock Washer

$

$

Not available

14

Toro 250009

Nut

$

$

Not available

15

Toro 250458

Washer
(Superseded to 920084)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 250374

Nut

$

$

Not available

17

Toro 250472

Key

$

$

Not available

18

Toro 250375

Nut

$

$

Not available

19

Toro 250459

Lockwasher

$

$

Not available

20

Toro 250261

Lever Cpl. (Consisting of Parts 20 and 21)

$

$

Not available

21

Toro 250039

Bearing

$

$

Not available

22

Toro 250423

Washer

$

$

Not available

23

Toro 250478

Bolt

$

$

Not available

24

Toro 250407

Washer

$

$

Not available

25

Toro 250438

Split Pin

$

$

Not available

26

Toro 250260

Rod

$

$

Not available

27

Toro 250384

Nut

$

$

Not available

28

Toro 250432

Washer

$

$

Not available

29

Toro 250258

Ring

$

$

Not available

30

Toro 250259

Rod

$

$

Not available
