62005 (T 500) - Toro Generator (SN: 003000001 - 003999999) (1983) AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

Generator

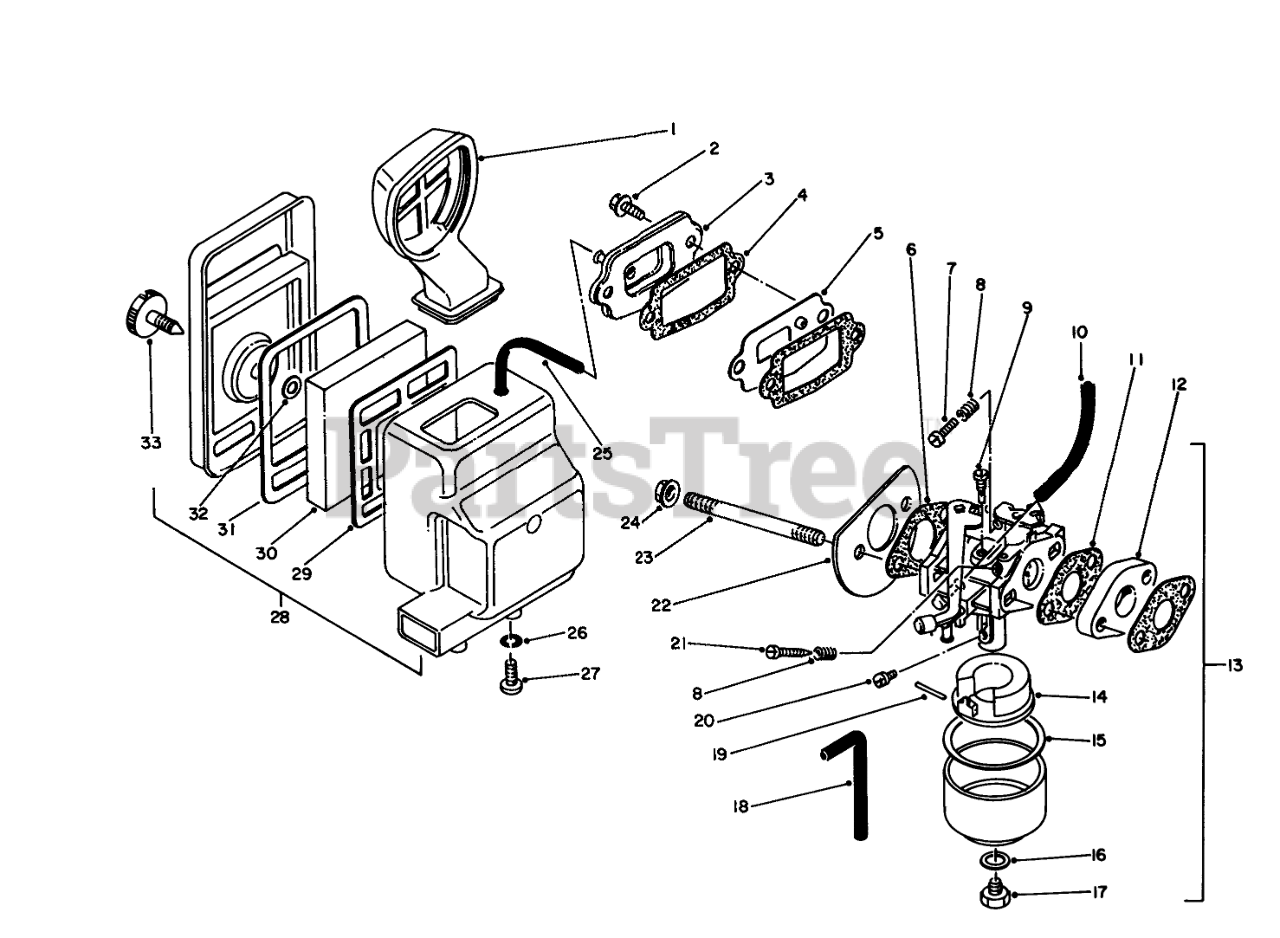

AIR CLEANER & CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-2430

Pipe-Air Cleaner

$

$

Not available

2

Toro 50-0130

BOLT

$5.49

$

Usually ships in 3-6 days

0

3

Toro 50-1530

CAP

$

$

Not available

4

Toro 50-1550

GASKET

$

$

Not available

5

Toro 50-1570

Valve Assembly-Reed

$

$

Not available

6

Toro 50-2450

GASKET

$

$

Not available

7

Toro 50-2320

Screw

$

$

Not available

8

Toro 50-2340

SPRING

$

$

Not available

9

Toro 50-1220

PILOT JET
(Superseded to 94-1684)

$

$

Not available

10

Toro 50-0910

Hose

$

$

Not available

11

Toro 50-2190

Gasket (T:1.0)

$

$

Not available

12

Toro 50-2210

Insulator (T:10)

$

$

Not available

13

Toro 50-2240

CARBURETOR ASM

$

$

Not available

14

Toro 50-2300

Float
(Superseded to 55-1320)

$

$

Not available

15

Toro 50-2280

GASKET

$

$

Not available

16

Toro 50-2260

GASKET

$

$

Not available

17

Toro 50-2250

Bolt

$

$

Not available

18

Toro 50-0910

Hose

$

$

Not available

19

Toro 81-0980

Pin
(Superseded to 81-2600)

$6.99

$

Usually ships in 3-6 days

0

20

Toro 50-1180

MAIN JET

$

$

Not available

21

Toro 50-2350

SCREW

$

$

Not available

22

Toro 50-2440

PLATE

$

$

Not available

23

Toro 50-0090

Stud Bolt

$

$

Not available

24

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

25

Toro 50-0900

HOSE

$

$

Not available

26

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

27

Toro 50-0370

Screw

$

$

Not available

28

Toro 50-2420

Cleaner Assembly-Air

$

$

Not available

29

Toro 50-2500

Holder

$

$

Not available

30

Toro 50-2480

AIR CLEANER ELEMENT

$

$

Not available

31

Toro 50-2460

Gasket

$

$

Not available

32

Toro 50-2580

Washer

$

$

Not available

33

Toro 50-2560

Knob

$

$

Not available
