62005 (T 500) - Toro Generator (SN: 005000001 - 005999999) (1985) FUEL TANK & COVER ASSEMBLY Parts Diagram

Generator

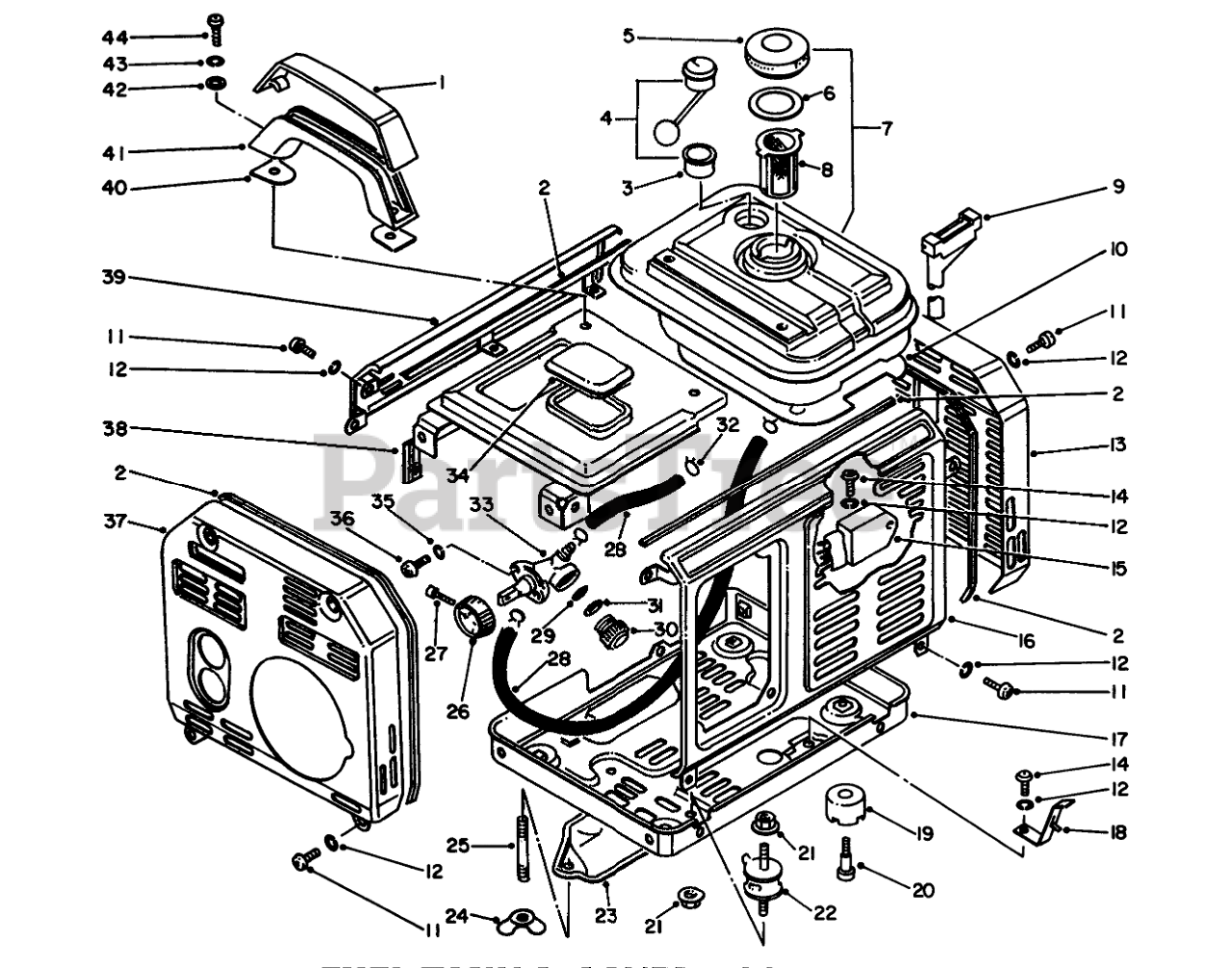

FUEL TANK & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 50-3610

Cover-Grip

$

$

Not available

2

Toro 50-3900

Seal

$

$

Not available

3

Toro 50-3850

Gasket

$

$

Not available

4

Toro 50-3840

Gauge Assembly Fuel

$

$

Not available

5

Toro 50-3710

FUEL TANK CAP

$

$

Not available

6

Toro 50-3720

GASKET

$

$

Not available

7

Toro 50-3680

Tank-Fuel

$

$

Not available

8

Toro 50-3820

Filter

$

$

Not available

9

Toro 50-3860

Duct Over Flow

$

$

Not available

10

Toro 50-3690

Plate-Heat Guard

$

$

Not available

11

Toro 50-0270

Screw

$

$

Not available

12

Toro 81-1380

Washer

$

$

Not available

13

Toro 50-3890

Cover-R.H.

$

$

Not available

14

Toro 50-0290

Screw

$

$

Not available

15

Toro 50-3560

Unit-Oil Level Alarm

$

$

Not available

16

Toro 50-3870

Cover-Front

$

$

Not available

17

Toro 50-3630

Plate-Engine Mounting

$

$

Not available

18

Toro 50-1090

Clamp

$

$

Not available

19

Toro 50-3640

CUSHION

$

$

Not available

20

Toro 50-0720

Screw

$

$

Not available

21

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

22

Toro 50-1580

ENGINE MOUNT

$

$

Not available

23

Toro 50-3650

Cover-Tool

$

$

Not available

24

Toro 50-0550

Nut
(Superseded to 50-7990)

$

$

Not available

25

Toro 50-0660

Stud Bolt-Tool Cover

$

$

Not available

26

Toro 50-3790

Knob-Cock

$

$

Not available

27

Toro 50-0700

Screw

$

$

Not available

28

Toro 50-0910

Hose

$

$

Not available

29

Toro 50-4610

FILTER

$

$

Not available

30

Toro 55-3360

Cup

$

$

Not available

31

Toro 50-4620

Gasket

$

$

Not available

32

Toro 50-0980

Clip

$

$

Not available

33

Toro 50-3730

Cock Assembly-Fuel

$

$

Not available

34

Toro 50-3930

Cap

$

$

Not available

35

Toro 81-1420

Lockwasher

$

$

Not available

36

Toro 50-0240

Screw

$

$

Not available

37

Toro 50-3910

Cover-L. H.

$

$

Not available

38

Toro 50-3920

Cover-Upper

$

$

Not available

39

Toro 50-3880

Cover-Rear

$

$

Not available

40

Toro 50-3620

Gasket

$

$

Not available

41

Toro 50-3600

Grip

$

$

Not available

42

Toro 50-0620

Washer

$

$

Not available

43

Toro 81-1450

LOCKWASHER

$3.49

$

In Stock, only 2 left!

0

44

Toro 50-0380

Screw

$

$

Not available

Toro 50-1240

Tool

Note: Not illustrated

$

$

Not available
