62012 (T 1200) - Toro Generator (SN: 008000001 - 008999999) (1988) CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

Generator

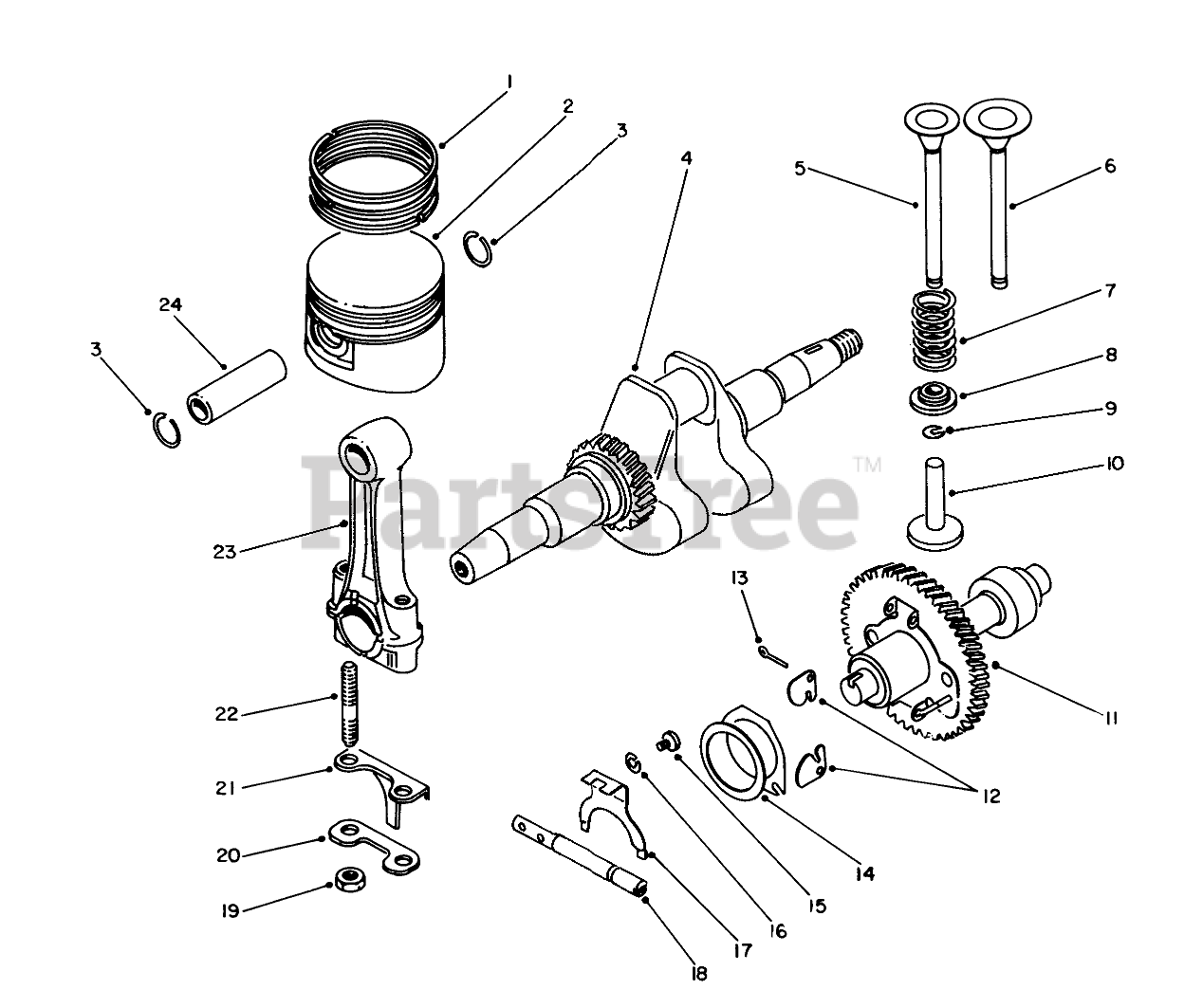

CRANKSHAFT & CAMSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 50-1740

Ring Set-Piston Std.

$

$

Not available

Toro 50-1750

Ring Set-Piston (O.S. 0.25)

$

$

Not available

Toro 50-1760

Ring Set-Piston (O.S. 0.5)

$

$

Not available

2

Toro 50-1650

Piston Std.

$

$

Not available

Toro 50-1660

Piston (O.S. 0.25)

$

$

Not available

Toro 50-1670

Piston (O.S. 0.5)

$

$

Not available

3

Toro 50-0960

CIRCLIP

$

$

Not available

4

Toro 55-1040

Crankshaft

$

$

Not available

5

Toro 50-2110

Valve-Exhaust

$

$

Not available

6

Toro 50-2080

Valve-Intake

$

$

Not available

7

Toro 50-2120

Spring-Valve

$

$

Not available

8

Toro 50-2140

Retainer

$

$

Not available

9

Toro 50-2160

Cotter

$

$

Not available

10

Toro 50-2030

Tappet (L:36.46)

$

$

Not available

Toro 50-2040

Tappet (L:36.39)

$

$

Not available

Toro 50-2050

Tappet (L:36.53)

$

$

Not available

11

Toro 50-1950

Cam Shaft

$

$

Not available

12

Toro 50-3070

ARM

$

$

Not available

13

Toro 50-0430

Cotter Pin

$

$

Not available

14

Toro 50-3110

Spacer

$

$

Not available

15

Toro 50-0220

SCREW

$

$

Not available

16

Toro 50-0590

Washer

$

$

Not available

17

Toro 50-3150

Plate-Shift

$

$

Not available

18

Toro 50-3130

Shaft-Throttle Return

$

$

Not available

19

Toro 50-0510

NUT

$

$

Not available

20

Toro 50-1890

LOCK PLATE

$

$

Not available

21

Toro 50-1870

PLATE

$

$

Not available

22

Toro 50-0670

Stud Bolt

$

$

Not available

23

Toro 50-1840

Rod-Connecting (Std.) (Incl. Ref. #19-22)

$

$

Not available

Toro 53-1100

Rod-Connecting (Optional) (Incl. Ref. #19-22)

$

$

Not available

24

Toro 50-1800

PISTON PIN

$

$

Not available
