62012 (T 1200) - Toro Generator (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

Generator

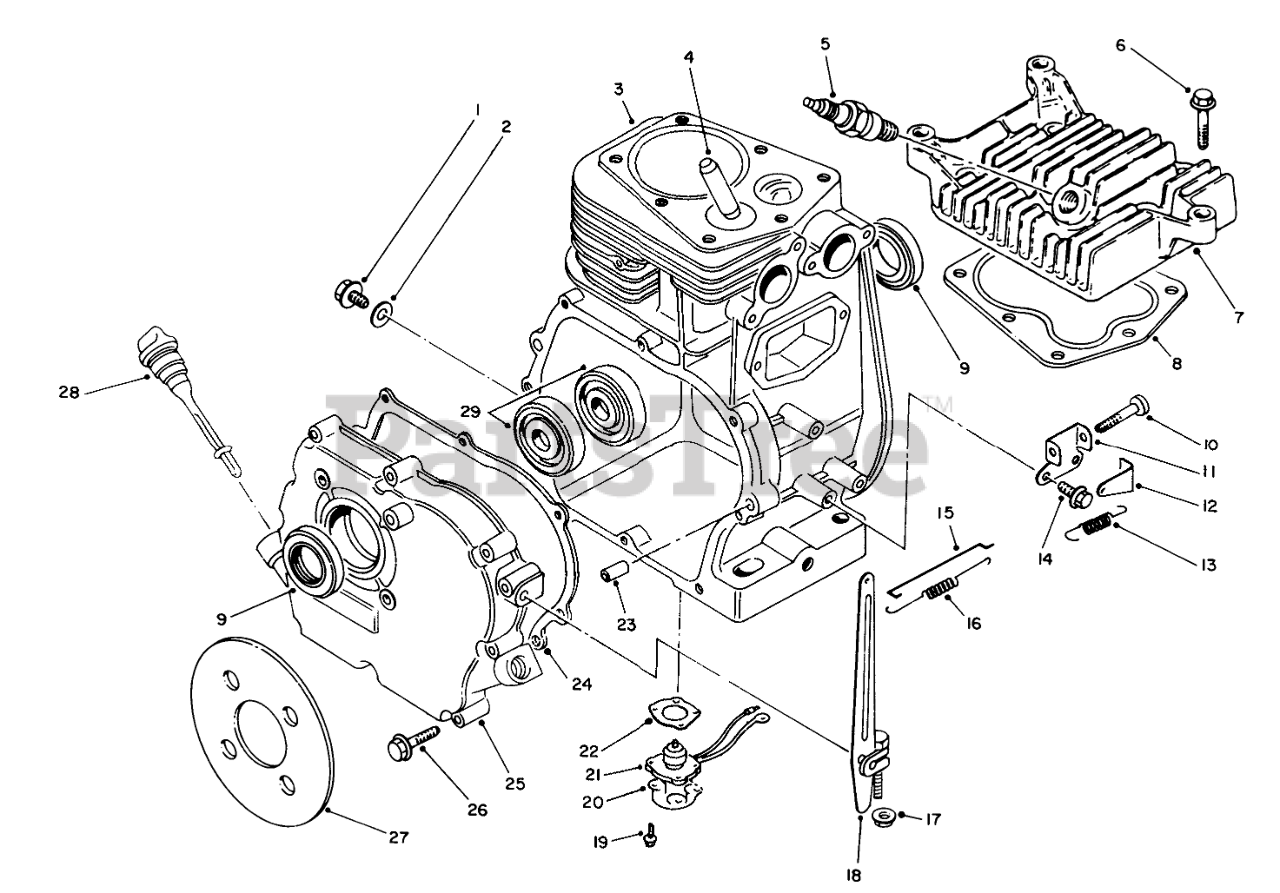

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 53-0970

Drain Plug

$

$

Not available

2

Toro 50-0800

GASKET

$

$

Not available

3

Toro 53-0950

Cylinder

$

$

Not available

4

Toro 50-1350

Guide Valve

$

$

Not available

5

Toro 50-1160

SPARK PLUG

$

$

Not available

6

Toro 50-0190

BOLT

$

$

Not available

7

Toro 50-1260

Cylinder Head

$

$

Not available

8

Toro 50-1290

GASKET

$

$

Not available

9

Toro 50-0870

Oil Seal
(Superseded to 81-3460)

$33.99

$

Usually ships in 3-6 days

0

10

Toro 50-0680

BOLT

$

$

Not available

11

Toro 50-3260

Bracket

$

$

Not available

12

Toro 50-3230

Hook

$

$

Not available

13

Toro 50-1150

SPRING

$

$

Not available

14

Toro 53-1340

BOLT

$

$

Not available

15

Toro 50-3300

Rod-Carburetor

$

$

Not available

16

Toro 50-1130

SPRING

$

$

Not available

17

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

18

Toro 53-1060

Lever-Control

$

$

Not available

19

Toro 50-6190

Bolt

$

$

Not available

20

Toro 50-3540

Plate

$

$

Not available

21

Toro 55-0030

SENSOR

$

$

Not available

22

Toro 50-3520

GASKET

$

$

Not available

23

Toro 81-0520

PIN

$

$

Not available

24

Toro 50-1430

Gasket-Crankcase

$

$

Not available

25

Toro 53-0990

Plug

$

$

Not available

26

Toro 81-0550

Bolt

$

$

Not available

27

Toro 50-3970

Seat-Joint

$

$

Not available

28

Toro 50-1450

Gauge-Oil Level

$

$

Not available

29

Toro 50-0830

Bearing

$

$

Not available

Toro 50-1510

Gasket Set

$

$

Not available
