62040 (T 4000 D) - Toro Generator (SN: 004000001 - 004999999) (1984) STARTER MOTOR ASSEMBLY Parts Diagram

Generator

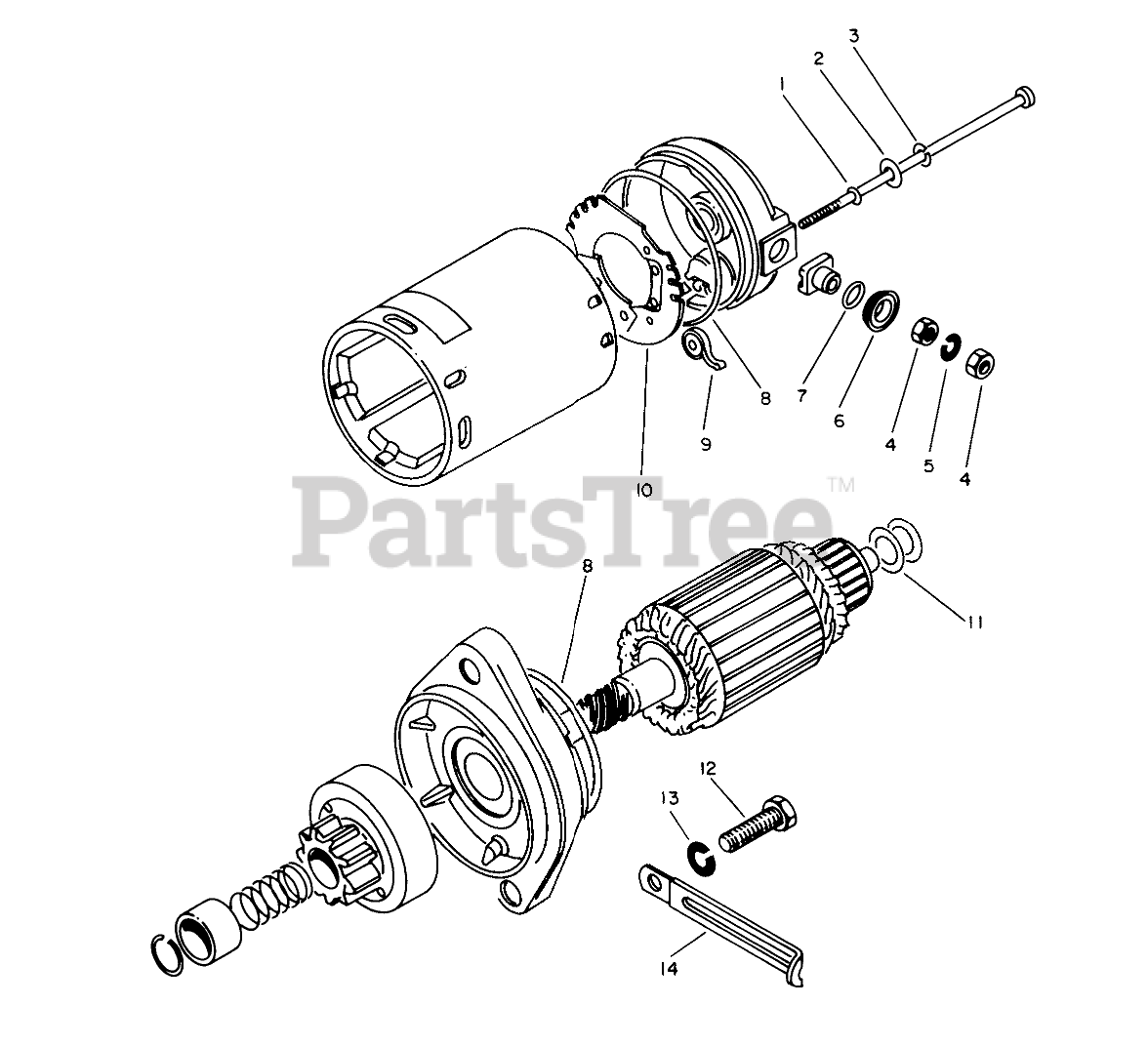

STARTER MOTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 50-7450

0-Ring

$

$

Not available

2

Toro 50-7440

Washer

$

$

Not available

3

Toro 81-1380

Washer

$

$

Not available

4

Toro 50-7470

NUT

$

$

Not available

5

Toro 50-0570

Lockwasher
(Superseded to 81-1450)

$3.49

$

In Stock, only 2 left!

0

6

Toro 50-7410

Bushing

$

$

Not available

7

Toro 50-7430

0 Ring

$

$

Not available

8

Toro 50-7420

0 Ring

$

$

Not available

9

Toro 50-7510

Spring

$

$

Not available

10

Toro 50-7500

Holder Assembly (Incl. Ref. #9)

$

$

Not available

11

Toro 50-7460

Shim

$

$

Not available

12

Toro 50-7530

Bolt

$

$

Not available

13

Toro 50-7540

Lockwasher

$

$

Not available

14

Toro 50-7520

Clamp

$

$

Not available

Toro 50-7400

Starter Motor Assembly Complete

Note: Not illustrated

$

$

Not available
