62040 (T 4000 D) - Toro Generator (SN: 006000001 - 006999999) (1986) EXHAUST ASSEMBLY Parts Diagram

Generator

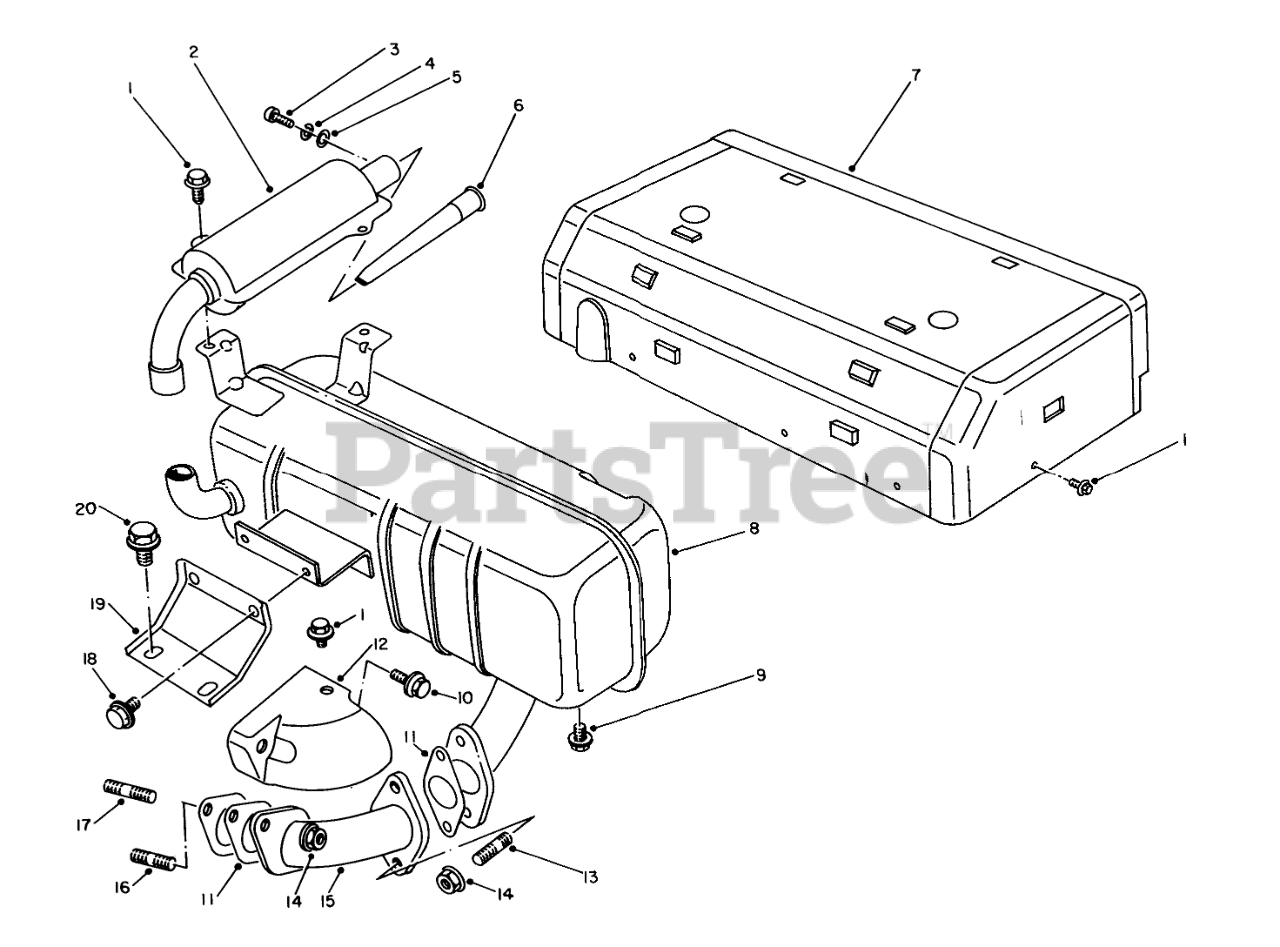

EXHAUST ASSEMBLY Parts Diagram

  • Title

1

Toro 50-6470

Bolt

$

$

Not available

2

Toro 50-7310

Muffler

$

$

Not available

3

Toro 81-1410

Bolt

$

$

Not available

4

Toro 81-1420

Lockwasher

$

$

Not available

5

Toro 50-0600

Washer

$

$

Not available

6

Toro 50-7320

Screw-Spark Arrester

$

$

Not available

7

Toro 50-7350

Cover-Muffler

$

$

Not available

8

Toro 55-2550

Muffler

$

$

Not available

9

Toro 50-7260

BOLT

$

$

Not available

10

Toro 50-6320

Bolt

$

$

Not available

11

Toro 50-7240

EXHAUST GASKET

$

$

Not available

12

Toro 50-7300

Cover-Exhaust Pipe

$

$

Not available

13

Toro 50-7380

Stud Bolt

$

$

Not available

14

Toro 50-7010

NUT

$

$

Not available

15

Toro 55-2560

Pipe-Exhaust

$

$

Not available

16

Toro 50-7290

Stud Bolt

$

$

Not available

17

Toro 50-7280

Stud Bolt

$

$

Not available

18

Toro 50-7260

BOLT

$

$

Not available

19

Toro 50-7360

Brace

$

$

Not available

20

Toro 50-0200

Bolt
(Superseded to 81-4970)

$8.49

$

Usually ships in 3-6 days

0
