62040 (T 4000 D) - Toro Generator (SN: 008000001 - 008999999) (1988) CONTROL PANEL ASSEMBLY Parts Diagram

Generator

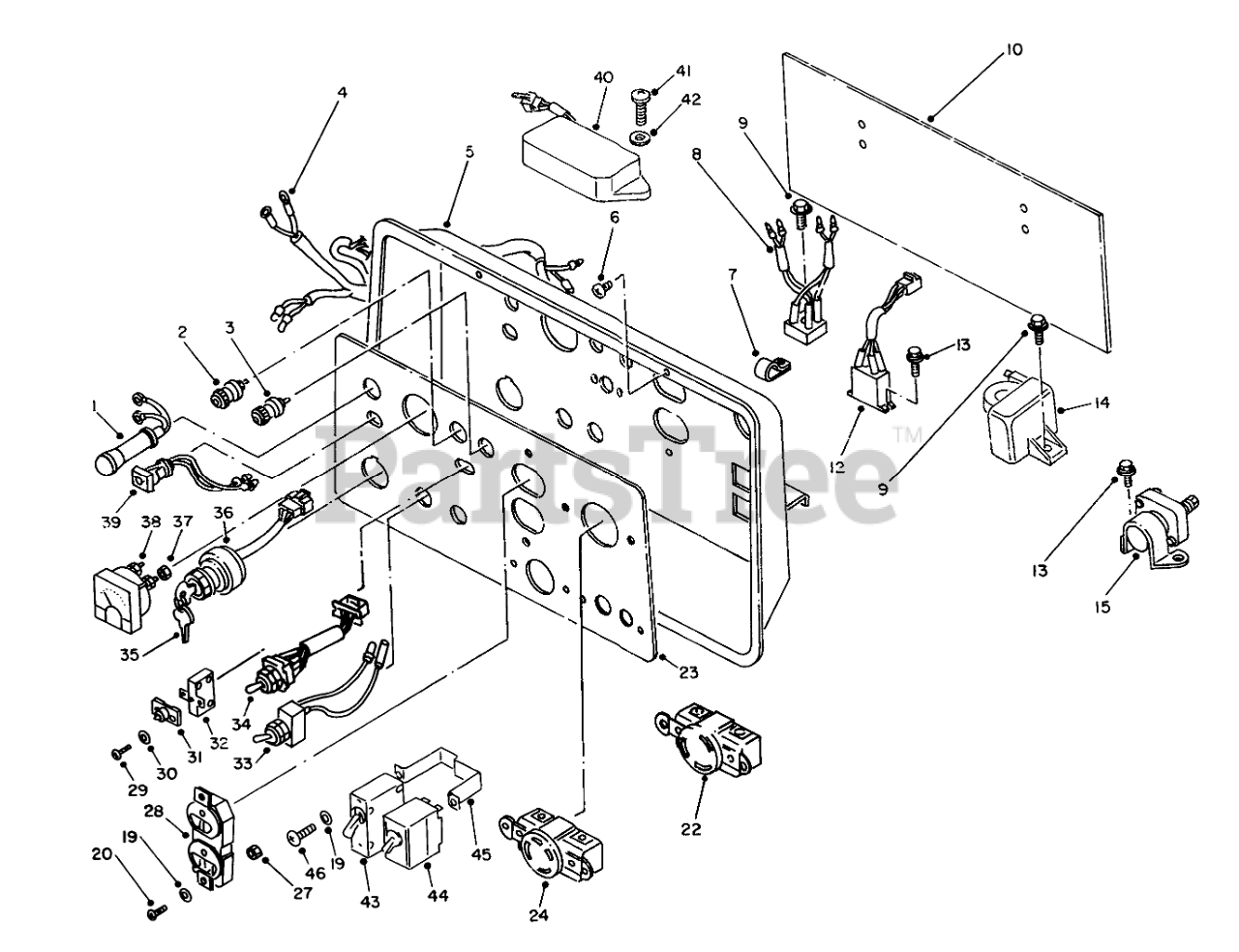

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 50-8660

Holder Assembly Lamp

$

$

Not available

2

Toro 50-4520

TERMINAL (-)

$

$

Not available

3

Toro 50-4510

Terminal
(Superseded to 55-0550)

$

$

Not available

4

Toro 55-2700

Harness-Control (110V/220V)

$

$

Not available

5

Toro 50-8570

Panel-Control

$

$

Not available

6

Toro 50-8420

Screw

$

$

Not available

7

Toro 50-1040

Clamp

$

$

Not available

8

Toro 50-8890

RECTIFIER ASM

$

$

Not available

9

Toro 81-1300

BOLT

$7.99

$

Usually ships in 3-6 days

0

10

Toro 50-8610

Insulato Panel

$

$

Not available

12

Toro 50-8860

Relay

$

$

Not available

13

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

14

Toro 55-2720

Unit-Slow Down

$

$

Not available

15

Toro 50-8820

RELAY ASM

$

$

Not available

19

Toro 50-0600

Washer

$

$

Not available

22

Toro 55-1190

Receptacle (125V, 30A)

$

$

Currently unavailable

23

Toro 50-8590

Plate-Panel

$

$

Not available

24

Toro 50-5820

Receptacle

$

$

Not available

27

Toro 50-0500

Nut

$

$

Not available

28

Toro 50-5810

Receptacle

$

$

Currently unavailable

Toro 55-2170

Receptacle (125V, 15A)

$

$

Not available

29

Toro 50-8710

Screw

$

$

Not available

30

Toro 50-6750

Washer

$

$

Not available

31

Toro 50-8720

Cap

$

$

Not available

32

Toro 55-2690

Circuit Breaker DC

$

$

Not available

33

Toro 50-8870

Switch-Auto Idle

$

$

Not available

34

Toro 50-8780

Switch-Remote Select

$

$

Not available

35

Toro 55-2640

KEY

$

$

Not available

36

Toro 55-2630

Switch Assembly-Engine (Incl. Ref. #35)

$

$

Not available

37

Toro 50-0490

Nut

$

$

Not available

38

Toro 55-2710

Meter-Voltage(150V/300V)

$

$

Not available

39

Toro 50-3480

Lamp-Oil Level

$

$

Not available

40

Toro 50-8880

Unit-Fuel/Oil Interlock

$

$

Not available

41

Toro 50-0290

Screw

$

$

Not available

42

Toro 50-0610

WASHER

$

$

Not available

43

Toro 70-0900

Breaker-Circuit (30A)

$

$

Not available

44

Toro 70-0890

Breaker-Circuit

$

$

Not available

45

Toro 70-0930

Holder-Breaker

$

$

Not available

46

Toro 50-0240

Screw

$

$

Not available
