62923 - Toro Lawn Vacuum, 5hp (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 135202-0185-01 Parts Diagram

Lawn Vacuum, 5hp

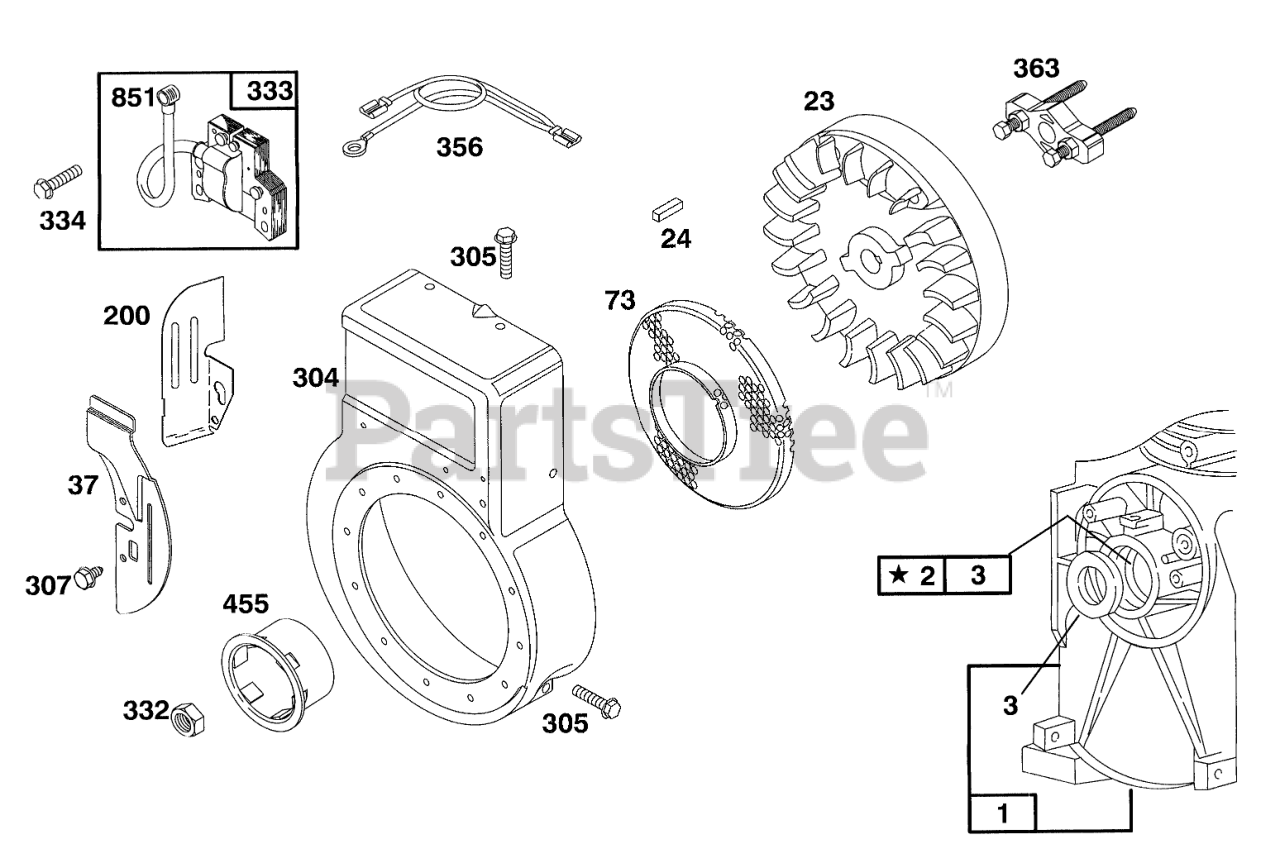

ENGINE BRIGGS & STRATTON MODEL 135202-0185-01 Parts Diagram

  • Title

1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 495603.

$5.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 494846

Housing-Rewind Starter
(Superseded to 497830)

$49.99

$

In Stock, Qty 16

0

73

Briggs & Stratton 224632

Screen-Rotating
(Superseded to 224883)

$21.99

$

In Stock, only 1 left!

0

200

Briggs & Stratton 223886

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 262281

Spring-Choke
(Superseded to 691815)

$

$

Not available

304

Briggs & Stratton 495759

Housing-Blower

$85.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94619

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

307

Briggs & Stratton 94680

Screw-Sem
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 397358

Armature Group

$53.99

$

In Stock, only 3 left!

0

334

Briggs & Stratton 93414

Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 398708

Wire-Ground
(Superseded to 690650)

$

$

Not available

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

Usually ships in 2-12 days

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 224250

Cup-Starter

$9.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
