62923 - Toro Lawn Vacuum, 5hp (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 135202-0185-01 Parts Diagram

Lawn Vacuum, 5hp

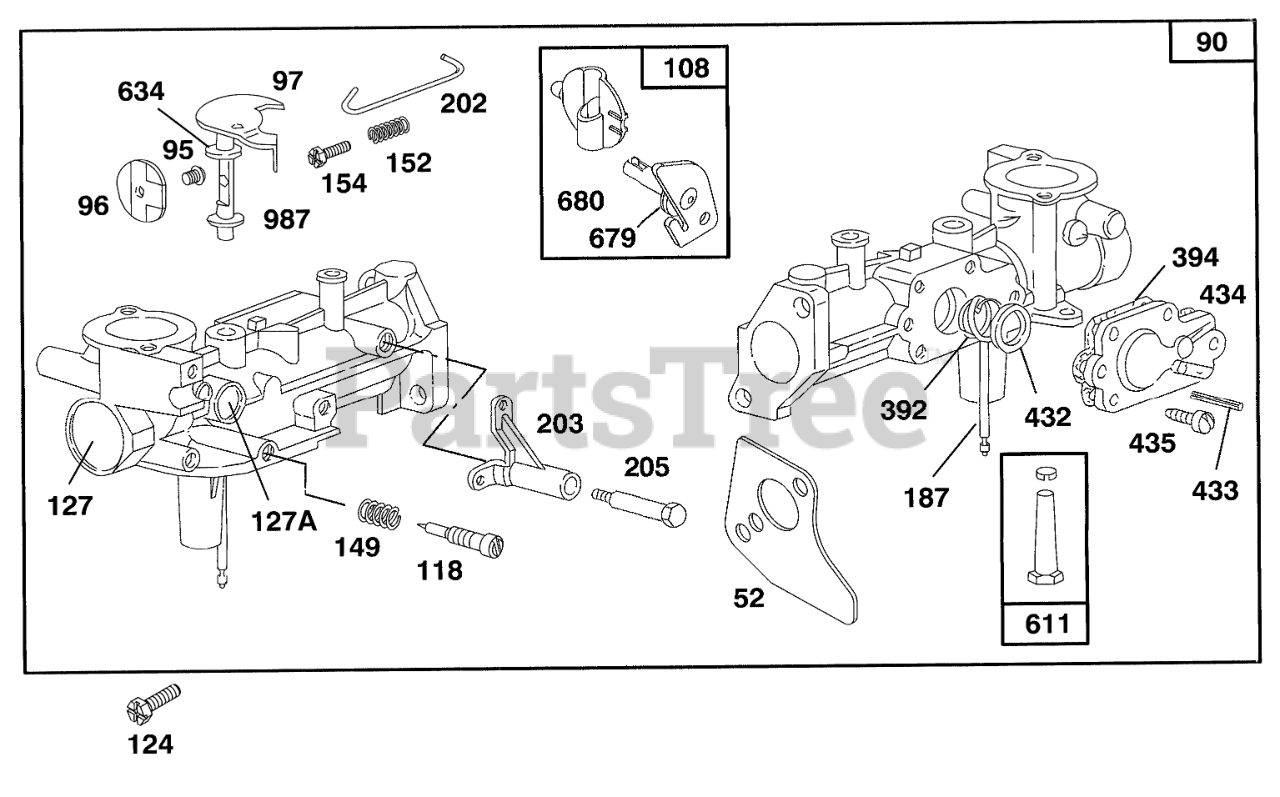

ENGINE BRIGGS & STRATTON MODEL 135202-0185-01 Parts Diagram

  • Title

52

Briggs & Stratton 271936

Gasket-Carburetor
(Superseded to 273113S)

Note: Included in Carburetor Overhaul Kit-Part No. 495606.

$4.49

$

In Stock, Qty 10

0

52

Briggs & Stratton 271936

Gasket-Carburetor
(Superseded to 273113S)

Note: Included in Gasket Set-Part No. 495603.

$4.49

$

In Stock, Qty 10

0

55

Briggs & Stratton 494846

Housing-Rewind Starter
(Superseded to 497830)

$49.99

$

In Stock, Qty 16

0

90

Briggs & Stratton 495951

Carburetor
(Superseded to 498298)

$149.99

$

In Stock, only 4 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 223793

Valve-Throttle
(Superseded to 691743)

$7.49

$

In Stock, only 1 left!

0

97

Briggs & Stratton 490048

Shaft-Throttle
(Superseded to 692325)

$16.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 495949

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 231533

Valve-Needle
(Superseded to 691777)

$17.99

$

In Stock, only 1 left!

0

124

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

127

Briggs & Stratton 220352

Plug-Welch
(Superseded to 691718)

$13.99

$

In Stock, only 4 left!

0

127A

Briggs & Stratton 223789

Plug-Welch
(Superseded to 691742)

$4.99

$

In Stock, only 3 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, Qty 7

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

Usually ships in 2-12 days

0

154

Briggs & Stratton 93527

Screw-Rd. Hd.
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 231068

Pipe-Fuel
(Superseded to 691770)

$6.49

$

In Stock, Qty 5

0

202

Briggs & Stratton 262270

Link-Throttle
(Superseded to 691812)

$8.99

$

In Stock, only 1 left!

0

203

Briggs & Stratton 280720

Bell Crank
(Superseded to 691906)

$7.99

$

In Stock, only 2 left!

0

205

Briggs & Stratton 231520

Screw-Shoulder
(Superseded to 691776)

$

$

Not available

217

Briggs & Stratton 262281

Spring-Choke
(Superseded to 691815)

$

$

Not available

392

Briggs & Stratton 262328

Spring-Diaphragm
(Superseded to 691823)

$4.99

$

In Stock, Qty 19

0

394

Briggs & Stratton 272538

Diaphragm
(Superseded to 272538S)

Note: Included in Carburetor Overhaul Kit-Part No. 495606.

$3.99

$

In Stock, Qty 20+

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 214021

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, Qty 6

0

435

Briggs & Stratton 93141

Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 391813

Tube-Pick-Up

$

$

Not available

634

Briggs & Stratton 271853

Seal
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

679

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 4 left!

0

680

Briggs & Stratton 221839

Washer
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0
