62925 - Toro Lawn Vacuum (SN: 290000001 - 290999999) (2009) BLOWER, FAN AND SNOUT ASSEMBLY Parts Diagram

Lawn Vacuum

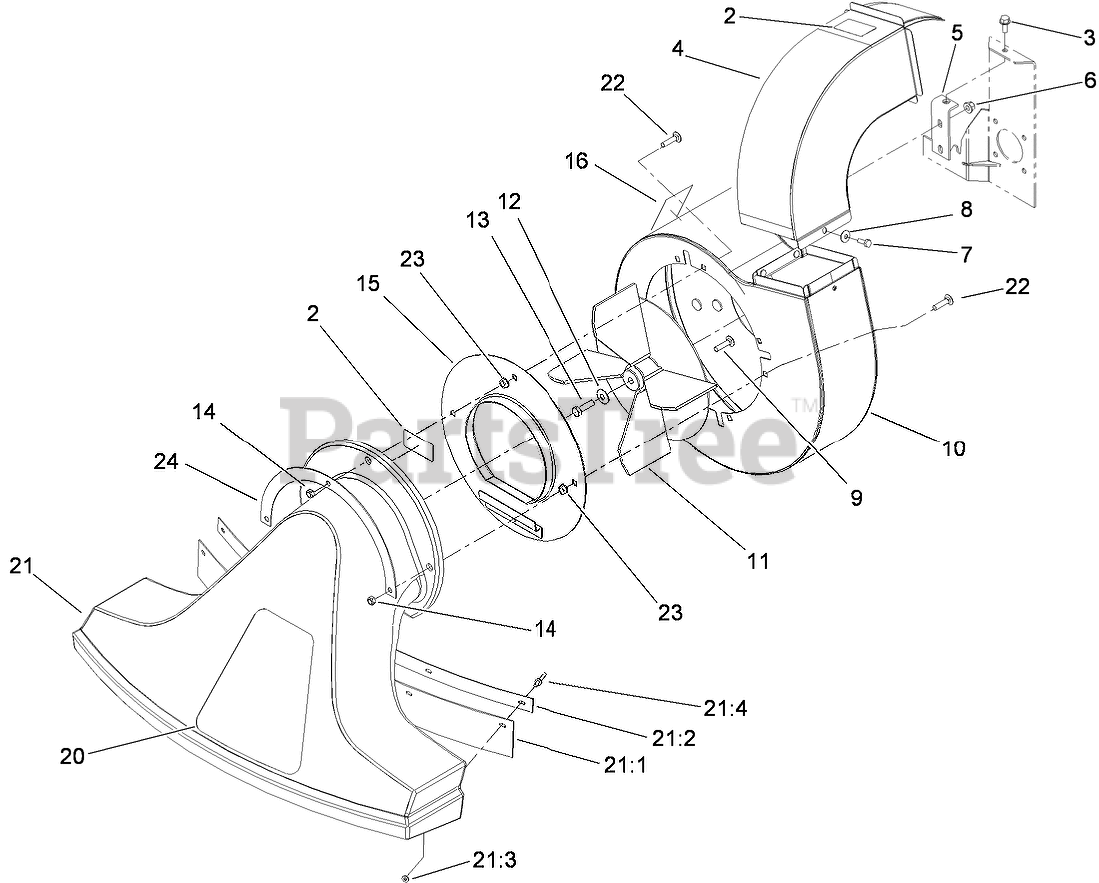

BLOWER, FAN AND SNOUT ASSEMBLY Parts Diagram

  • Title

2

Toro 93-4139

DECAL-CAUTION, BAG

$4.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 110-8605-01

VACUUM CHUTE ASM

$

$

Not available

5

Toro 105-1233-03

BRACKET-MOUNTING, HOUSING

$

$

Not available

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

8

Toro 3290-436

WASHER-BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

9

Toro 3230-19

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

10

Toro 110-8606-01

BLOWER/VAC HOUSING ASM

$747.99

$

Usually ships in 3-6 days

0

11

Toro 93-3677-03

FAN ASM

$509.99

$

Usually ships in 3-6 days

0

12

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

13

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

14

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

15

Toro 20-5450-01

COVER-BLOWER

$

$

Not available

16

Toro 105-4062

DECAL-WARNING, ROTATE

$

$

Not available

20

Toro 107-8919

DECAL

$46.99

$

Usually ships in 3-6 days

0

21

Toro 40-7000

SNOUT ASM

$575.99

$

Usually ships in 3-6 days

0

21:1

Toro 20-6830

FLAP-RUBBER

$26.99

$

Usually ships in 3-6 days

0

21:2

Toro 20-6840-03

CLAMP-FLAP

$70.99

$

Usually ships in 3-6 days

0

21:3

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21:4

Toro 3269-22

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

22

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 105-8543-03

Flange-Retainer

$

$

Not available
