68034 (VR-2650) - Toro Rammer Compactor (SN: 313000001 - 313999999) (2013) FRAME, HANDLE AND FUEL TANK ASSEMBLY Parts Diagram

Rammer Compactor

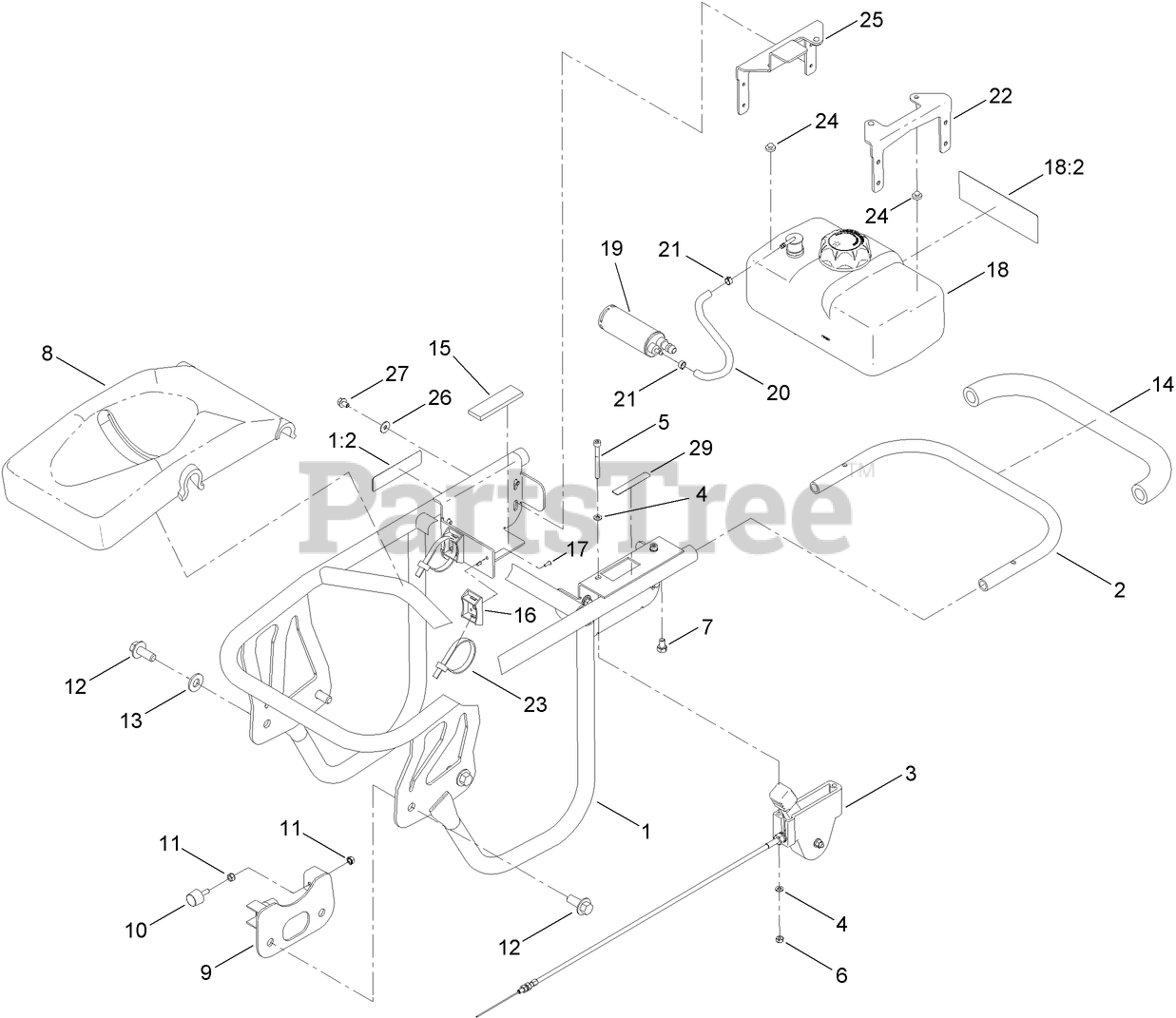

FRAME, HANDLE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 127-2830

HANDLE ASM

$891.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

2

Toro 127-5596-03

HANDLE-RAMMER

$77.99

$

Usually ships in 3-6 days

0

3

Toro 125-8669

THROTTLE LEVER ASM

$176.99

$

Usually ships in 3-6 days

0

4

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro ST80940

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 115-7373

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

7

Toro ST80586

SCREW-HWH
(Superseded to 9266934)

$8.99

$

In Stock, Qty 7

0

8

Toro 125-4803

COVER-ENGINE

$236.99

$

Usually ships in 3-6 days

0

9

Toro ST39424-03

STOPPER

$76.99

$

Usually ships in 3-6 days

0

10

Toro ST39427

MOUNT-SHOCK

$16.99

$

Usually ships in 3-6 days

0

11

Toro 98-5845

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

12

Toro 33106-020

SCREW-HHF

$7.49

$

Usually ships in 3-6 days

0

13

Toro 29-8910

WASHER

$0.99

$

In Stock, only 1 left!

0

14

Toro ST39483

GRIP-CUSHION, HANDLE

$47.99

$

Usually ships in 3-6 days

0

15

Toro 125-6239

PAD-TANK, FUEL

$2.49

$

Usually ships in 3-6 days

0

16

Toro ST36125

BRACKET-CANISTER
(Superseded to 127-7583)

$6.49

$

Usually ships in 3-6 days

0

17

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

18

Toro 127-2829

1 GALLON FUEL TANK ASM
(Superseded to 127-7574)

$525.99

$

Usually ships in 3-6 days

0

18:2

Toro 125-8191

DECAL-WARNING

$

$

Currently unavailable

19

Toro ST36124

CANISTER-CARBON
(Superseded to 127-7582)

$165.99

$

Usually ships in 3-6 days

0

20

Toro 51-3217

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

21

Toro ST32522

CLAMP-HOSE, FUEL
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 10

0

22

Toro ST66668-03

BRACKET-TOP, FUEL TANK

$59.99

$

Usually ships in 3-6 days

0

23

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Toro ST47292

BUMPER-RUBBER

$2.49

$

Usually ships in 3-6 days

0

25

Toro ST66684-03

GUARD-TANK, FUEL
(Superseded to 127-7556-03)

$60.99

$

Usually ships in 3-6 days

0

26

Toro ST81181

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

29

Toro 125-8182

DECAL-THROTTLE

$2.99

$

Usually ships in 3-6 days

0
