68074 (RP-1200 D) - Toro Reversible Plate Compactor (SN: 313000001 - 313999999) (2013) ENGINE ASSEMBLY Parts Diagram

Reversible Plate Compactor

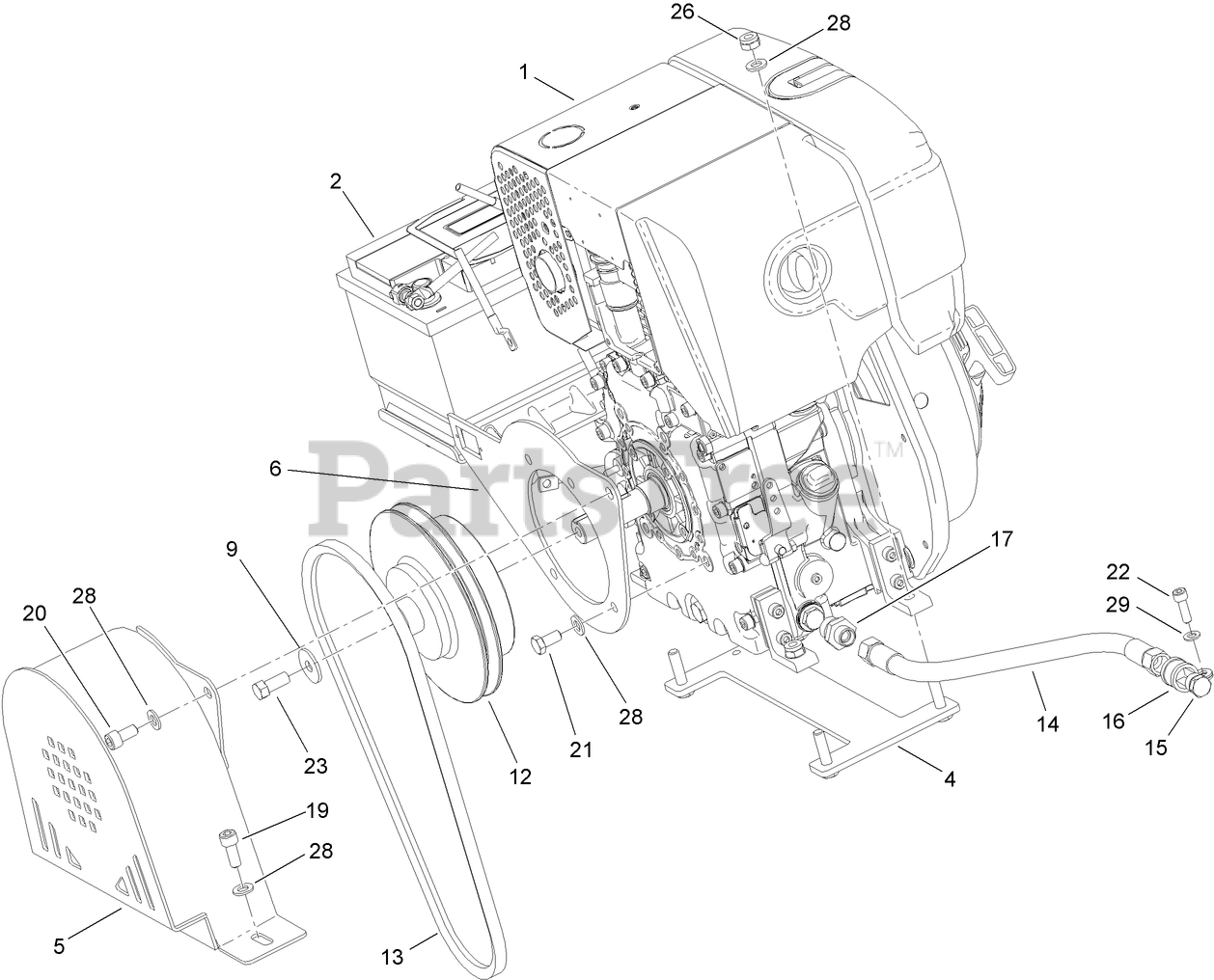

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5429

ENGINE ASM

$15159.99

$

Usually ships in 3-6 days

0

2

Toro 127-5064

BATTERY CARRIER ASM

$

$

Currently unavailable

4

Toro 127-5430

CONTROL-ENGINE

$87.99

$

Usually ships in 3-6 days

0

5

Toro 127-5431

COVER-PULLEY

$291.99

$

Usually ships in 3-6 days

0

6

Toro 127-5432

HOLDER-COVER

$145.99

$

Usually ships in 3-6 days

0

9

Toro 127-5433

WASHER

$3.99

$

Usually ships in 3-6 days

0

12

Toro 127-5434

COUPLING

$

$

Not available

13

Toro 127-5435

V-BELT

$99.99

$

In Stock, only 2 left!

0

14

Toro 127-5436

HOSE

$62.99

$

Usually ships in 3-6 days

0

15

Toro 127-5437

PLUG

$20.99

$

Usually ships in 3-6 days

0

16

Toro 127-5438

CLIP-HOSE

$21.99

$

Usually ships in 3-6 days

0

17

Toro 127-5353

SOCKET-STRAIGHT

$18.99

$

Usually ships in 3-6 days

0

19

Toro 127-5180

BOLT

$2.49

$

Usually ships in 3-6 days

0

20

Toro 127-5101

BOLT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 127-5439

BOLT

$2.99

$

Usually ships in 3-6 days

0

23

Toro 127-5463

BOLT

$3.99

$

Usually ships in 3-6 days

0

26

Toro 127-5103

NUT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 127-5084

WASHER

$

$

Not available

29

Toro 127-5104

WASHER

$0.99

$

Usually ships in 3-6 days

0
