68138 G (MB TX 2500) - Toro Mud Buggy (SN: 400000000 - 402099999) ELECTRICAL HARNESS ASSEMBLY Parts Diagram

Mud Buggy

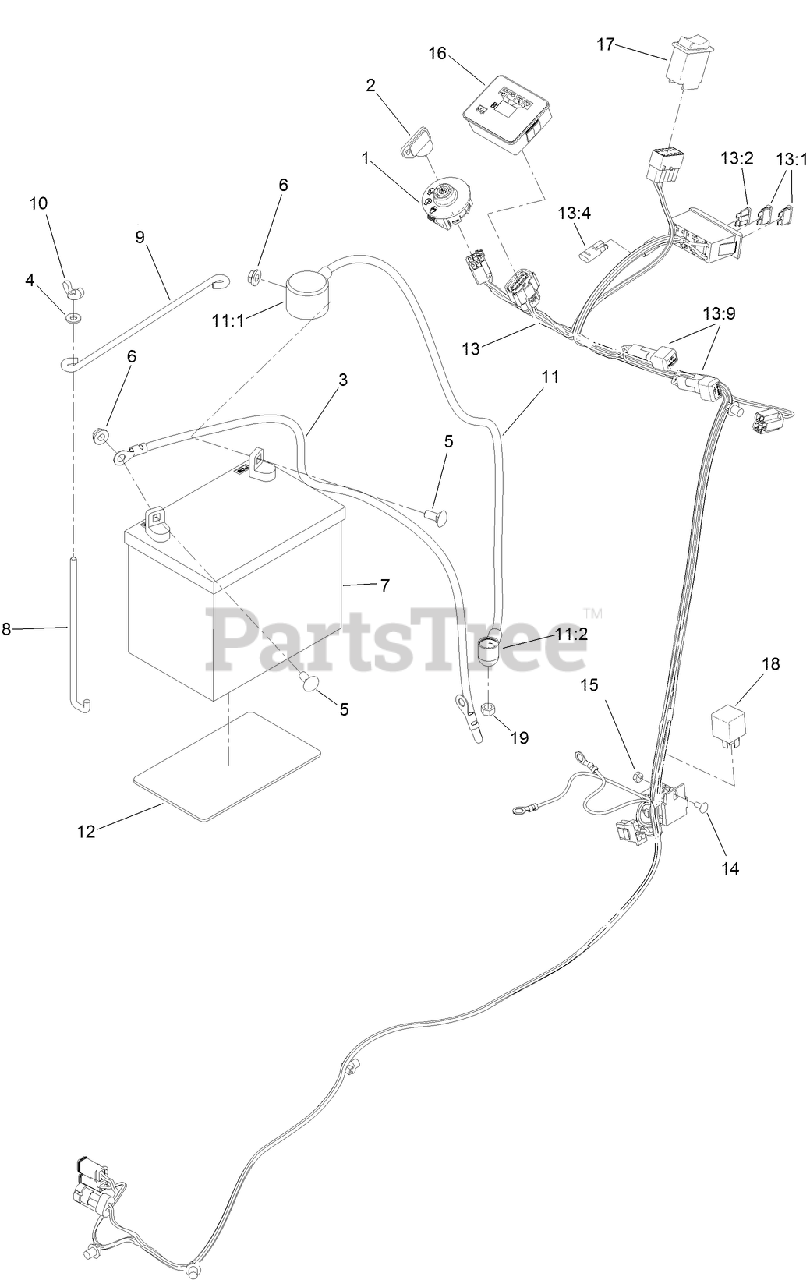

ELECTRICAL HARNESS ASSEMBLY Parts Diagram

  • Title

1

Toro 117-2222

SWITCH-IGNITION
(Superseded to 137-4101)

$31.99

$

In Stock, Qty 20+

0

2

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

3

Toro 117-7240

CABLE-BATTERY, NEGATIVE

$22.99

$

Usually ships in 3-6 days

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 99-7421

BATTERY (300 CCA, WET)
(Superseded to 104-8162)

$

$

Not available

8

Toro 100-6435

POST-BATTERY

$18.99

$

Usually ships in 3-6 days

0

9

Toro 100-6434

ROD-HOLD DOWN, BATTERY

$11.99

$

Usually ships in 3-6 days

0

10

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

11

Toro 109-7630

POSITIVE BATTERY CABLE ASM

$42.99

$

In Stock, only 2 left!

0

11:1

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, Qty 5

0

11:2

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 3 left!

0

12

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0

13

Toro 132-8870

HARNESS-WIRE

$349.99

$

Usually ships in 3-6 days

0

13:1

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

13:2

Toro 114241

FUSE-BLADE, 7.5 AMP

$11.99

$

Usually ships in 3-6 days

0

13:4

Toro 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

13:9

Toro 100-4918

DIODE

$21.99

$

Usually ships in 3-6 days

0

14

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 132-8959

MODULE, HOUR METER

$139.99

$

In Stock, only 1 left!

0

17

Toro AU113664

SWITCH-ROCKER, 2 POLE

$36.99

$

In Stock, only 1 left!

0

18

Toro 1-643275

RELAY

$22.99

$

In Stock, Qty 20+

0

19

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+
