68138 HD (MB TX 2500) - Toro Mud Buggy (SN: 400000000 - 403090249) PLATFORM ASSEMBLY Parts Diagram

Mud Buggy

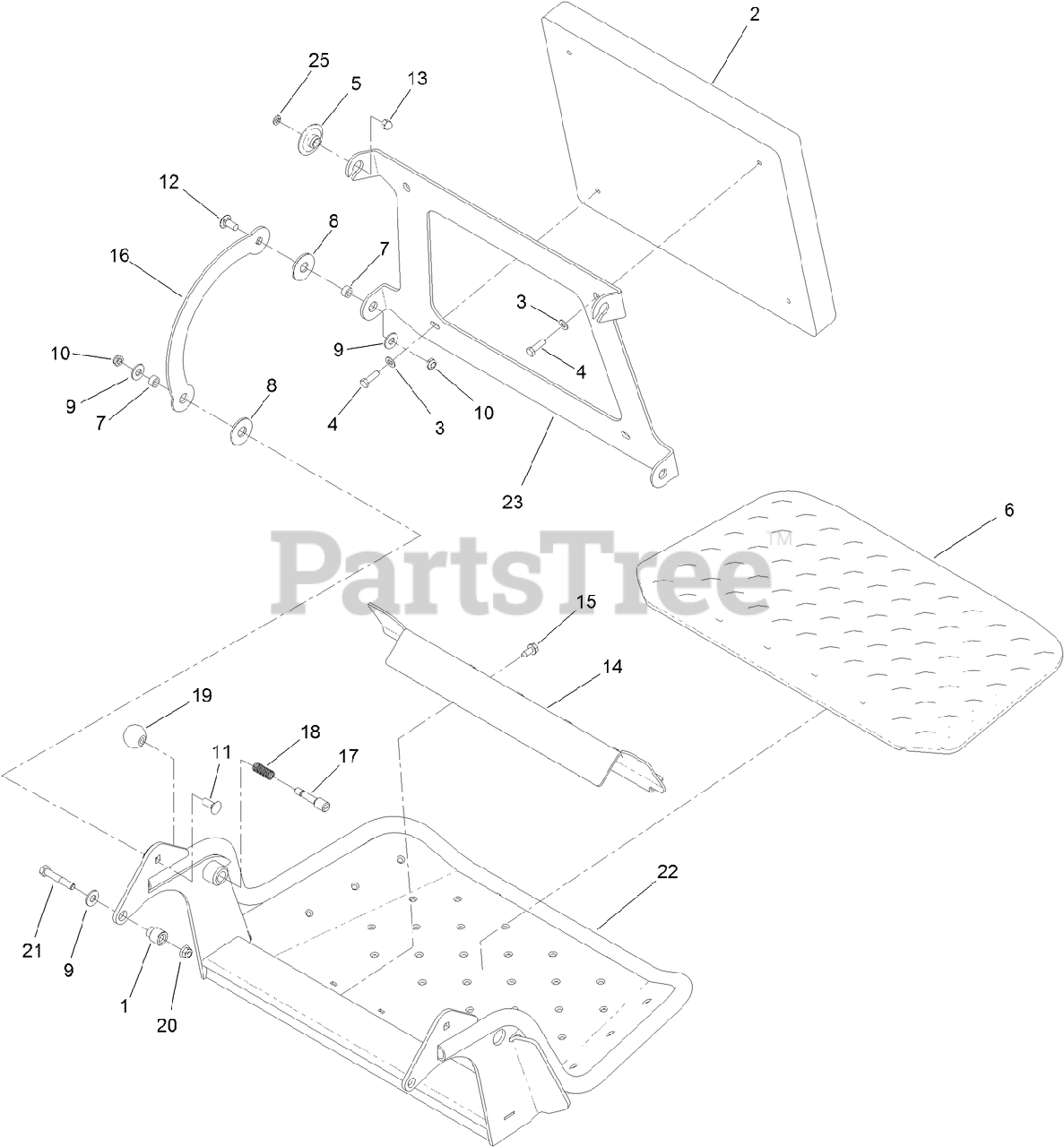

PLATFORM ASSEMBLY Parts Diagram

  • Title

1

Toro 132-7583

BUSHING-FLANGED

$5.49

$

In Stock, Qty 10

0

2

Toro 117-9739

PAD-CUSHION

$336.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 121-7999

SCREW-HH

$1.49

$

In Stock, Qty 14

0

5

Toro 116-2886

SLIDE-BUSHING

$6.49

$

In Stock, Qty 20+

0

6

Toro 126-7157

MAT-PLATFORM

$107.99

$

In Stock, only 2 left!

0

7

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

8

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

11

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

13

Toro 131-4535

NUT-ACORN
(Superseded to 137-4808)

$1.99

$

In Stock, Qty 20+

0

14

Toro 136-5669-03

CLAMP-SHIELD

$51.99

$

Usually ships in 3-6 days

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 114-1915-03

LINK-PAD

$29.99

$

Usually ships in 3-6 days

0

17

Toro 119-8650

PIN-LATCH

$20.99

$

In Stock, Qty 8

0

18

Toro 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

19

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 17

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 120-8475-03

PLATFORM ASM

$

$

Not available

23

Toro 120-8499-03

HINGE-PAD

$158.99

$

Usually ships in 3-6 days

0

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
