70142 (12-32) - Toro Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) PEERLESS TRANSAXLE MODEL NO. 915-019 Parts Diagram

Rear-Engine Riding Mower

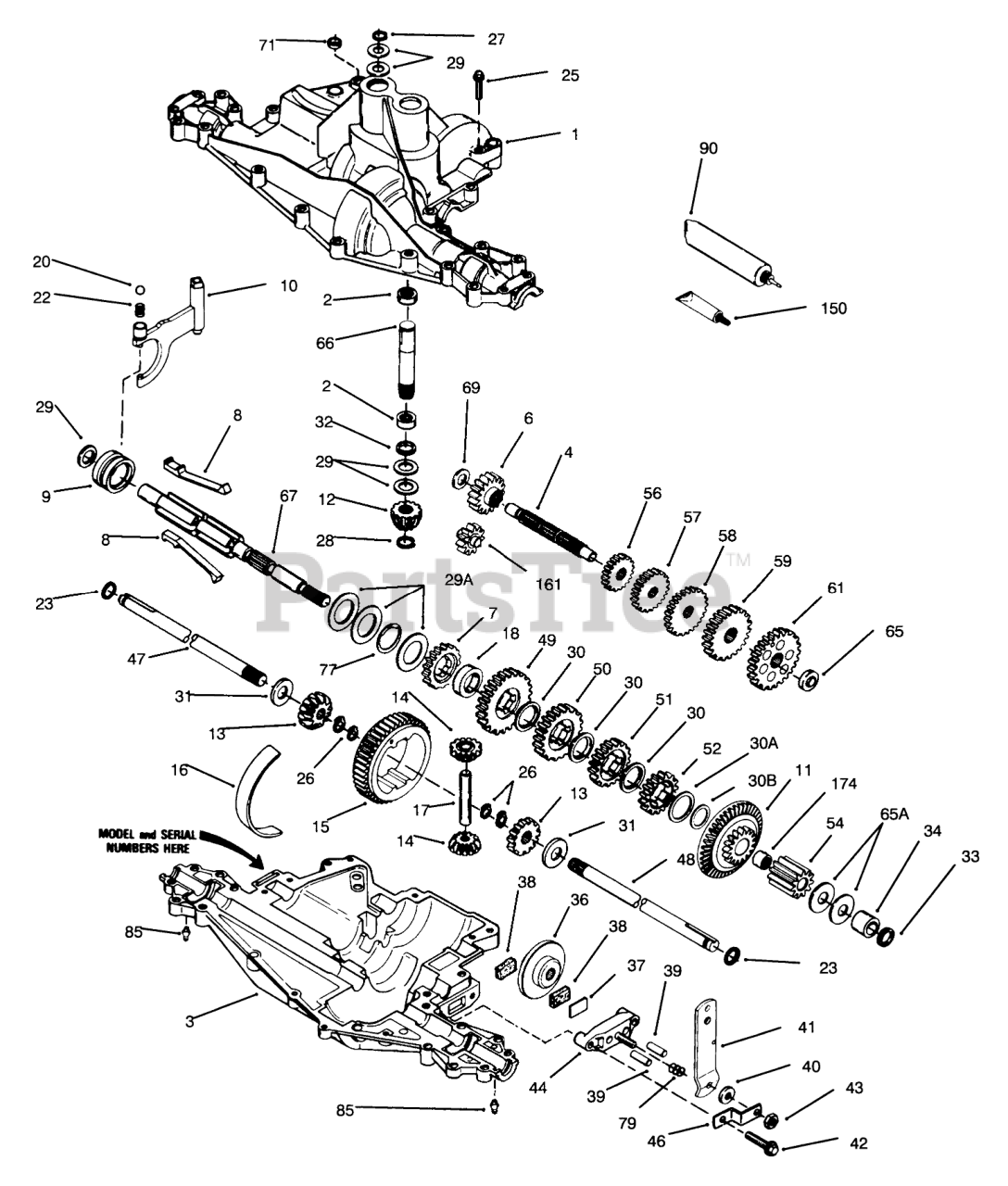

PEERLESS TRANSAXLE MODEL NO. 915-019 Parts Diagram

  • Title

1

Toro 772117

Transaxle Cover

$

$

Currently unavailable

2

Toro 780086

Bearing-Needle

$

$

Currently unavailable

3

Toro 770114

Transaxle Case

$

$

Currently unavailable

4

Toro 776300

Countershaft

$

$

Currently unavailable

6

Toro 778281

Spur Gear (16 Teeth)

$

$

Currently unavailable

7

Toro 778122A

Gear-Spur (22 teeth)

$

$

Currently unavailable

8

Toro 792133

Shift Key

$

$

Currently unavailable

9

Toro 784352

Shift Collar

$

$

Currently unavailable

10

Toro 784365

Shift Rod & Fork

$

$

Currently unavailable

11

Toro 778290

Bevel Gear & Bearing (44/16 Teeth)(Incl. Ref. #174)

$

$

Currently unavailable

12

Toro 778262

Bevel Pinion (14 Teeth)

$

$

Currently unavailable

13

Toro 778221

Gear Bevel

$

$

Currently unavailable

14

Toro 778068

Gear Pinion

$

$

Currently unavailable

15

Toro 778260

Gear-Ring

$

$

Currently unavailable

16

Toro 786150

Bearing Strip

$

$

Currently unavailable

17

Toro 78139

Drive Pin

$

$

Currently unavailable

18

Toro 786147

Neutral Spacer

$

$

Currently unavailable

20

Toro 792139

Ball (3/8" dia.)

$

$

Currently unavailable

22

Toro 792142

Spring

$

$

Currently unavailable

23

Toro 788061

Ring-Seal

$

$

Currently unavailable

25

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

26

Toro 792125

Retaining Ring (pkg of 2)

$

$

Currently unavailable

27

Toro 792035

Ring-Snap

$

$

Currently unavailable

28

Toro 788040

Ring-Retainer

$

$

Currently unavailable

29

Toro 780072

Washer

$

$

Currently unavailable

29A

Toro 780090

Washer

$

$

Currently unavailable

30

Toro 780108

Washer

$

$

Currently unavailable

30A

Toro 789145

Washer

$

$

Currently unavailable

30B

Toro 780178

Washer

$

$

Currently unavailable

31

Toro 780001

Washer

$

$

Currently unavailable

32

Toro 792001

O Ring

$

$

Currently unavailable

33

Toro 788076

O-Ring

$

$

Currently unavailable

34

Toro 780159

Bushing

$

$

Currently unavailable

36

Toro 790071

Brake Disk

$

$

Currently unavailable

37

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

38

Toro 790006

Brake Pad

$

$

Currently unavailable

39

Toro 786026

Dowel Pin

$

$

Currently unavailable

40

Toro 792076

Washer

$

$

Currently unavailable

41

Toro 790045

Brake Lever

$

$

Currently unavailable

42

Toro 792073

Ring Set (.020 O S)

$

$

Currently unavailable

43

Toro 792075

Locknut

$

$

Currently unavailable

44

Toro 790025

Nozzle-Carburetor

$

$

Currently unavailable

46

Toro 786086

Bracket

$

$

Currently unavailable

47

Toro 774930

Axle (16-3/4" Ig.)

$

$

Currently unavailable

48

Toro 774931

Axle (11-9/16" Ig.)(Incl. Ref. #26)

$

$

Currently unavailable

49

Toro 778124A

Gear-Spur, 30 Teeth

$

$

Currently unavailable

50

Toro 778123A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

51

Toro 778122A

Gear-Spur (22 teeth)

$

$

Currently unavailable

52

Toro 778273

Gear Spur 19t

$

$

Currently unavailable

54

Toro 778263

Spur Gear (11 Teeth)

$

$

Currently unavailable

56

Toro 778126A

Gear-Spur, 20 Teeth

$

$

Currently unavailable

57

Toro 778127A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

58

Toro 778128A

Gear-Spur (28 teeth)

$

$

Currently unavailable

59

Toro 778129A

Gear-Spur (30 teeth)

$

$

Currently unavailable

61

Toro 778265

Spur Gear (34Teeth)

$

$

Currently unavailable

65

Toro 780162

Washer

$

$

Currently unavailable

65A

Toro 780160

Washer

$

$

Currently unavailable

66

Toro 776299

Input Shaft (3.522" Ig.)

$

$

Currently unavailable

67

Toro 776352

Shifter & Brake Shaft

$

$

Currently unavailable

69

Toro 780161

Thrust Washer

$

$

Currently unavailable

71

Toro 788069

Cut Seal-Square

$

$

Currently unavailable

77

Toro 788078A

Inverted Retaining Ring

$

$

Currently unavailable

79

Toro 792144

Piston ASM (.020 O S)

$

$

Currently unavailable

90

Toro 788067b

Grease 32 Oz

$

$

Currently unavailable

150

Toro 510334

Gasket Eliminator

$

$

Currently unavailable

161

Toro 776302

Reverse Idler Assembly

$

$

Currently unavailable

174

Toro 780085

Needle Bearing

$

$

Currently unavailable
