71-12KS01 (C-120) - Toro Lawn Tractor (1977) SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

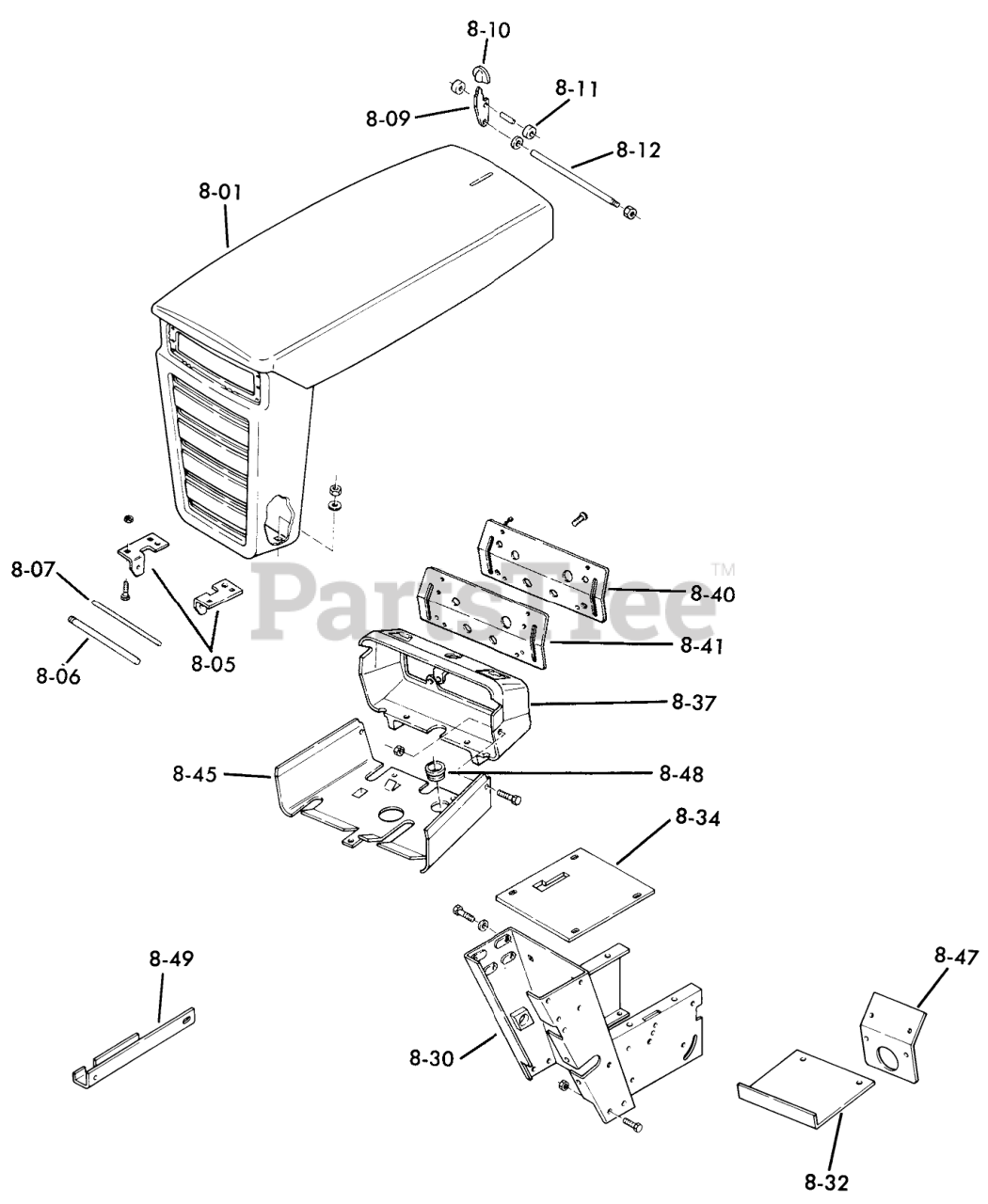

SHEET METAL AND COVERS Parts Diagram

  • Title

8-01

Toro 9699

Hood
(Superseded to 114289)

$

$

Not available

8-05

Toro 101732

GRILL PIVOT BRKT

$

$

Not available

8-05

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8-05

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

8-05

Toro 5667

GROMMET

$4.49

$

In Stock, Qty 20+

0

8-06

Toro 101710

GRILL PIVOT ROD

$

$

Not available

8-06

Toro 100398

E Ring-3/8
(Superseded to 105797)

$0.99

$

In Stock, Qty 7

0

8-07

Toro 101850

ROD-HOOD STOP

$18.99

$

In Stock, only 1 left!

0

8-07

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

8-09

Toro 5467

LEVER HOOD LATCH

$174.99

$

Usually ships in 3-6 days

0

8-09

Toro 933182

SPIROL PIN

$0.99

$

Usually ships in 3-6 days

0

8-10

Toro 5469

KNOB

$3.99

$

In Stock, Qty 5

0

8-11

Toro 5468

Roller

$

$

Not available

8-12

Toro 5522

Rod Latch
(Superseded to 88-2090)

$

$

Not available

8-12

Toro 5466

SPEED NUT

$

$

Not available

8-12

Toro 915932

USE 915932P NUT

$6.99

$

Usually ships in 3-6 days

0

8-30

Toro 105871

Assy-Hoodstand

$

$

Not available

8-30

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

8-30

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

8-30

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

8-30

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

8-30

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

8-30

Toro 938030

Bushing

$

$

Not available

8-32

Toro 104180

Cover-Dust

$

$

Currently unavailable

8-32

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

8-34

Toro 105526

Cover Plate

$

$

Not available

8-34

Toro 105867

Plate

$

$

Not available

8-34

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

8-34

Toro MW-4474

Clip

$

$

Currently unavailable

8-37

Toro 5450

Housing

$

$

Not available

8-37

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

8-37

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

8-40

Toro 104023

Dash Panel

$

$

Not available

8-40

Toro 104868

PLUG BUTTON

$

$

Not available

8-41

Toro 101841

BACK UP PLATE

$

$

Not available

8-41

Toro 5442

SPEED NUT

$

$

Not available

8-41

Toro 102168

SCREW BLACK

$

$

Not available

8-41

Toro 5606

Tape
(Superseded to 106556)

$

$

Not available

8-45

Toro 103877

Support-Tank

$

$

Not available

8-45

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

8-45

Toro 3023

SPEED CLIP

$

$

Not available

8-47

Toro 101344

Instrument Backet

$

$

Not available

8-47

Toro MW-4475

Clip

$

$

Currently unavailable

8-47

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

8-48

Toro 101971

Grommet

$

$

Not available

8-49

Toro 102810

Channel

$

$

Not available

8-49

Toro 9690

Spacer

$

$

Not available

8-49

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, Qty 6

0

8-49

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

8-49

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0
