71-16KS02 (C-160) - Toro Lawn Tractor (1977) 16 H.P. ENGINE K341S, SPEC 71128A Parts Diagram

Lawn Tractor

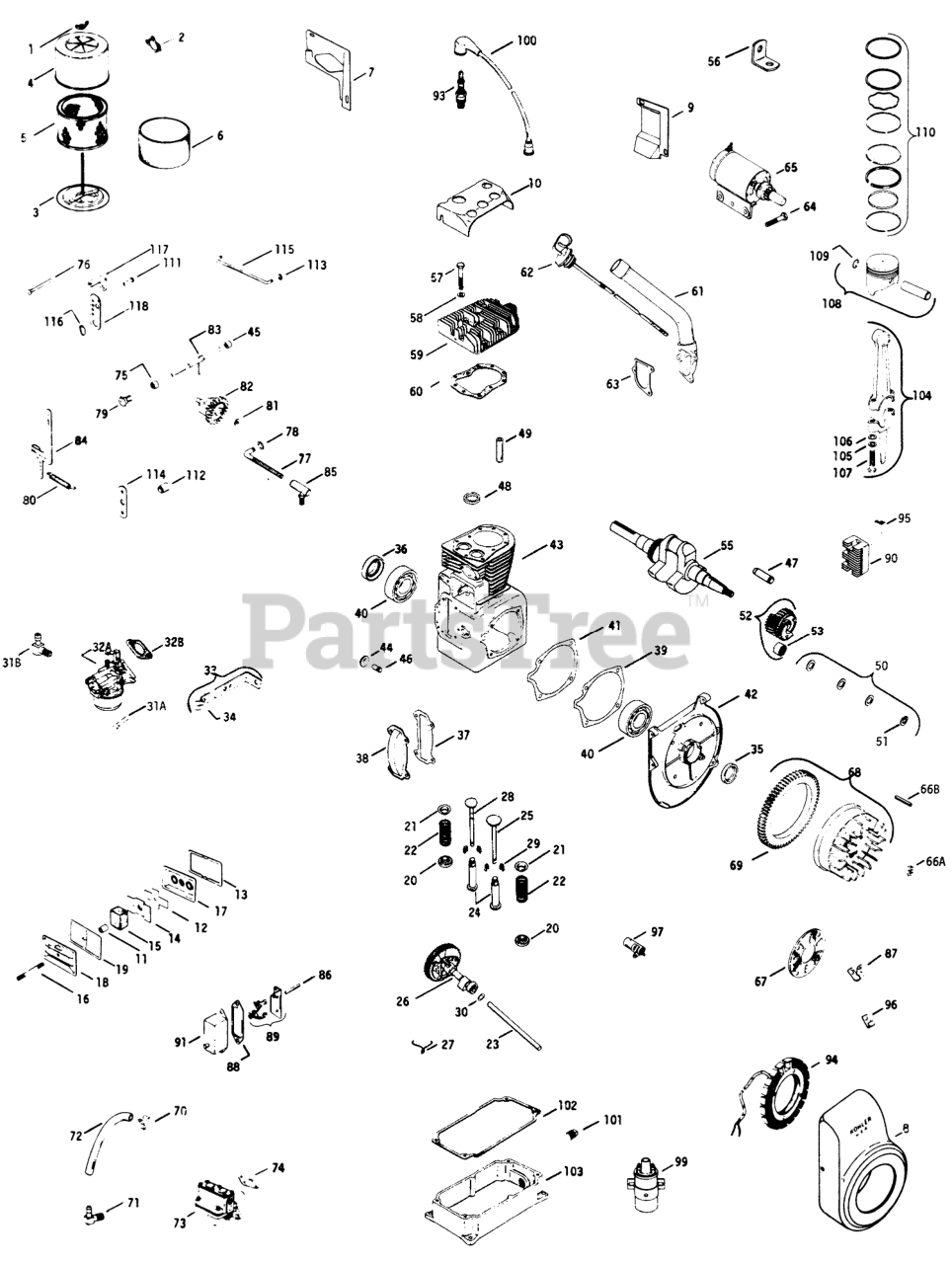

16 H.P. ENGINE K341S, SPEC 71128A Parts Diagram

  • Title

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

2

Kohler 275341

Gasket-Air Horn
(Superseded to 275341-S)

$6.49

$

In Stock, Qty 7

0

3

Toro 45_094_01

Base-Air Cleaner

$

$

Currently unavailable

4

Toro 45_082_01

Cover-Air Cleaner

$

$

Currently unavailable

5

Toro 45_083_02

Element

$

$

Currently unavailable

6

Toro 45_083_01

Element

$

$

Currently unavailable

7

Kohler 235652

BaffLe side air
(Superseded to 235652-S)

$22.99

$

Usually ships in 2-5 days

0

8

Kohler 236680

Housing-Blower
(Superseded to 47 027 46-S)

$510.99

$

Usually ships in 2-5 days

0

9

Toro 45_063_01

Baffle, cylinder

$

$

Currently unavailable

10

Toro 45_124_01

Baffle, head

$

$

Currently unavailable

11

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

In Stock, Qty 7

0

12

Kohler 235047

Reed
(Superseded to 235047-S)

$36.99

$

In Stock, only 1 left!

0

13

Kohler 235048

Gasket
(Superseded to 235048-S)

$7.49

$

In Stock, Qty 14

0

14

Kohler 235117

Baffle breather
(Superseded to 235117-S)

$7.99

$

In Stock, only 1 left!

0

15

Kohler 235118

Filter Breather
(Superseded to 235118-S)

$18.99

$

In Stock, Qty 7

0

16

Kohler 235551

Stud, valve cover
(Superseded to 235551-S)

$12.99

$

Usually ships in 2-5 days

0

17

Kohler 235631

Plate
(Superseded to 235631-S)

$39.99

$

Usually ships in 2-5 days

0

18

Kohler 275143

Cover valve
(Superseded to A-235418-S)

$

$

Not available

19

Kohler 275144

Gasket
(Superseded to 275144-S)

$7.99

$

Usually ships in 2-5 days

0

20

Kohler 230020

Rotator
(Superseded to 52 413 01)

$35.99

$

Usually ships in 2-5 days

0

21

Kohler 235011

Retainer-Spring
(Superseded to 235011-S)

$6.49

$

In Stock, Qty 15

0

22

Kohler 235168

Spring
(Superseded to 235168-S)

$

$

Not available

23

Kohler 235053

Pin (Service)
(Superseded to 47 380 09-S)

$

$

Not available

24

Kohler D-235327

Tappet
(Superseded to D-235327-S)

$

$

Not available

25

Kohler 235582

Valve-Intake
(Superseded to 235582-S)

$161.99

$

Usually ships in 2-5 days

0

26

Kohler E-235646

Camshaft-assembly
(Superseded to H-235646)

$

$

Not available

27

Toro 47-083-09

Spring, actuating

$

$

Currently unavailable

28

Kohler 237672

Valve exhaust
(Superseded to 237672-S)

$113.99

$

Usually ships in 2-5 days

0

29

Kohler 240013

Keeper, Valve

$

$

Not available

30

Kohler 275066

Spacer
(Superseded to 275066-S)

$8.49

$

Usually ships in 2-5 days

0

30

Kohler 275067

Spacer
(Superseded to 275067-S)

$8.49

$

In Stock, only 2 left!

0

31A

Kohler X-770-1

Screw sitd. hd.
(Superseded to X-770-1-S)

$

$

Not available

31B

Kohler X-391-1

Elbow
(Superseded to 25 155 02-S)

$14.99

$

Usually ships in 2-5 days

0

32A

Kohler A-237685

Carburetor-assembly
(Superseded to 47 053 11)

$

$

Not available

Kohler 231555

Repairkit
(Superseded to 25 757 01-S)

$22.99

$

In Stock, Qty 15

0

32B

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

In Stock, Qty 8

0

33

Kohler A-236921

Bracket, choke
(Superseded to A-236921-S)

$

$

Not available

34

Kohler 235778

Clip
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

35

Kohler X-271-30

Seal, Front OiI
(Superseded to 47 032 06)

$21.99

$

In Stock, only 4 left!

0

36

Kohler X-379-9

Seal rear oil
(Superseded to 47 032 07)

$

$

Not available

37

Kohler 235025

Gasket
(Superseded to 235025-S)

$10.99

$

In Stock, Qty 7

0

38

Kohler 235026

Cover
(Superseded to 235026-S)

$

$

Not available

39

Kohler 235070

Gasket
(Superseded to 235070-S)

$7.49

$

In Stock, only 3 left!

0

40

Kohler 235376

Ball Bearing
(Superseded to 235376-S)

$232.99

$

Usually ships in 2-5 days

0

41

Kohler 235757

Gasket
(Superseded to 235757-S)

$12.99

$

Usually ships in 2-5 days

0

42

Toro 45_56_02

Plate, bearing

$

$

Currently unavailable

43

Block, cylinder-assembly (Use 45_782_02 Miniblock)

$

$

Not available

44

Kohler X-230-11

Plug
(Superseded to X-230-11-S)

$2.99

$

In Stock, only 2 left!

0

45

Kohler 234866

Bearing
(Superseded to 234866-S)

$9.49

$

Usually ships in 2-5 days

0

46

Kohler 235125-S

Shaft-Govemor

$98.99

$

Usually ships in 2-5 days

0

47

Kohler 236559

Shaft
(Superseded to 236559-S)

$

$

Not available

48

Kohler 230265

Insert
(Superseded to 230265-S)

$

$

Not available

49

Kohler 235007-S

Guide Valve

$

$

Not available

50

Toro 47-755-01

Kit-Spacer

$

$

Currently unavailable

51

Kohler X-269-34

Retainer
(Superseded to X-269-34-S)

$3.49

$

In Stock, only 2 left!

0

52A

Toro 236507

Gear-assembly

$

$

Currently unavailable

53

Kohler 236506

Bearing,needle
(Superseded to 236506-S)

$78.99

$

Usually ships in 2-5 days

0

55

Toro 45-014-01

Crankshaft

$

$

Currently unavailable

56

Kohler 236742

Lift Cable
(Superseded to 47 445 02-S)

$6.49

$

Usually ships in 2-5 days

0

57

Kohler 270158

Screw
(Superseded to 270158-S)

$4.49

$

Usually ships in 2-5 days

0

57

Kohler 270721

Screw-H.C.
(Superseded to 270721-S)

$7.49

$

In Stock, only 3 left!

0

58

Kohler 270889

Washer
(Superseded to 270889-S)

$8.49

$

In Stock, Qty 9

0

59

Toro 45-015-04

Head, cylinder

$

$

Currently unavailable

60

Toro 45-052-01

Gasket, head

$

$

Currently unavailable

61

Kohler 236964

Tube, fill
(Superseded to 236964-S)

$

$

Not available

62

Kohler 237052

Dipstick
(Superseded to 237052-S)

$202.99

$

Usually ships in 2-5 days

0

63

Kohler 237064

Gasket
(Superseded to 237064-S)

$10.99

$

In Stock, only 2 left!

0

64

Kohler 234948

Screw
(Superseded to 234948-S)

$9.49

$

Usually ships in 2-5 days

0

65

Toro 45-098-01

Starter-assembly

$

$

Currently unavailable

Kohler 237367

Kit, Brush & Spring
(Superseded to 48 755 15)

$

$

Not available

Kohler X-25-88

Washer
(Superseded to X-25-104)

$

$

Not available

66A

Kohler X-119-14

Nut
(Superseded to 25 100 02-S)

$

$

Not available

66B

Kohler X-286-15

Key
(Superseded to X-286-17-S)

$3.49

$

In Stock, only 2 left!

0

67

Toro 47_162_03

Screen grass

$

$

Currently unavailable

68

Toro 47_025_02

Flywheel-assembly

$

$

Currently unavailable

69

Kohler 236285

Gear Ring

$

$

Not available

70

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, Qty 12

0

71

Kohler X-391-1

Elbow
(Superseded to 25 155 02-S)

$14.99

$

Usually ships in 2-5 days

0

72

Kohler X-697-1

Line Fuel
(Superseded to X-810-3)

$

$

Not available

73

Kohler A-236205

Pump, fuel
(Superseded to A-236205-S)

$272.99

$

In Stock, only 1 left!

0

74

Toro 47-041-01

Gasket, fuel pump

$

$

Currently unavailable

75

Kohler X-400-80

Spacer
(Superseded to X-400-80-S)

$9.49

$

Usually ships in 2-5 days

0

76

Kohler 231355

Pin-GovemorStop
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

77

Kohler 235277

Rod ball joint
(Superseded to 235277-S)

$35.99

$

Usually ships in 2-5 days

0

78

Kohler 235278

Retainer Rod
(Superseded to 235278-S)

$6.49

$

In Stock, only 1 left!

0

79

Kohler 235476

Bushing
(Superseded to 235476-S)

$

$

Not available

80

Kohler 235496

Spring-Governor
(Superseded to 235496-S)

$16.99

$

In Stock, only 1 left!

0

81

Kohler 237022

Washer
(Superseded to 237022-S)

$7.49

$

Usually ships in 2-5 days

0

82

Kohler A-237031

Gear, Governor
(Superseded to A-235743-S)

$78.99

$

Usually ships in 2-5 days

0

83

Kohler 237455

Shaft, Governor
(Superseded to A-235256-S)

$46.99

$

Usually ships in 2-5 days

0

84

Kohler A-237653

Lever, Governor
(Superseded to A-237653-S)

$79.99

$

In Stock, only 1 left!

0

85

Kohler 237130

Ball Joint
(Superseded to 237130-S)

$27.99

$

Usually ships in 2-5 days

0

86

Kohler X-489-1

Rod, breaker
(Superseded to 46 411 01)

$

$

Not available

87

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

88

Kohler 220174

Gasket, Cover
(Superseded to 52 041 11)

$3.49

$

In Stock, Qty 8

0

89

Kohler A-220474

Breaker
(Superseded to 47 150 03-S)

$23.99

$

In Stock, Qty 8

0

90

Kohler 237335

Regulator
(Superseded to 41 403 06)

$226.99

$

Usually ships in 2-5 days

0

91

Kohler A-220136

Cover breaker
(Superseded to A-220136-S)

$

$

Not available

93

Kohler 235040-S

Plug, spark
(Superseded to 235041-S)

$20.99

$

Usually ships in 2-5 days

0

94

Kohler 237878

Stator
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 16

0

95

Kohler 237429

Connector
(Superseded to 237429-S)

$

$

Not available

96

Kohler 275182

Clip
(Superseded to 275303-S)

$7.49

$

In Stock, only 1 left!

0

97

Kohler 230722

Condenser
(Superseded to 230722-S)

$31.99

$

In Stock, Qty 5

0

99

Kohler 231281

Coil
(Superseded to 231281-S)

$149.99

$

In Stock, only 2 left!

0

100

Kohler 238057

Kit, Hi-Tension
(Superseded to 238057-S)

$

$

Not available

101

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, Qty 14

0

102

Kohler 235057

Gasket
(Superseded to 235057-S)

$10.99

$

In Stock, only 2 left!

0

103

Kohler 237763

Base, oil pan
(Superseded to 237763-S)

$455.99

$

Usually ships in 2-5 days

0

104

Toro 45-067-01

Rod, conn.-assembly (Std.)

$

$

Currently unavailable

Toro 45-067-02

Rod conn.-assem. (.010 U.S.)

$

$

Currently unavailable

105

Kohler X-22-1

Washer
(Superseded to X-22-1-S)

$3.99

$

Usually ships in 2-5 days

0

106

Kohler 235003

Washer

$

$

Not available

107

Toro 47-086-01

Screw, connecting rod

$

$

Currently unavailable

108

Toro 45-074-01

Piston-assembly (Std.)(Includes pin & retainers)

$

$

Currently unavailable

Toro 45-074-02

Piston-assembly (.003)(Includes pin & retainers)

$

$

Currently unavailable

Toro 45-074-03

Piston-assembly (.010)(Includes pin & retainers)

$

$

Currently unavailable

Toro 45-074-04

Piston-assembly (.020)(Includes pin & retainers)

$

$

Currently unavailable

Toro 45-074-05

Piston-assembly (.030)(Includes pin & retainers)

$

$

Currently unavailable

109

Kohler 235811

Pin, Retainer
(Superseded to 47 018 01)

$7.49

$

In Stock, only 2 left!

0

110

Toro 45-108-01

Ring set-Std. & .003

$

$

Currently unavailable

Toro 45-108-02

Ring set-.010

$

$

Currently unavailable

Toro 45-108-03

Ring set-.020

$

$

Currently unavailable

Toro 45-108-04

Ring set-.030

$

$

Currently unavailable

111

Kohler 231052

Clamp, swivel wire
(Superseded to 48 755 10)

$22.99

$

Usually ships in 2-5 days

0

112

Kohler 235085

Spacer
(Superseded to 235085-S)

$12.99

$

Usually ships in 2-5 days

0

113

Kohler 235278

Retainer Rod
(Superseded to 235278-S)

$6.49

$

In Stock, only 1 left!

0

114

Kohler 235550

Bellcrank
(Superseded to 47 257 01-S)

$

$

Not available

115

Kohler 235756

Rod, throttle
(Superseded to 235756-S)

$21.99

$

Usually ships in 2-5 days

0

116

Kohler 275690

Washer
(Superseded to 275690-S)

$6.49

$

In Stock, only 2 left!

0

117

Kohler 235084

Spacer
(Superseded to 235084-S)

$

$

Not available

118

Kohler 235086

Bracket
(Superseded to 235086-S)

$

$

Not available

Toro 45_004_01

Gasket Set

$

$

Currently unavailable

Toro 45_782_02

Miniblock

$

$

Currently unavailable

Toro 45_522_12

Shortblock

$

$

Currently unavailable

Toro 71179

Service Engine

$

$

Currently unavailable
