71190 (13-38 XL) - Toro Lawn Tractor (SN: 079000001 - 079999999) (1997) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

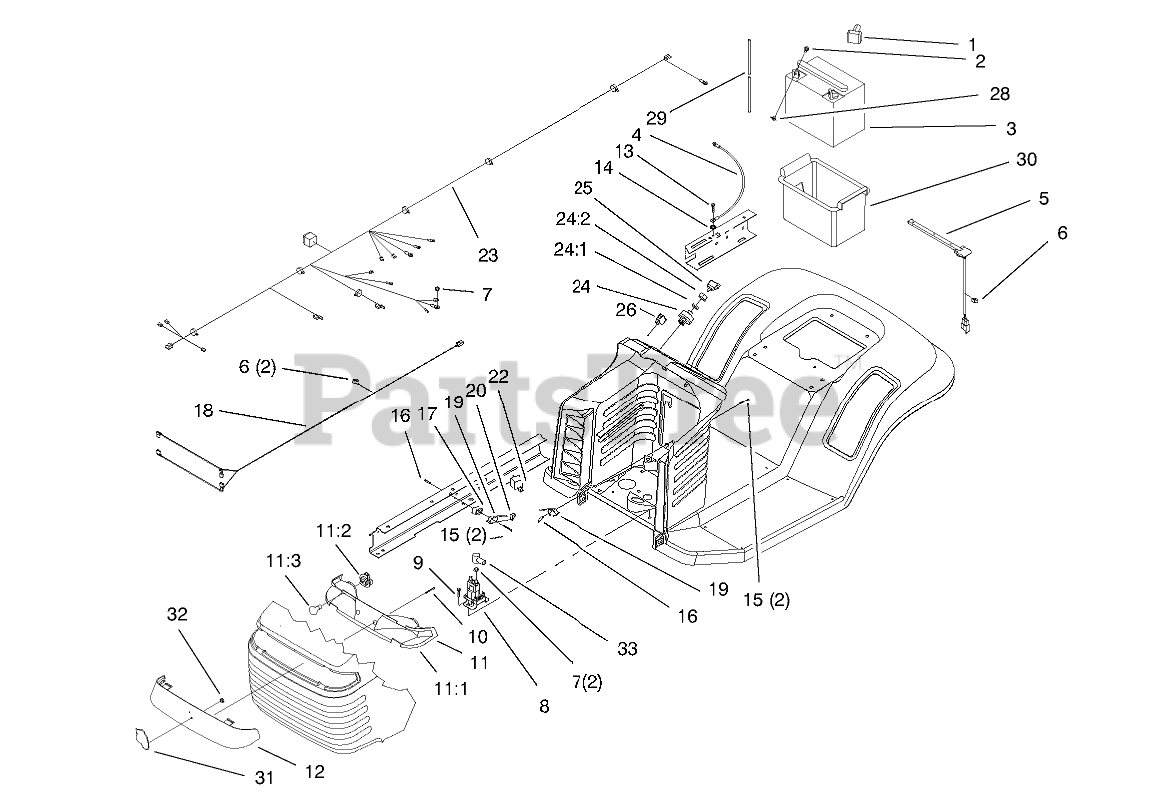

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 80-2600

Battery
(Superseded to 105-1692)

$

$

Not available

4

Toro 44-8110

WIRE ASM

$27.99

$

Usually ships in 3-6 days

0

5

Toro 38-1420

SWITCH-SEAT

$

$

Not available

6

Toro 702366

CLIP-RETAINER, WIRE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

8

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

10

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

11

Toro 88-3970

HEADLIGHT REFLECTOR ASM

$152.99

$

Usually ships in 3-6 days

0

11:1

Toro 93-8741

REFLECTOR-LIGHT

$

$

Not available

11:2

Toro 111686

SOCKET-LIGHT
(Superseded to 116262)

$47.99

$

Usually ships in 3-6 days

0

11:3

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

12

Toro 88-3960

LENS-HEADLIGHT

$67.99

$

In Stock, only 1 left!

0

13

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 93-0539

SCREW-HH

$0.99

$

In Stock, only 1 left!

0

16

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

17

Toro 88-4880

SPACER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 88-4320

HARNESS-WIRE, LIGHTS

$65.99

$

Usually ships in 3-6 days

0

19

Toro 88-9932

SWITCH-MICRO

$36.99

$

In Stock, only 4 left!

0

20

Toro 93-3240

PLUNGER-SEAL

$

$

Not available

22

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

23

Toro 93-3810

WIRE HARNESS

$

$

Not available

24

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

24:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

24:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

25

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

26

Toro 92-8875

SWITCH-ROCKER

$17.99

$

In Stock, only 1 left!

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

29

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

30

Toro 88-4040

BOX-BATTERY

$36.99

$

Usually ships in 3-6 days

0

31

Toro 80-2240

EMBLEM-GRILLE WHEELHORSE

$

$

Not available

32

Toro 3290-299

CLIP

$

$

Not available

33

Toro 94-5362

BOOT-TERMINAL INSULATOR

$4.49

$

In Stock, only 1 left!

0
