71191 (13-38 HXL) - Toro Lawn Tractor (SN: 049000001 - 049999999) (1994) CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

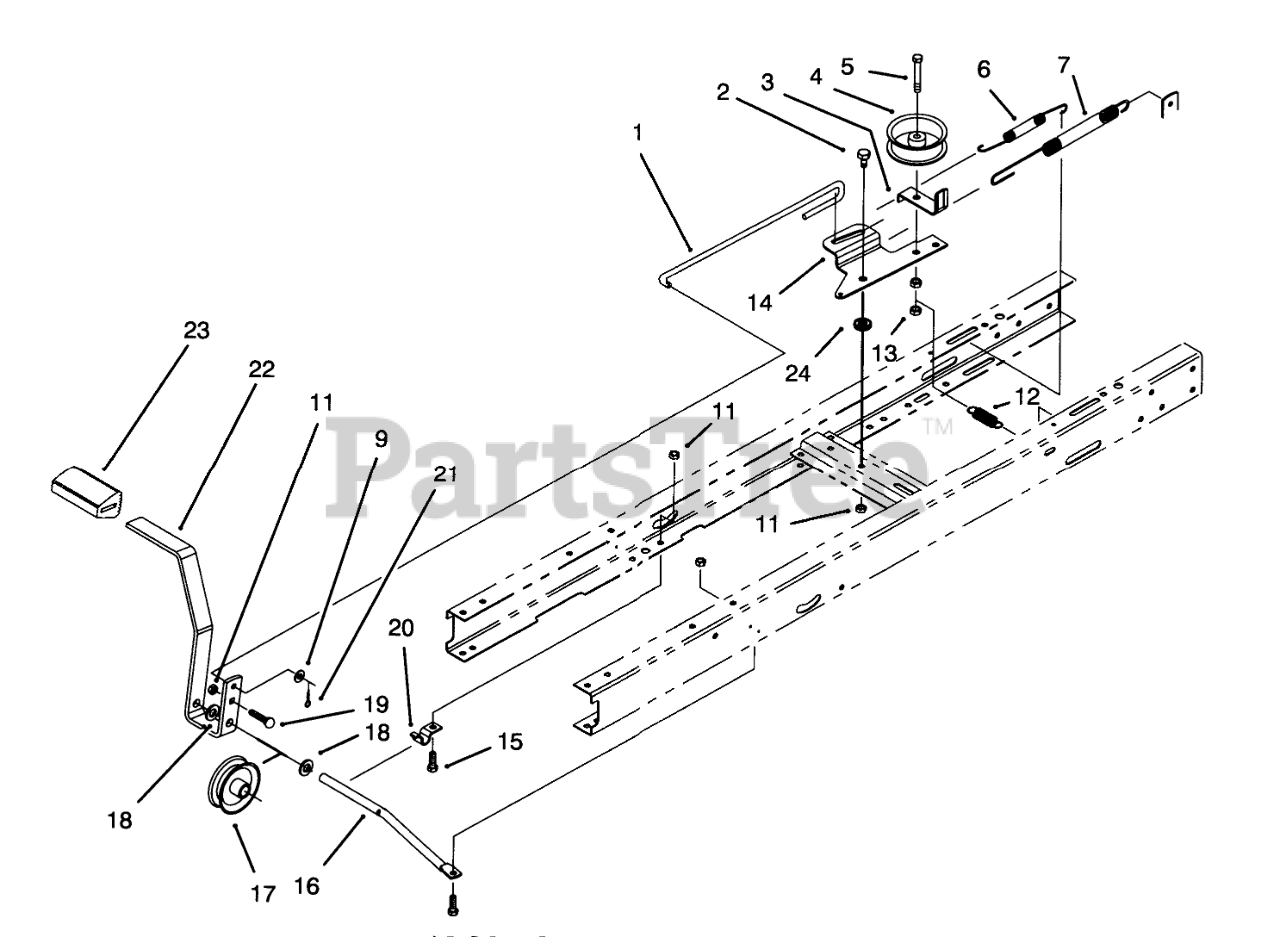

CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 88-5270

ROD-CLUTCH/BRAKE

$

$

Not available

2

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 1 left!

0

3

Toro 88-5560

GUIDE-IDLER, BELT

$13.99

$

Usually ships in 3-6 days

0

4

Toro 88-5680

Idler Pulley
(Superseded to 104-4180)

$73.99

$

In Stock, only 4 left!

0

5

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

6

Toro 27-8890

SPRING-EXTENSION

$41.99

$

Usually ships in 3-6 days

0

7

Toro 88-6140

BRAKE SPRING

$

$

Not available

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 88-6330

SPRING-EXTENSION

$8.99

$

In Stock, only 3 left!

0

13

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

14

Toro 88-6070

ARM-IDLER

$35.99

$

Usually ships in 3-6 days

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 88-5500

ROD-PIVOT, PEDAL

$36.99

$

Usually ships in 3-6 days

0

17

Toro 88-4700

PULLEY, CABLE

$24.99

$

In Stock, only 4 left!

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 88-4810

CLAMP-PIVOT, SHIFT

$3.49

$

Usually ships in 3-6 days

0

21

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

22

Toro 88-5000

Pedal-Clutch/Brake
(Superseded to 88-5000-03)

$

$

Not available

23

Toro 65-2920

PAD-PEDAL

$33.99

$

Usually ships in 3-6 days

0

24

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0
