71191 (13-38 HXL) - Toro Lawn Tractor (SN: 049000001 - 049999999) (1994) HYDROGEAR TRANSAXLE MODEL NO. 316-0500 Parts Diagram

Lawn Tractor

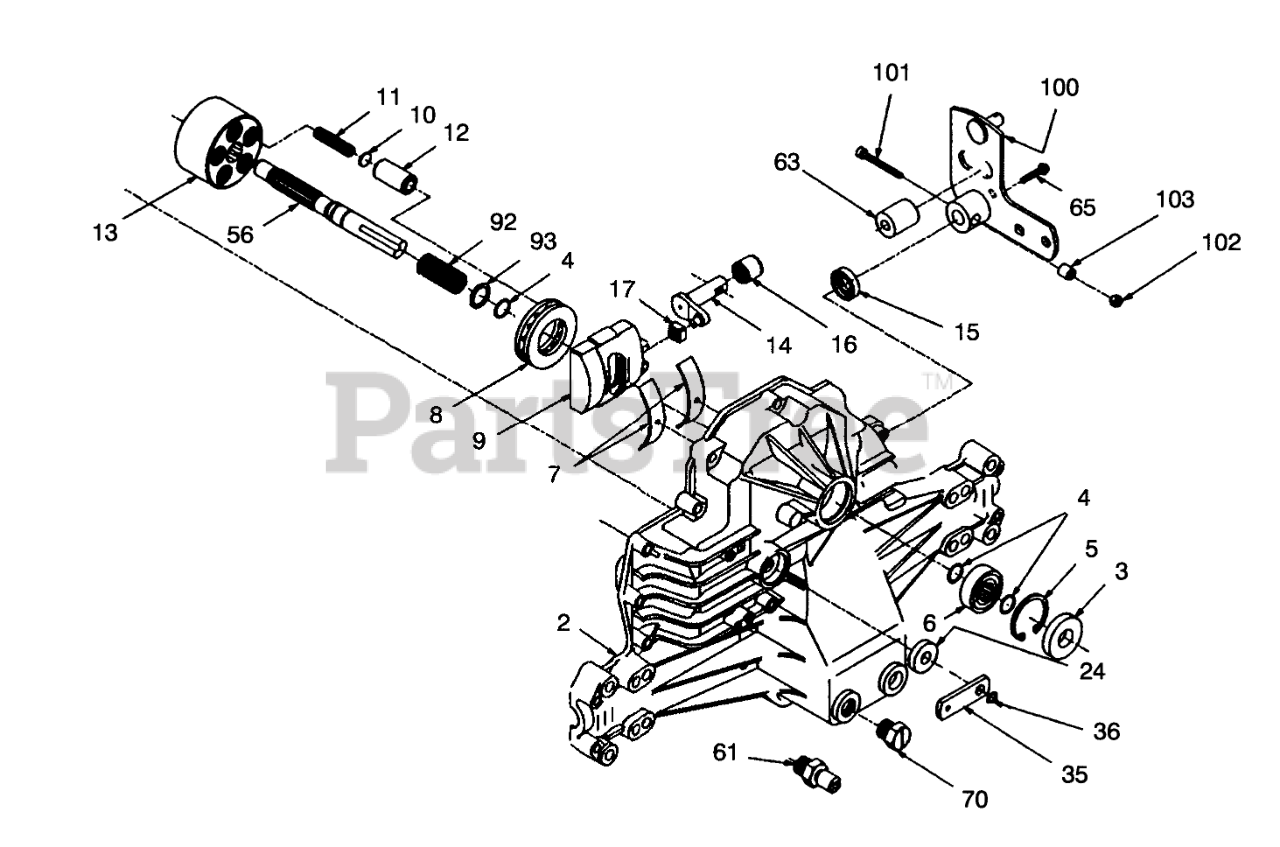

HYDROGEAR TRANSAXLE MODEL NO. 316-0500 Parts Diagram

  • Title

2

Housing-Upper

$

$

Not available

3

Seal-Lip

$

$

Not available

4

Toro 92-6543

SEAL-LIP

$19.99

$

Usually ships in 3-6 days

0

6

Bearing-Shaft Ball

$

$

Not available

7

Bearing-Cradle

$

$

Not available

9

Swashplate-Variable

$

$

Not available

10

Washer-Piston Thrust

$

$

Not available

11

Spring-Piston

$

$

Not available

13

Block Cylinder (Motor)

$

$

Not available

14

Arm-Trunnion

$

$

Not available

15

Toro 92-6544

SEAL-LIP

$15.99

$

Usually ships in 3-6 days

0

16

Bearing-Trunnion Journal

$

$

Not available

17

Guide-Slot

$

$

Not available

24

Toro 92-6545

SEAL-LIP

$16.99

$

Usually ships in 3-6 days

0

26

Plate-Bypass

$

$

Not available

35

Toro 92-6547

ARM - BYPASS

$

$

Not available

36

Toro 936109

RING-RETAINING

$11.99

$

Usually ships in 3-6 days

0

61

Toro 92-8859

BREATHER ASSEMBLY

$

$

Not available

65

Bolt

$

$

Not available

70

Plug-Plastic

$

$

Not available

92

Spring-Block

$

$

Not available

93

Washer-Block Thrust

$

$

Not available

100

Toro 92-6015

Control Arm Ass-y
(Superseded to 92-9792)

$

$

Not available

101

Toro 3274-59

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

102

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

103

Toro 86-4270

LOCK SPACER

$26.99

$

Usually ships in 3-6 days

0
