71227 (16-38 HXL) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) GOVERNOR ASSEMBLY BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

Lawn Tractor

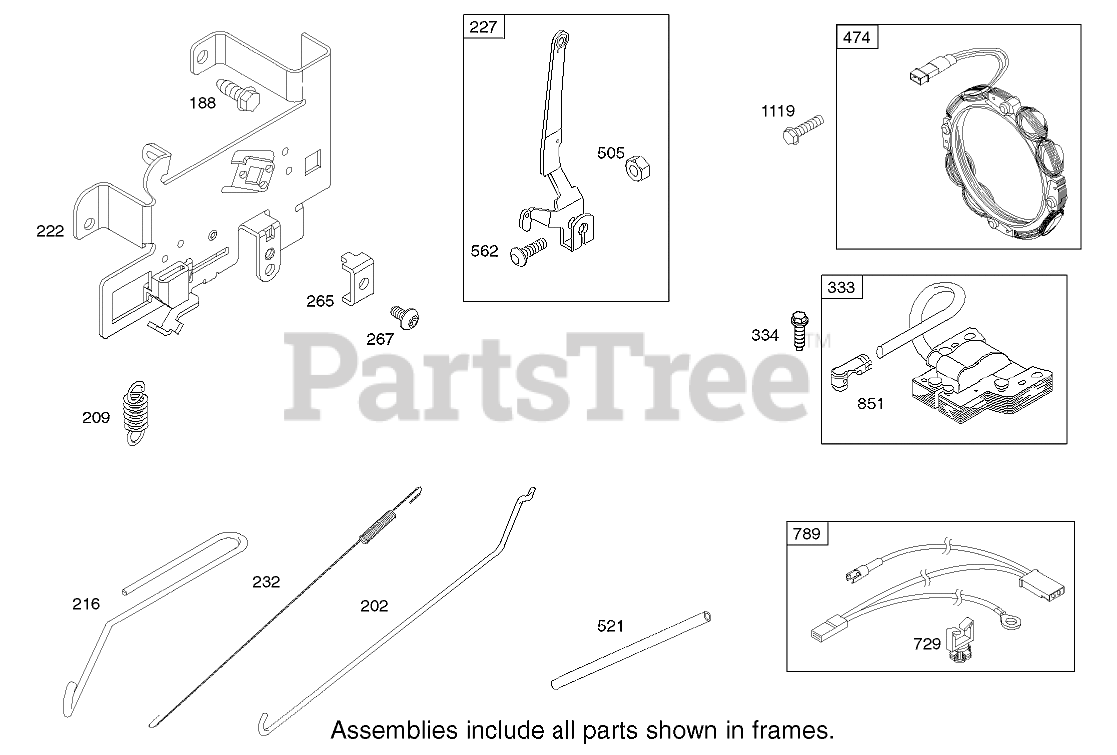

GOVERNOR ASSEMBLY BRIGGS AND STRATTON MODEL 286H77-0121-E1 Parts Diagram

  • Title

188

Briggs & Stratton 691693

Screw

$3.99

$

In Stock, only 2 left!

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

$9.49

$

In Stock, Qty 8

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 691840

Link-Choke

$8.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 5

0

227

Briggs & Stratton 691374

Lever-Control, Governor

$26.99

$

In Stock, Qty 6

0

232

Briggs & Stratton 691842

Spring-Link, Governor

$11.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

Clamp-Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 695134

Screw
(Superseded to 792629)

$3.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

$3.49

$

In Stock, Qty 20+

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

$101.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

Nut

$3.49

$

In Stock, Qty 11

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

Screw

$4.49

$

In Stock, Qty 19

0

729

Briggs & Stratton 691335

Clip?Wire

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

Wiring-Harness

$35.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1119

Briggs & Stratton 691183

Screw

$3.49

$

Usually ships in 2-12 days

0
