71227 (16-38 HXL) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) REAR BODY AND SEAT ASSEMBLY Parts Diagram

Lawn Tractor

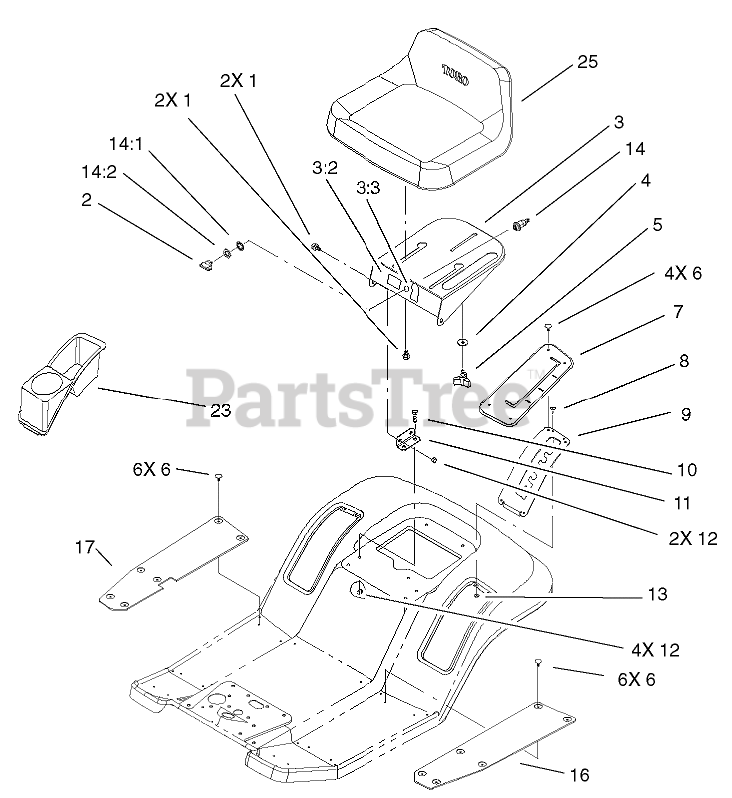

REAR BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 1 left!

0

2

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

3

Toro 99-5831

Seat Support ASM (only on: 71242)

$70.99

$

Usually ships in 3-6 days

0

3

Toro 99-5830

Seat Support ASM (only on: 71227)

$87.99

$

Usually ships in 3-6 days

0

3:2

Toro 99-2986

Decal-Danger (only on: 71242)

$8.99

$

Usually ships in 3-6 days

0

3:2

Toro 99-2985

Danger-Decal (only on: 71227)

$

$

Not available

3:3

Toro 99-5339

Decal (only on: 71227)

$

$

Not available

3:3

Toro 99-5340

Decal-Switch (only on: 71242)

$4.49

$

Usually ships in 3-6 days

0

4

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

5

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

6

Toro 3290-479

FASTENER-PANEL

$3.99

$

In Stock, Qty 20+

0

7

Toro 93-7657

Cover-HOC (only on: 71242)

$

$

Not available

7

Toro 88-5170

Cover-HOC (only on: 71227)

$35.99

$

Usually ships in 3-6 days

0

8

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 12

0

9

Toro 88-5030-03

GATE-HOC

$34.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 88-4820-03

BRACKET-PIVOT, SEAT

$6.99

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

14

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 15

0

14:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

14:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

16

Toro 88-5240

MAT-FOOT, LH

$

$

Not available

17

Toro 88-5230

MAT-FOOT, RH

$52.99

$

Usually ships in 3-6 days

0

23

Toro 88-4990

TRAY-FENDER

$36.99

$

Usually ships in 3-6 days

0

25

Toro 88-3950

SEAT
(Superseded to 88-4330)

$424.99

$

Usually ships in 3-6 days

0
