71228 (17-44 HXL) - Toro Lawn Tractor (SN: 220000001 - 220010000) (2002) BELT ASSEMBLY Parts Diagram

Lawn Tractor

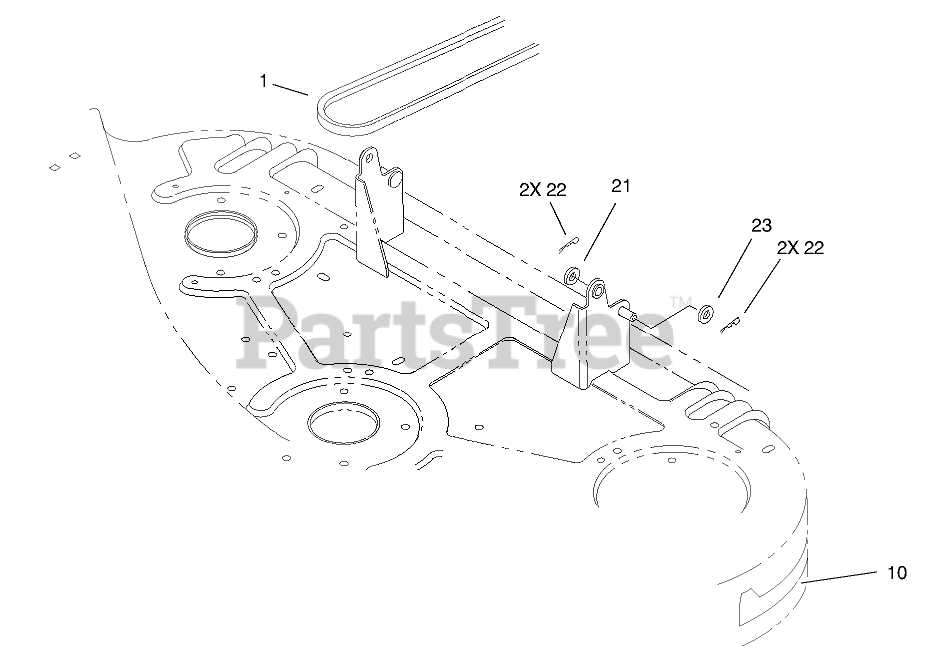

BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 93-3884

V BELT-DECK

$78.99

$

In Stock, Qty 5

0

10

Toro 100-6204

DECAL - RECYCLER, 44"
(Superseded to 106-6408)

$

$

Not available

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

23

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 17

0
