71228 (17-44 HXL) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) CHUTE AND RECYCLER ASSEMBLY Parts Diagram

Lawn Tractor

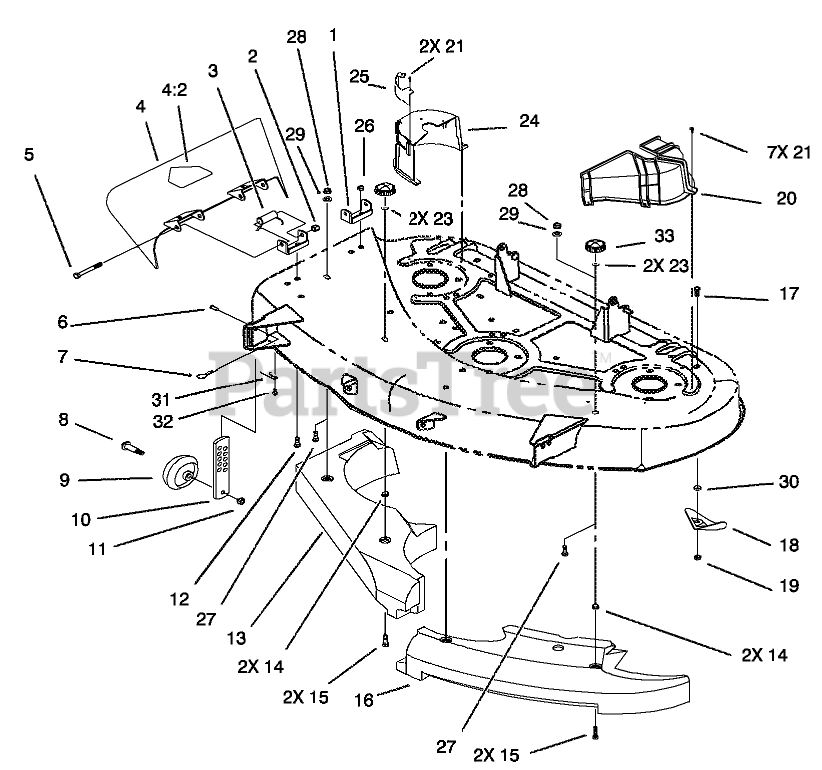

CHUTE AND RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

2

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

3

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

4

Toro 100-6206

DEFLECTOR ASM

$

$

Not available

4:2

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

5

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

6

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

7

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, Qty 20+

0

9

Toro 701756

WHEEL-GAGE

$7.99

$

In Stock, Qty 20+

0

10

Toro 93-8010

PLATE-GAGE, WHEEL

$66.99

$

In Stock, only 3 left!

0

11

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

12

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 93-7651

BAFFLE-RH

$304.99

$

Usually ships in 3-6 days

0

14

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

15

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Toro 93-7652

BAFFLE-LH

$304.99

$

Usually ships in 3-6 days

0

17

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 84-5760

PLATE-KICKER

$13.99

$

Usually ships in 3-6 days

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 93-3866

COVER-BELT, LH

$

$

Not available

21

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

24

Toro 93-3865

COVER-BELT, RH

$30.99

$

In Stock, only 2 left!

0

25

Toro 93-3876-03

INSERT-BELT COVER

$17.99

$

Usually ships in 3-6 days

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

30

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

31

Toro 94-1981

SPRING-GAGE, WHEEL

$7.49

$

In Stock, only 2 left!

0

32

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 94-5583

KNOB

$13.99

$

In Stock, only 2 left!

0
