71245 (14-38 HXLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) CYLINDER ASSEMBLY BRIGGS AND STRATTON MODEL 280H07-0160-E1 Parts Diagram

Lawn Tractor

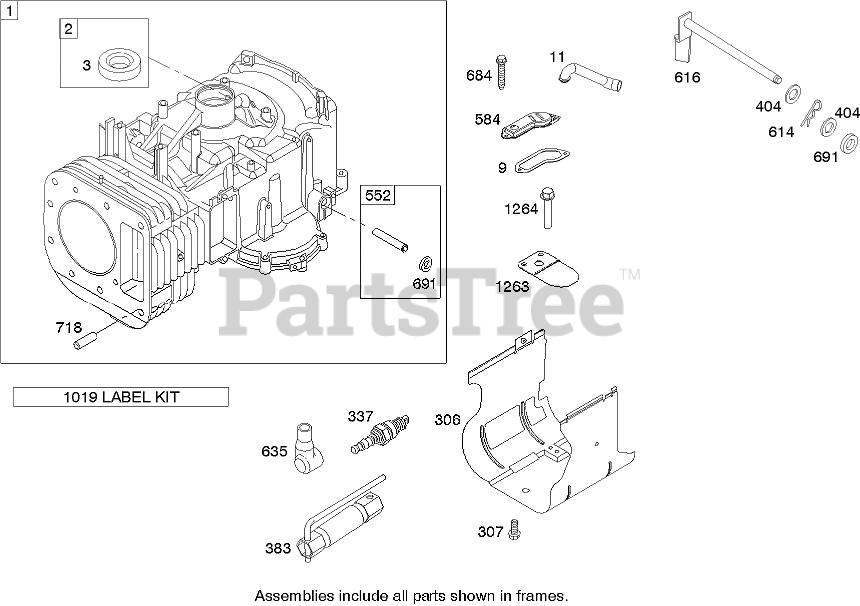

CYLINDER ASSEMBLY BRIGGS AND STRATTON MODEL 280H07-0160-E1 Parts Diagram

  • Title
1

Briggs & Stratton 697132

Cylinder ASM
(Superseded to 794087)

Note: Obtain parts from www.briggsandstratton.com

$425.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 4 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 697113

Tube-Breather
(Superseded to 794683)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 697761

Short Block

Note: Not illustrated

$597.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 697107

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

337

Briggs & Stratton 691043

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 5

0

404

Briggs & Stratton 691691

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

552

Briggs & Stratton 697144

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697112

Cover-Passage, Breather
(Superseded to 794682)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 3 left!

0

614

Briggs & Stratton 691620

Pin-Cotter

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 5

0

635

Briggs & Stratton 691909

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 13

0

684

Briggs & Stratton 697157

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 11

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 11

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 697143

Label Kit
(Superseded to 699459)

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

1263

Briggs & Stratton 697124

Reed-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 8

0

1264

Briggs & Stratton 697104

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days
