71257 (XL 320) - Toro Lawn Tractor (SN: 290000001 - 290999999) (2009) ENGINE AND MUFFLER ASSEMBLY Parts Diagram

Lawn Tractor

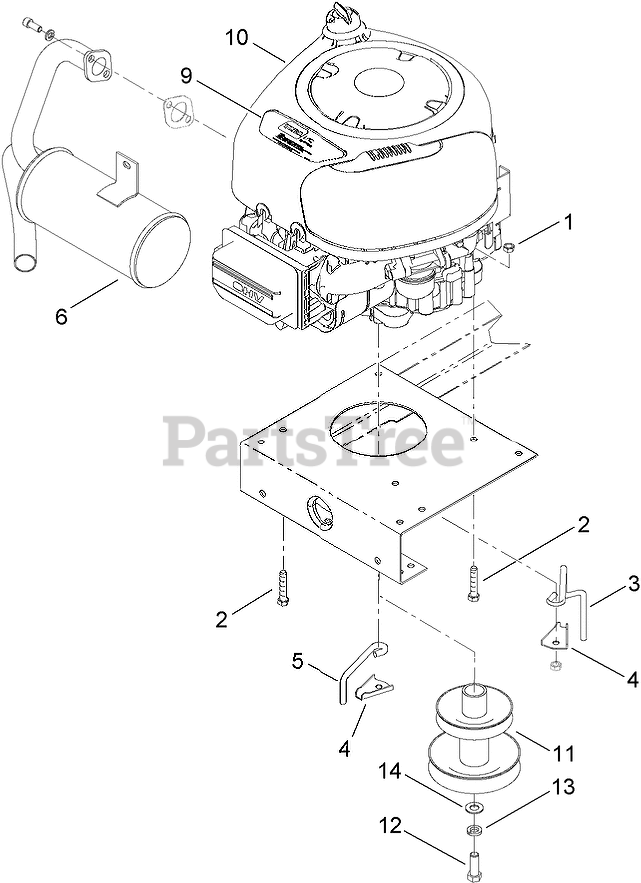

ENGINE AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

3

Toro 88-6060

GUIDE-BELT, LH

$19.99

$

Usually ships in 3-6 days

0

4

Toro 76-3820

ANCHOR-GUIDE, BELT

$2.49

$

Usually ships in 3-6 days

0

5

Toro 88-5490

GUIDE-BELT, RH

$16.99

$

Usually ships in 3-6 days

0

6

Toro 110-8640

MUFFLER-EXHAUST

$

$

Not available

9

Toro 107-4904

DECAL-ENGINE, INTEK

$

$

Not available

10

ENGINE-B & S, 21B907-0159-B1

Note: Not serviced separately

$

$

Not available

10

ENGINE-B & S, 21B907-0159-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

11

Toro 88-5050

PULLEY-ENGINE

$156.99

$

Usually ships in 3-6 days

0

12

Toro 62-3760

SCREW-HH

$9.99

$

Usually ships in 3-6 days

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0
