71282 (17-44 HXLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

Lawn Tractor

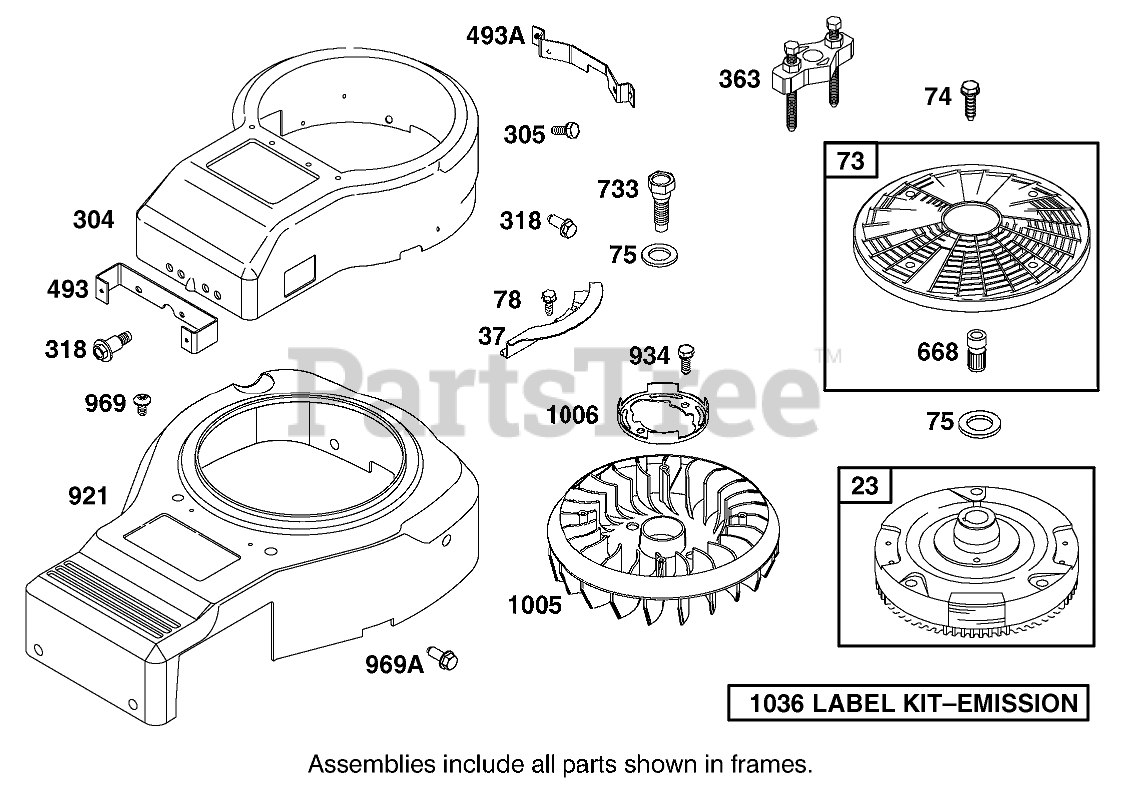

ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

$

$

Not available

37

Briggs & Stratton 690456

Flywheel Guard

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 494439

Screen-Rotating

$53.99

$

In Stock, only 1 left!

0

75

Briggs & Stratton 225136

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

74

Briggs & Stratton 94821

Screw-Sem
(Superseded to 691674)

$2.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 690497

Blower Housing

$199.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

318

Briggs & Stratton 692127

Screw (Fuel Tank)

$6.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 224968

Bracket-Front
(Superseded to 690493)

$22.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 224969

Bracket-Rear
(Superseded to 690494)

$20.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 805402

Spacer
(Superseded to 691500)

$7.49

$

In Stock, only 1 left!

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

733

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

921

Briggs & Stratton 690496

Cover-Blower Housing

$93.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

969

Briggs & Stratton 690365

Screw-Torx

$2.99

$

In Stock, only 1 left!

0

969A

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 281400

Fan-Flywheel
(Superseded to 695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694332

Emission Label Kit

$3.49

$

Usually ships in 2-12 days

0
