71282 (17-44 HXLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

Lawn Tractor

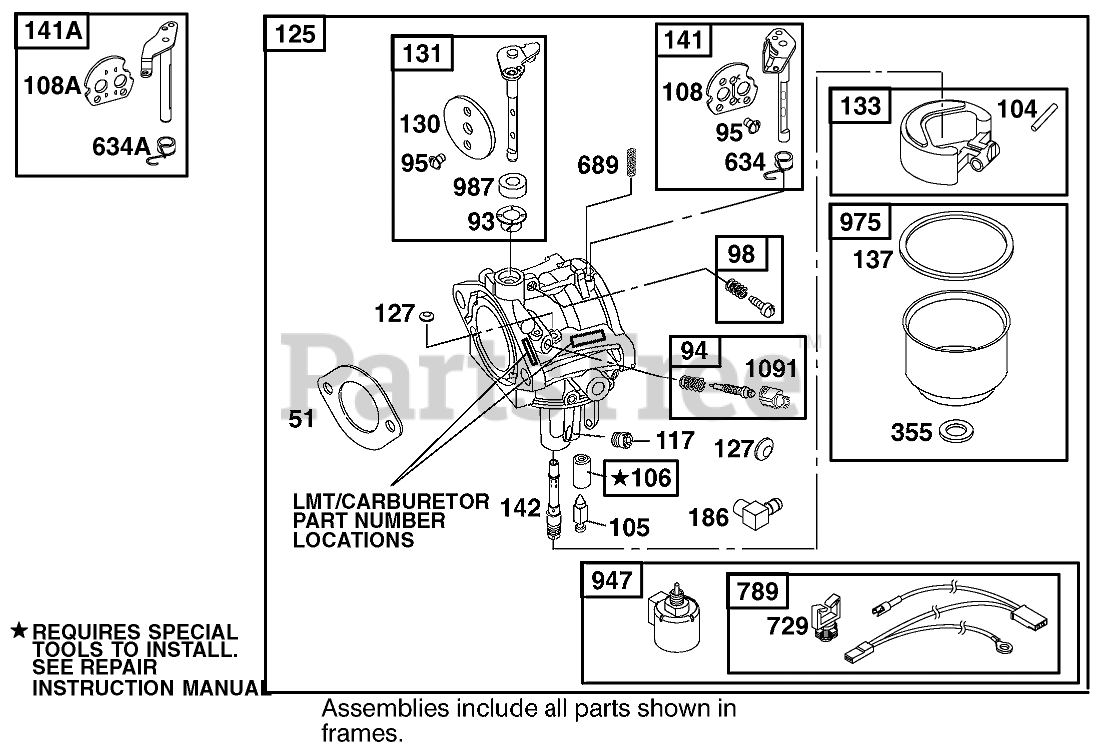

ENGINE BRIGGS & STRATTON MODEL 312777-0128-E1 Parts Diagram

  • Title

51

Briggs & Stratton 273650

Gasket-Intake
(Superseded to 692137)

Note: Included in Carburetor Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 281346

Bushing-Throttle
(Superseded to 690602)

Note: Included in Carburetor Kit-Ref. 121.

$9.49

$

In Stock, only 1 left!

0

94

Briggs & Stratton 498030

Idle Mixture Kit
(Superseded to 794176)

$21.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

Note: Included in Carburetor Kit-Ref. 121.

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Idle Speed Kit

$10.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

Note: Included in Carburetor Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Kit-Ref. 121.

$6.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 231854

Seat-Inlet
(Superseded to 690577)

Note: Included in Carburetor Kit-Ref. 121.

$7.99

$

In Stock, Qty 17

0

108

Briggs & Stratton 224558

Valve-Choke
(Superseded to 690464)

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 232118

Jet-Main
(Superseded to 692408)

Note: Included in Carburetor Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 499153

Carburetor
(Superseded to 799727)

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Ref. 121.

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, Qty 11

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Kit-Ref. 121.

$4.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 495097

Choke Shaft Kit
(Superseded to 790905)

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 232117

Carburetor Nozzle
(Superseded to 692412)

Note: Included in Carburetor Kit-Ref. 121.

$30.99

$

In Stock, only 2 left!

0

186

Briggs & Stratton 493496

Connector-Fuel
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Gasket Set-Ref. 977.

$5.49

$

In Stock, Qty 17

0

355

Briggs & Stratton 281164

Washer
(Superseded to 692255)

Note: Included in Carburetor Kit-Ref. 121.

$5.49

$

In Stock, Qty 17

0

634

Briggs & Stratton 494453

Seal-Choke Shaft
(Superseded to 690801)

Note: Included in Carburetor Kit-Ref. 121.

$8.49

$

In Stock, only 1 left!

0

634A

Briggs & Stratton 494455

Seal-Choke Shaft
(Superseded to 690802)

Note: Included in Carburetor Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 262715

Friction Spring
(Superseded to 590931)

$5.49

$

In Stock, only 1 left!

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

789

Briggs & Stratton 497708

Wire Stop
(Superseded to 692037)

$35.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 497672

Solenoid
(Superseded to 692734)

$102.99

$

In Stock, Qty 8

0

975

Briggs & Stratton 495933

Bowl-Float

$10.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-Ref. 121.

$5.49

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

Usually ships in 2-12 days

0
