72-10BP01 (A-100) - Toro 36" Lawn Tractor (1977) HITCHES AND LIFT LINKAGE Parts Diagram

36" Lawn Tractor

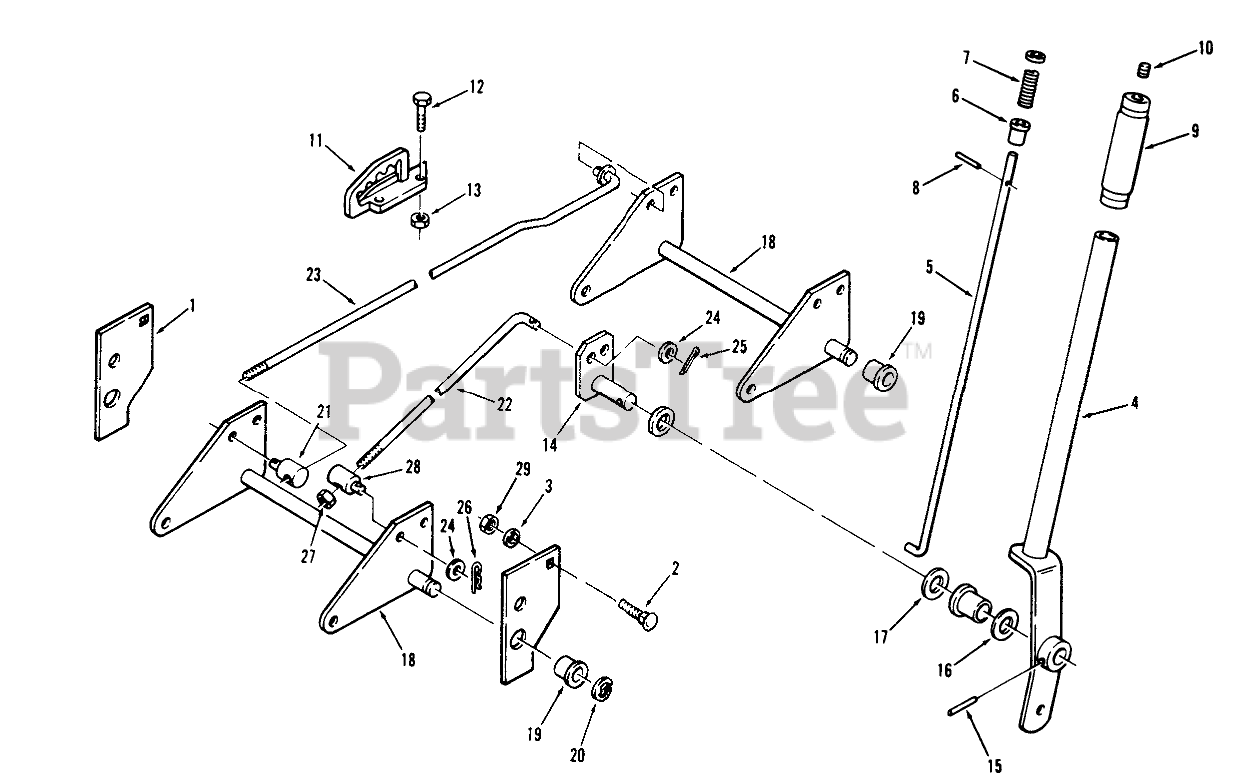

HITCHES AND LIFT LINKAGE Parts Diagram

  • Title

1

Toro 105482

Front Hitch Plate

$

$

Not available

2

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

3

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

4

Toro 8124

Lift Lever

$

$

Not available

5

Toro 8129

ROD-LATCH LIFT LEVER

$

$

Not available

6

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

7

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

8

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 4 left!

0

9

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

10

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

11

Toro 103363

Height Control Quadrant

$

$

Not available

12

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

13

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

14

Toro 103377

Assy-Lift Arm

$

$

Currently unavailable

15

Toro 933216

PIN-ROLL, SPIROL

$2.99

$

In Stock, only 1 left!

0

16

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

18

Toro 105484

Assy-Lift Bell Crank

$

$

Not available

19

Toro 6230

BRONZE BUSHING

$

$

Not available

20

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0

21

Toro 101161

TRUNNION

$

$

Not available

22

Toro 103446

LIFT ROD-FRONT

$59.99

$

Usually ships in 3-6 days

0

23

Toro 105536

Lift Rod-Rear

$

$

Currently unavailable

24

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

25

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

26

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

27

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

28

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 7

0

29

Toro 91511

Eslok Nut 1/4-20

$

$

Currently unavailable
