72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) CLUTCH AND BRAKE-GEAR Parts Diagram

Yard Tractor

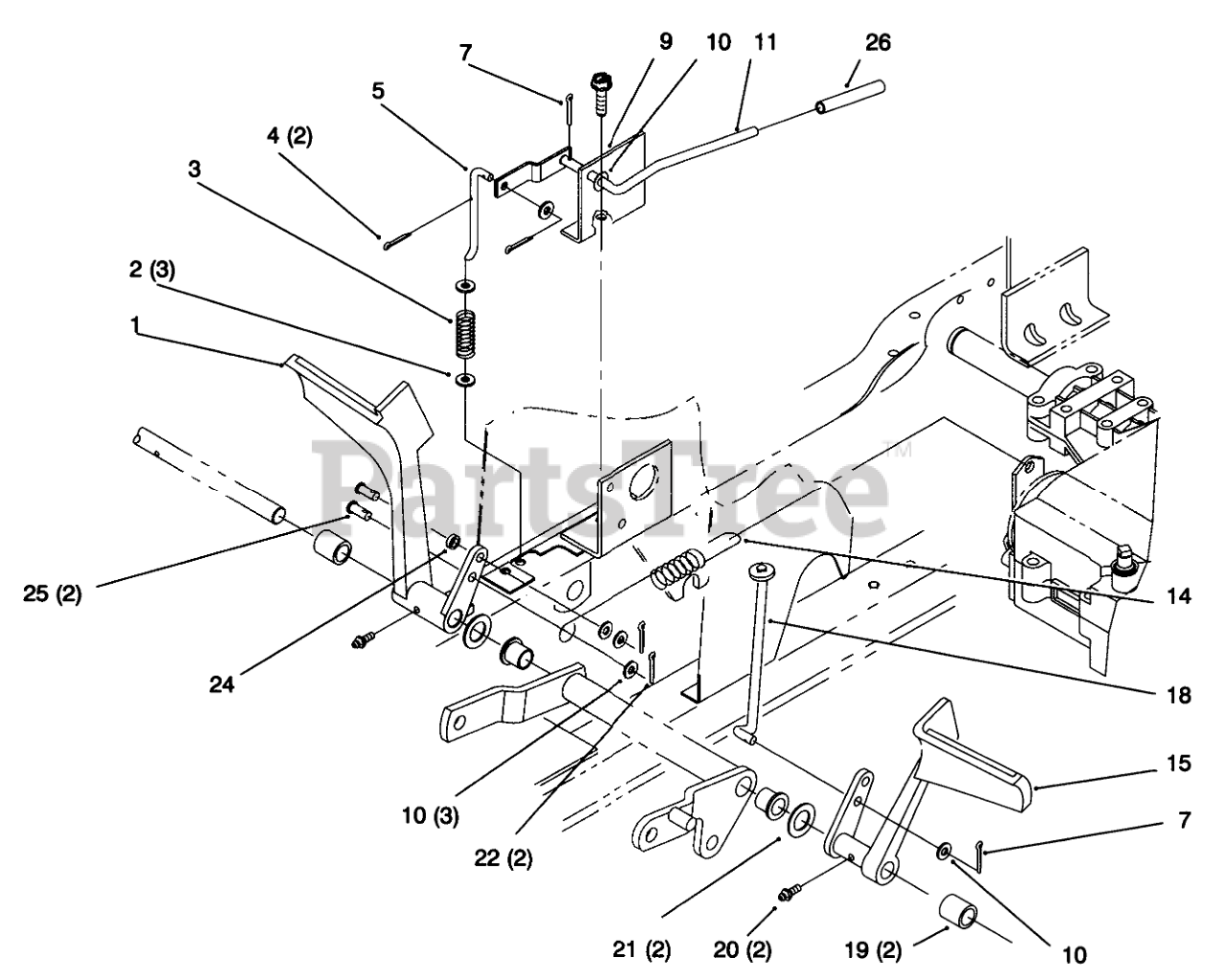

CLUTCH AND BRAKE-GEAR Parts Diagram

  • Title

1

Toro 93-3228-03

Pedal-Brake (Only On: 72042, 72062)
(Superseded to 93-3228)

$143.99

$

Usually ships in 3-6 days

0

2

Toro 3256-22

Washer-Flat (Only On: 72042, 72062)

$0.99

$

In Stock, Qty 20+

0

3

Toro 92-7116

Spring-Compression (Only On: 72042, 72062)

$

$

Not available

4

Toro 3272-2

Pin-Cotter (Only On: 72042, 72062)

$2.99

$

In Stock, only 2 left!

0

5

Toro 92-7019

Rod-Park Brake (Only On: 72042, 72062)

$

$

Not available

7

Toro 3272-6

Pin-Cotter (Only On: 72042, 72062)

$0.99

$

In Stock, Qty 20+

0

9

Toro 92-6929-03

Bracket-Parking Brake (Only On: 72042, 72062)

$

$

Not available

10

Toro 3256-23

Washer-Flat (Only On: 72042, 72062)

$2.49

$

In Stock, Qty 20+

0

11

Toro 92-6931

Lever-Parking Brake (Only On: 72042, 72062)

$

$

Not available

14

Toro 92-6944

Spring-Extension (Only On: 72042, 72062)

$

$

Not available

15

Toro 78-8180-03

Pedal-Clutch (Only On: 72042, 72062)

$

$

Not available

18

Toro 92-6924

Rod-Clutch (Only On: 72042, 72062)

$

$

Not available

19

Toro 110015

Spacer (Only On: 72042, 72062)

$

$

Not available

20

Toro 302-5

Fitting-Grease (Only On: 72042, 72062)

$3.49

$

In Stock, Qty 19

0

21

Toro 111712

Washer-Wave (Only On: 72042, 72062)

$

$

Not available

22

Toro 3272-10

Pin-Cotter (Only On: 72042, 72062)

$1.49

$

In Stock, Qty 20+

0

24

Toro 92-7115-03

Spacer (Only On: 72042, 72062)

$

$

Not available

25

Toro 283-62

Pin-Clevis (Only On: 72042, 72062)

$2.49

$

In Stock, Qty 15

0

26

Toro 92-7009

Grip-Parking Brake (Only On: 72042, 72062)

$1.99

$

Usually ships in 3-6 days

0
