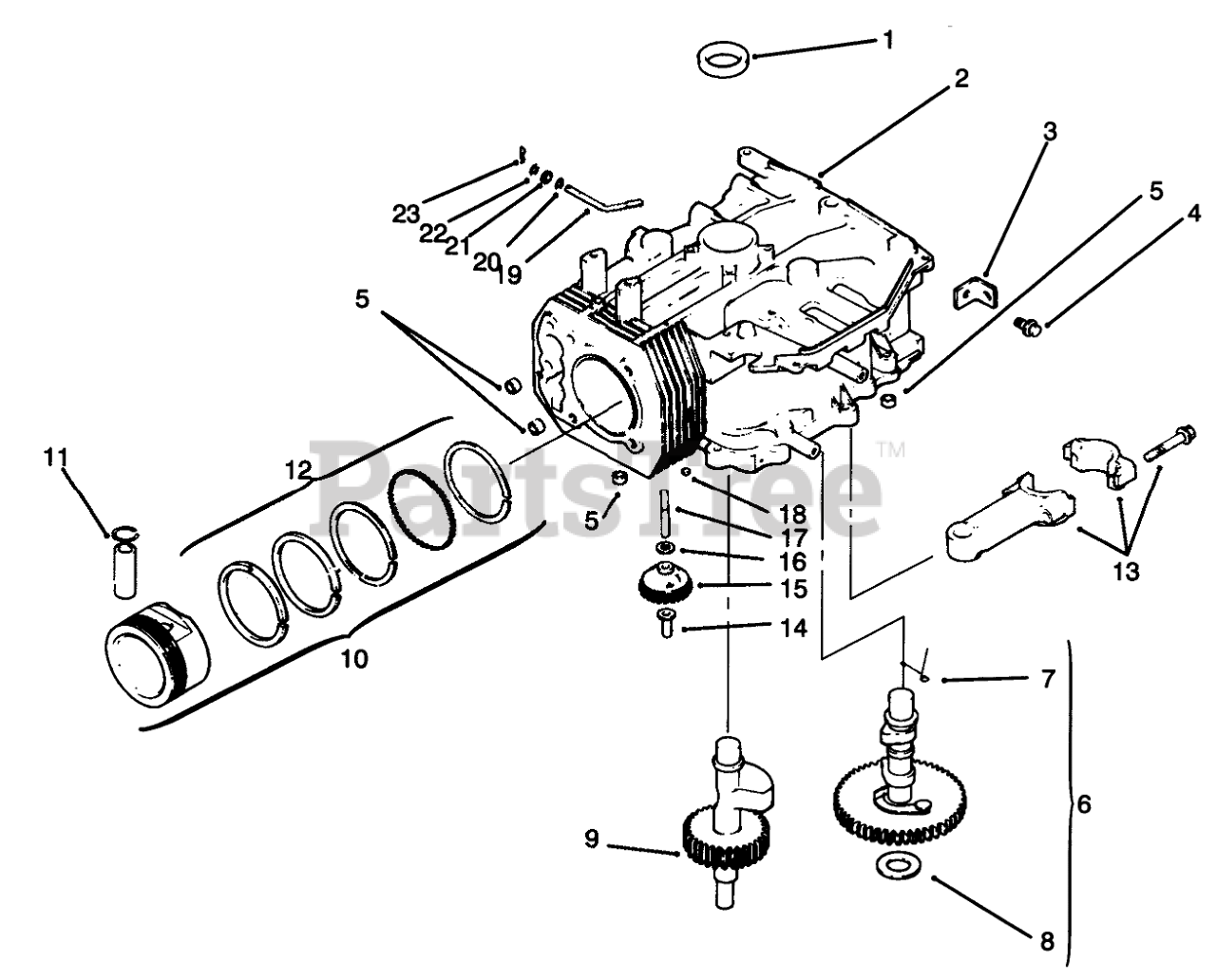

72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) CRANKCASE Parts Diagram

Yard Tractor

CRANKCASE Parts Diagram

  • Title

1

1203203

Seal-Crankshaft (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

2

12 522 01

Block-Short (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available

3

1244502

Strap-Lifting (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

4

Toro M-0839025

Screw M8x1.25x22 (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

5

1238003

Dowel-Locating (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

6

1275549

Kit-Camshaft INCL 7-8 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

7

1208918

Spring-Actuating (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

12 422 07

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

8

12 422 08

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

12 422 09

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

12 422 10

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

12 422 11

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

12 422 12

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

8

12 422 13

Shim-Camshaft A/R (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

9

1214419

Shaft-Balance (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

10

1287401

Piston ASM STD INCL 11-12 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

10

1287402

Piston ASM .25 INCL 11-12 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

10

1287403

Piston ASM .50 INCL 11-12 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

11

1201802

Retainer-Piston Pin (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210801

Ring Set STD (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210802

Ring Set .25 (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

12

1210803

Ring Set .50 (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

13

1206701

Connecting Rod STD (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

13

1206702

Connecting Rod .25 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

14

12 380 01

Pin-Governor Regulating (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

15

1204305

Gear-Governor ASM (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

16

Toro SM-0631005

Washer-Governor (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

17

12 144 02

Shaft-Governor Gear (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

18

52 139 09

Plug-Cup (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

19

1214401

Shaft-Governor Cross (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

20

Toro SM-0631015

Washer-Governor Shaft (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

21

1203201

Seal-Governor Shaft (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

22

Toro X-25-102

Washer-Flat (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

23

1238004

Pin-Governor Hitch (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

1272201

Gasket Set (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available
