72042 (264-6) - Toro Yard Tractor (SN: 069000001 - 069999999) (1996) FUEL SYSTEM Parts Diagram

Yard Tractor

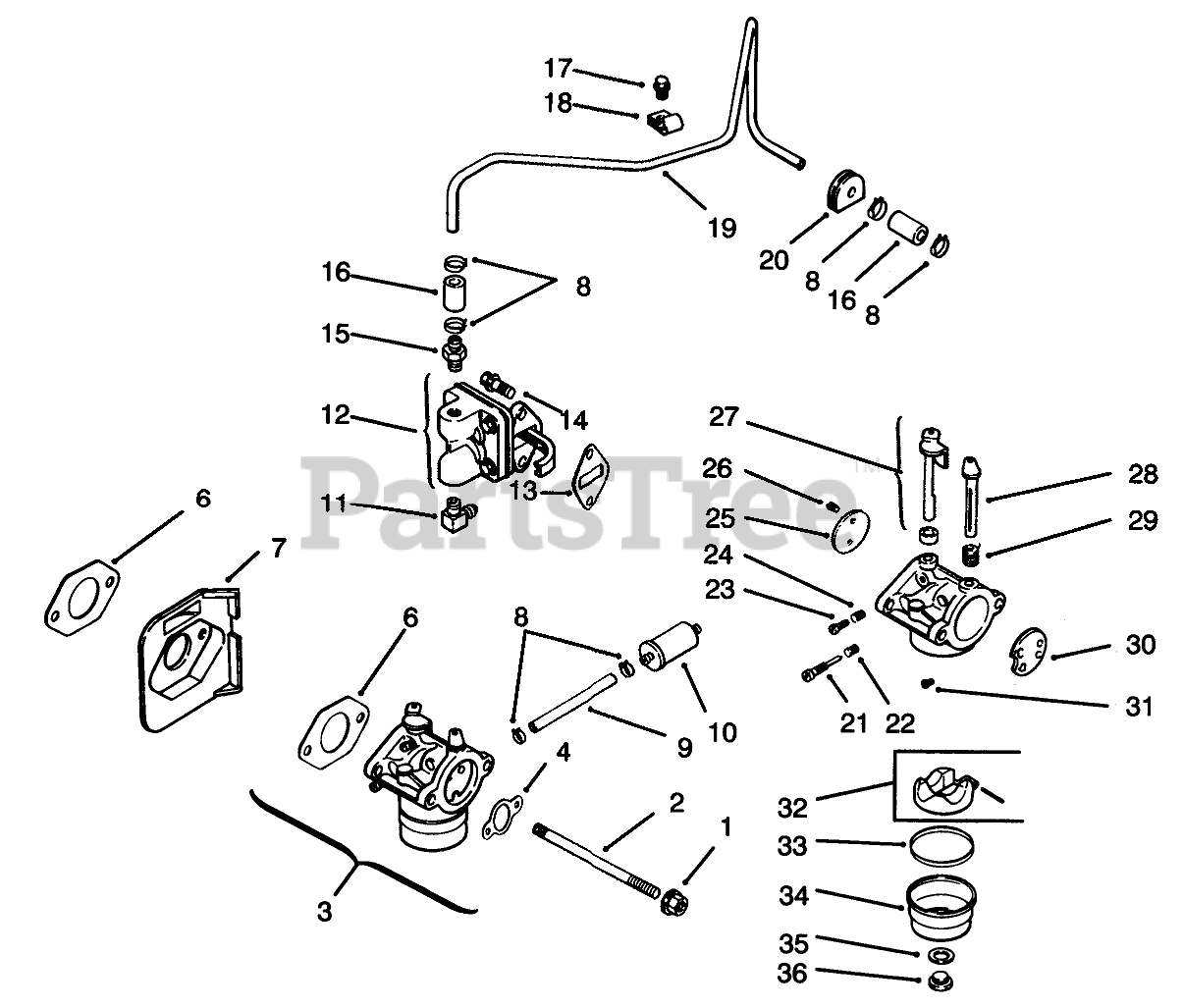

FUEL SYSTEM Parts Diagram

  • Title

1

Kohler SM-0641060

Nut M6x1.0 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

2

Kohler M-0629122

Stud M6x1.0x110 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-629122)

$5.99

$

Usually ships in 2-5 days

0

3

1285301

Kit-Carb INCL 4/6/21-36 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

4

1204102

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

6

1204101

Gasket-Carburetor (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

7

1226501

Deflector-Heat (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

8

Kohler X-426-9

Clamp-Hose (Only On: 72042, 72043, 72062, 72063)
(Superseded to X-426-9-S)

$4.99

$

In Stock, Qty 6

0

9

2535302

Line-Fuel 3" (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

10

2505002

Filter-Fuel (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

11

Kohler 25 155 02

Connector-90 DEG (Only On: 72042, 72043, 72062, 72063)
(Superseded to 25 155 02-S)

$14.99

$

Usually ships in 2-5 days

0

12

1255901

Kit-Pump INCL 13-14 (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

13

2504109

Gasket-Fuel Pump (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

14

Kohler SM-0645020

Screw M6x1.0x20 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-645020)

Note: Included in a service kit or in an assembly

$2.49

$

In Stock, Qty 20+

0

15

Kohler X-380-1

Connector-Straight (Only On: 72042, 72043, 72062, 72063)
(Superseded to X-380-1-S)

$3.99

$

Usually ships in 2-5 days

0

16

1235301

Line-Fuel 1.25 Inch (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

17

Kohler M-0545010

Screw M5x0.8x10 (Only On: 72042, 72043, 72062, 72063)
(Superseded to M-545010)

$4.49

$

In Stock, Qty 13

0

18

1215401

Clamp-Fuel Line (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

19

1212301

Line-Fuel (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

20

1231301

Grommet (Only On: 72042, 72043, 72062, 72063)

$

$

Not available

21

1236801

Needle-Idle Fuel Adjust (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

22

1208909

Spring-Idle Fuel (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

23

1208604

Screw-Idle Speed Adjust (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

24

1208909

Spring-Idle Fuel (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

25

1214603

Plate-Throttle (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

26

2508627

Screw-Throttle Plate (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

27

1214409

Shaft-W/Lever & Seal (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

28

1214408

Shaft-Choke (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

29

1208910

Spring-Choke Return (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

30

1214602

Plate-Choke (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

31

1233709

Jet-Main (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

32

1275702

Kit-Float (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

33

1204105

Gasket-Bowl (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

34

1210401

Bowl-Fuel (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

35

1204106

Gasket-Bowl Screw (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

36

1208605

Screw-Fuel Bowl (Only On: 72042, 72043, 72062, 72063)

Note: Included in a service kit or in an assembly

$

$

Not available

1204101

Gasket-Carburetor (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available

1275509

Kit-High Altitude (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available

1275701

Kit-Carburetor Repair (Only On: 72042, 72043, 72062, 72063)

Note: Not illustrated

$

$

Not available
